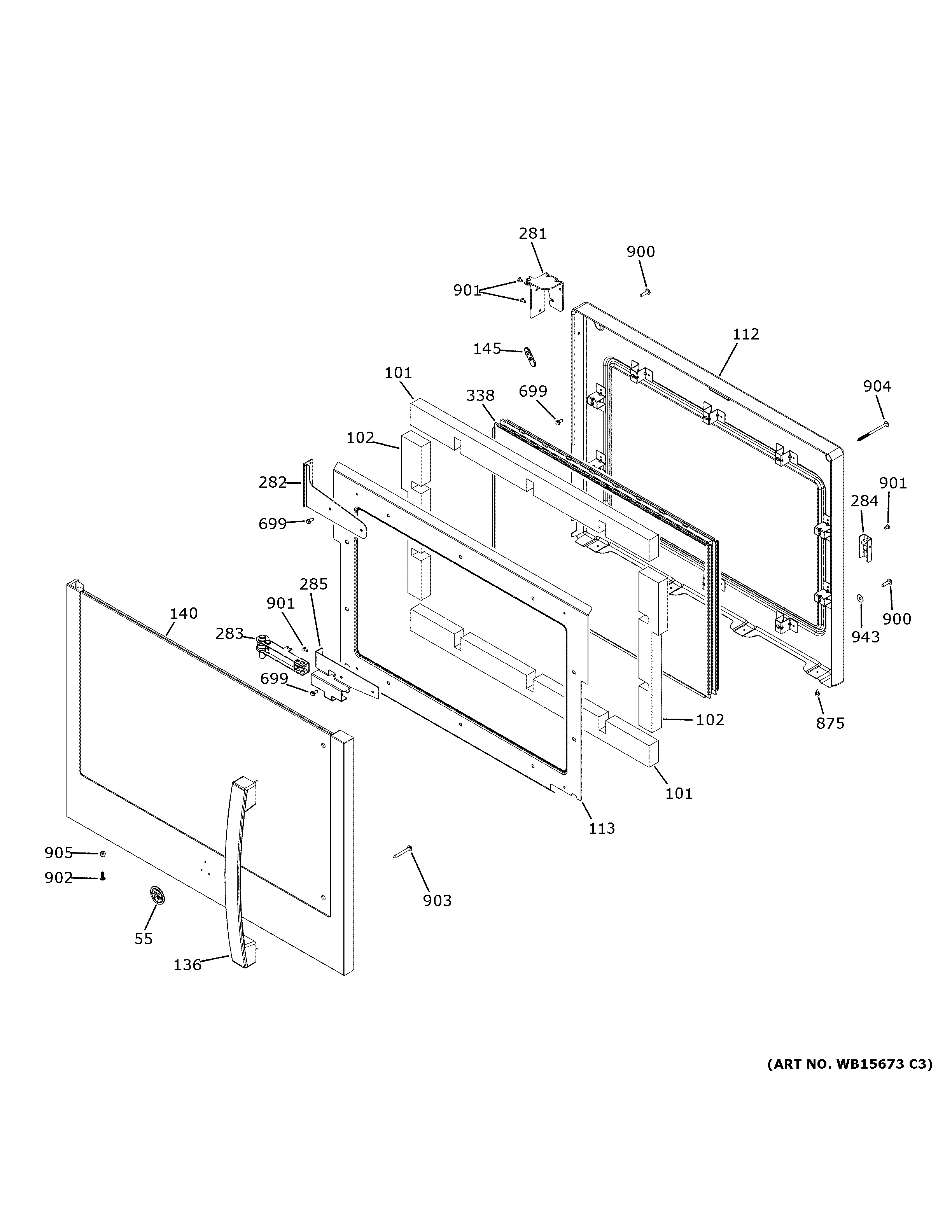

PTS700LSN4SS DOOR

Products

Position	Product
55	WB02X29479 GE Oven Badge Assembly
101	INSULATION DR TOP
102	WB35X31513 GE Door Side Insulation
112	OVEN DOOR LINER
113	DOOR INSULATION RETAINER
136	WB15X34645 GE Stainless Handle
140	STAINLESS OUTER LEFT HINGE DOOR
145	WB02X37056 GE Door Liner Plug
281	HINGE UPR LH
282	HINGE UPPER LEFT BRACKET
283	WB10X34643 GE Left Door Hinge Closure
284	WB26X34732 GE Roller
285	SLEEVE LEFT LOWER HINGE
338	WB56X27662 GE Window Pack Assembly
699	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
900	WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
901	WB01T10012 GE Oven Screw
902	WR01X24363 GE Scr 8-18 Bolt 5/8 SS
903	WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
904	SCREW 10-32 CA TRT15 3.06
905	SPACER LINK
943	WB02X40586 GE Washer Black
