PTS9000BN2TS CONTROL PANEL

PTS9000BN2TS CONTROL PANEL

Written by

in

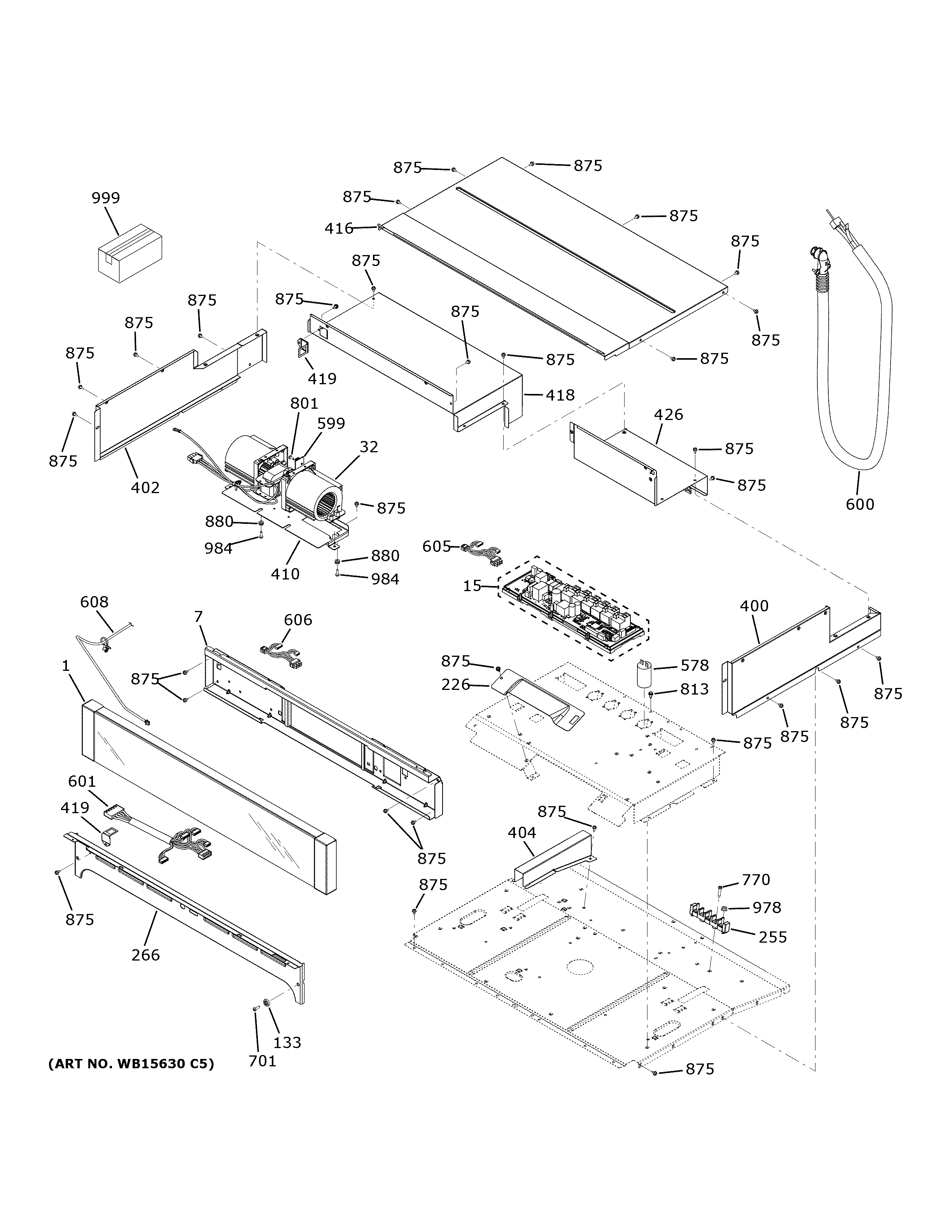

PTS9000BN2TS CONTROL PANEL

Products

PositionProduct
1WB56X40086 GE Black Stainless Control Panel
7WB07X32471 GE Oven Control Panel Mounting BRack
15WB27X43212 GE Control RC17 (Flashed)
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266WB07X32831 GE Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
419WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18X35246 GE Conduit Wire SWO
600WB18T10580 GE Oven 6 FT Optional Conduit
601WB18X32919 GE COM Wire Harness
605WB18X32920 GE Wire Main Harness
606LATCH COM WIRE HARNESS
608WB18X35000 GE Camera Wire Harness
701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTRUCTION INSTALL
999PM MINI MANUAL AND WIRING
999PM INSERT INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
