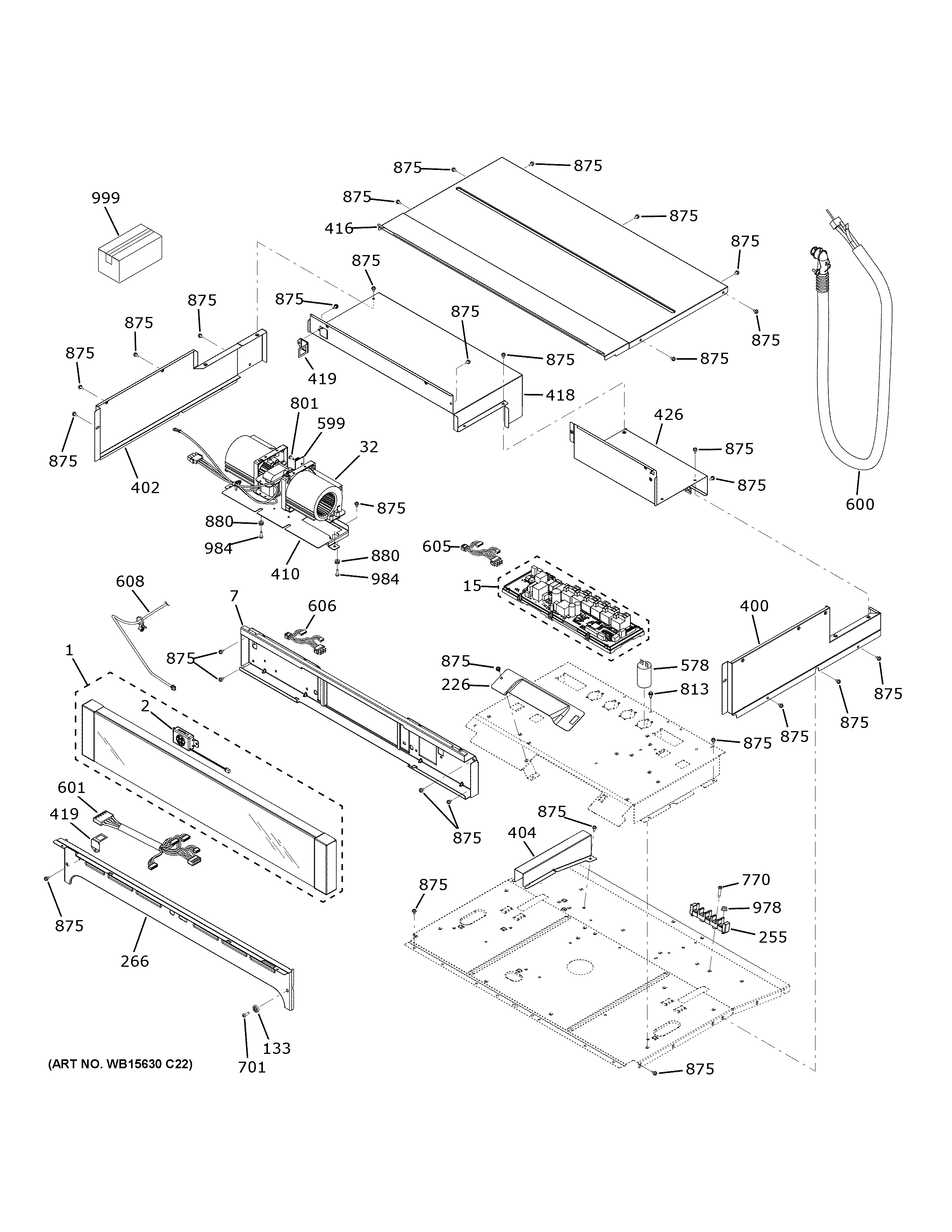

PTS9000SN4SS CONTROL PANELadmin2025-04-26T09:54:52+00:00PTS9000SN4SS CONTROL PANEL ProductsPositionProduct1WB56X46846 GE Stainless Control Panel2WB27X33354 GE Speaker 70C 3W7WB07X32471 GE Oven Control Panel Mounting BRack15CONTROL RC17 (FLASHED)32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper226COVER LATCH ACCESS255WB17K10001 GE Oven Block Terminal266WB07X32831 GE Upper Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB24X32772 GE Top Rear Cover419WB24X33028 GE RJ45 Bracket426WB35T10273 GE Oven Rear Wire Cover578WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18T10580 GE Oven 6 FT Optional Conduit600WB18X35246 GE Conduit Wire SWO601WB18X32919 GE COM Wire Harness605WB18X32920 GE Wire Main Harness606LATCH COM WIRE HARNESS608WB18X35000 GE Camera Wire Harness701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM MINI MANUAL AND WIRING999PM INSERT INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS
