PTS9200SN2SS LOWER DOOR

PTS9200SN2SS LOWER DOOR

Written by

in

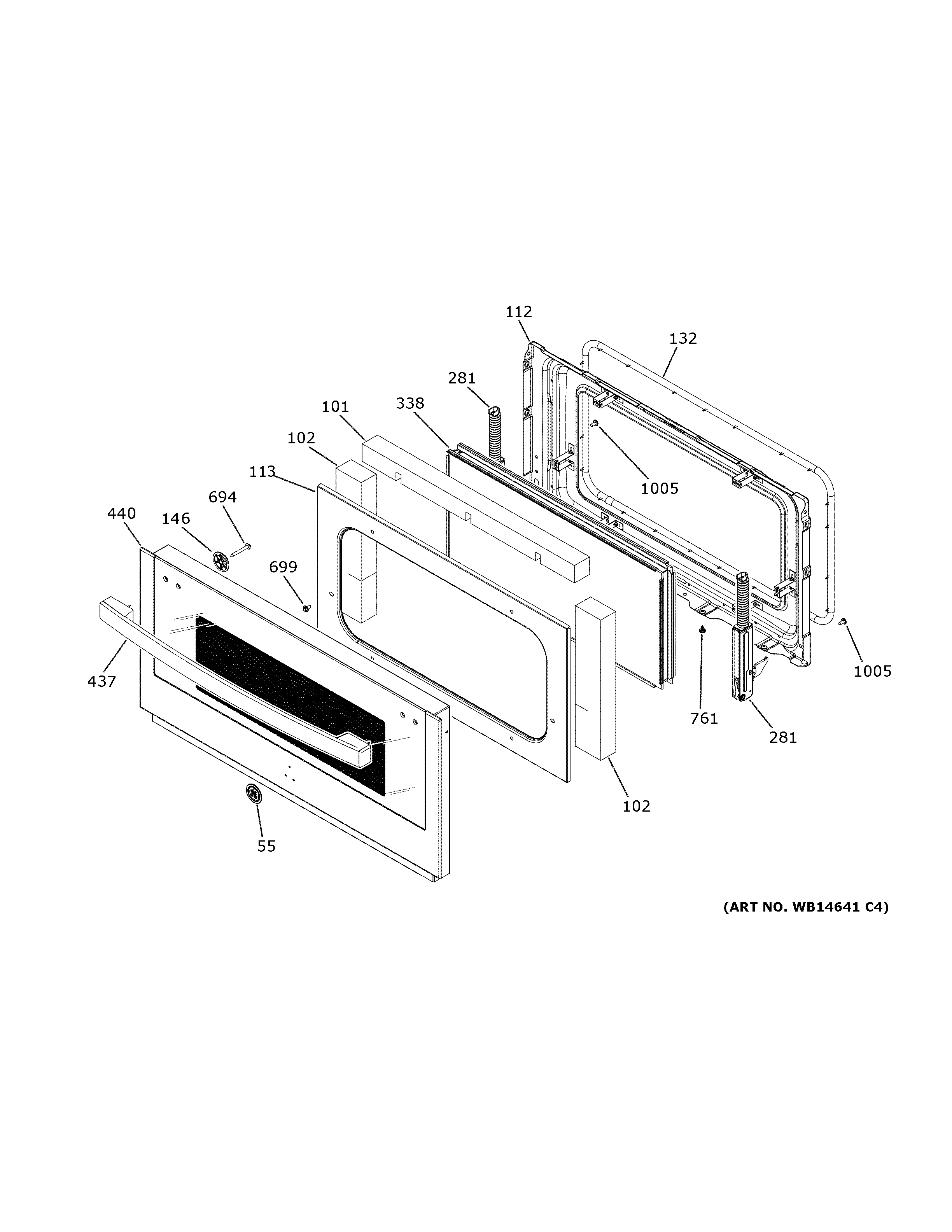

PTS9200SN2SS LOWER DOOR

Products

PositionProduct
55WB02X29479 GE Oven Badge Assembly
101WB35T10167 GE Oven Door Top Insulation Up
102WB35T10198 GE Oven Side Insulation
112WB56X27915 GE Oven Lower Door Liner Assembly
113WB02T10442 GE Oven Bottom Door Insulation Retainer
132WB35X27918 GE Oven Door Gasket
146SPACER DOOR HANDLE
281WB10X30496 GE Door Hinge Right
281WB10X30497 GE Oven Left Door Hinge
338WB56X27914 GE Window Pack Assembly
437WB15X34710 GE Stainless Handle Profile
440GLASS DOOR AND FRAME
694WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
699WB1M1 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
1005WB01T10008 GE Oven Screw 10-32
