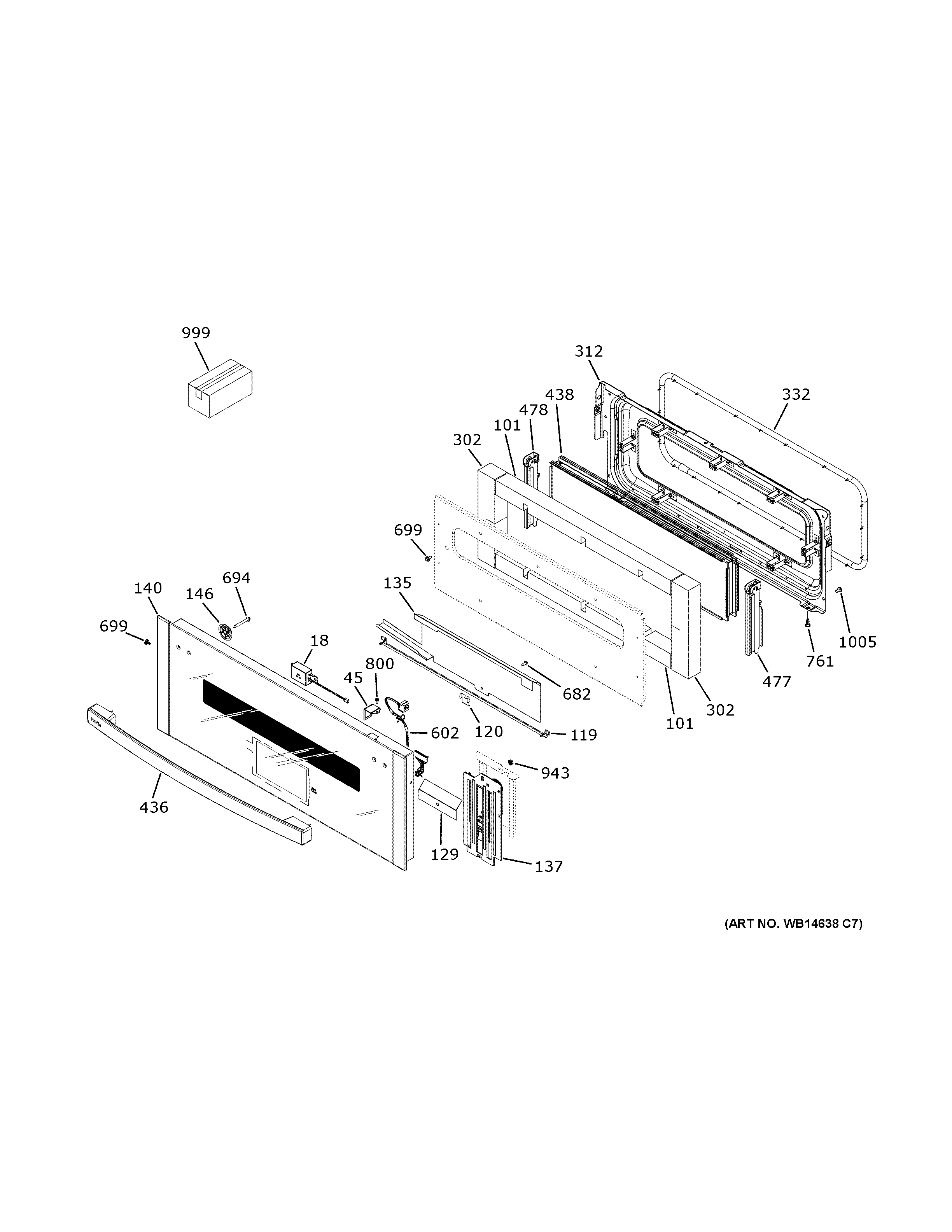

PTS9200SN3SS CONTROL PANEL & UPPER DOORadmin2025-04-26T09:54:41+00:00PTS9200SN3SS CONTROL PANEL & UPPER DOOR ProductsPositionProduct18WB27X33354 GE Speaker 70C 3W45WB24X33028 GE RJ45 Bracket101WB35T10167 GE Oven Door Top Insulation Up119WB02T10444 GE Oven Door Wiper120WB09T10012 GE Wiper Spring129COVER SLIDER TOP135COVER TOUCH BOARD137WB63T10143 GE Oven Base Slider Assembly140WB56X37086 GE Upper Door LCD Control146SPACER DOOR HANDLE302WB35T10168 GE Oven Upper Side Insulation Door312WB63X20011 GE Oven Upper Back Liner Assembly332WB35X27911 GE Oven Door Gasket436STAINLESS STEEL HANDLE AND ENDCAP438WB56T10244 GE Oven Upper Window Pack Assembly477WB10T10100 GE Oven Right-Hand Hinge Receiver478WB10T10101 GE Oven Upper Receiver Hinge602HARNESS SIGNAL DOOR682WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D694WB01T10132 GE Oven Hex Screw 10-32 1 3/4"699WB1M1 GE Oven Screw761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S800SCREW-BLACK943WB01T10074 GE Nut Keps 8-32 Special999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL999PM INSTALL INSTRUCTIONS1005WB01T10008 GE Oven Screw 10-32
