PTW605BPR0DG CONTROLS & BACKSPLASH

PTW605BPR0DG CONTROLS & BACKSPLASH

Written by

in

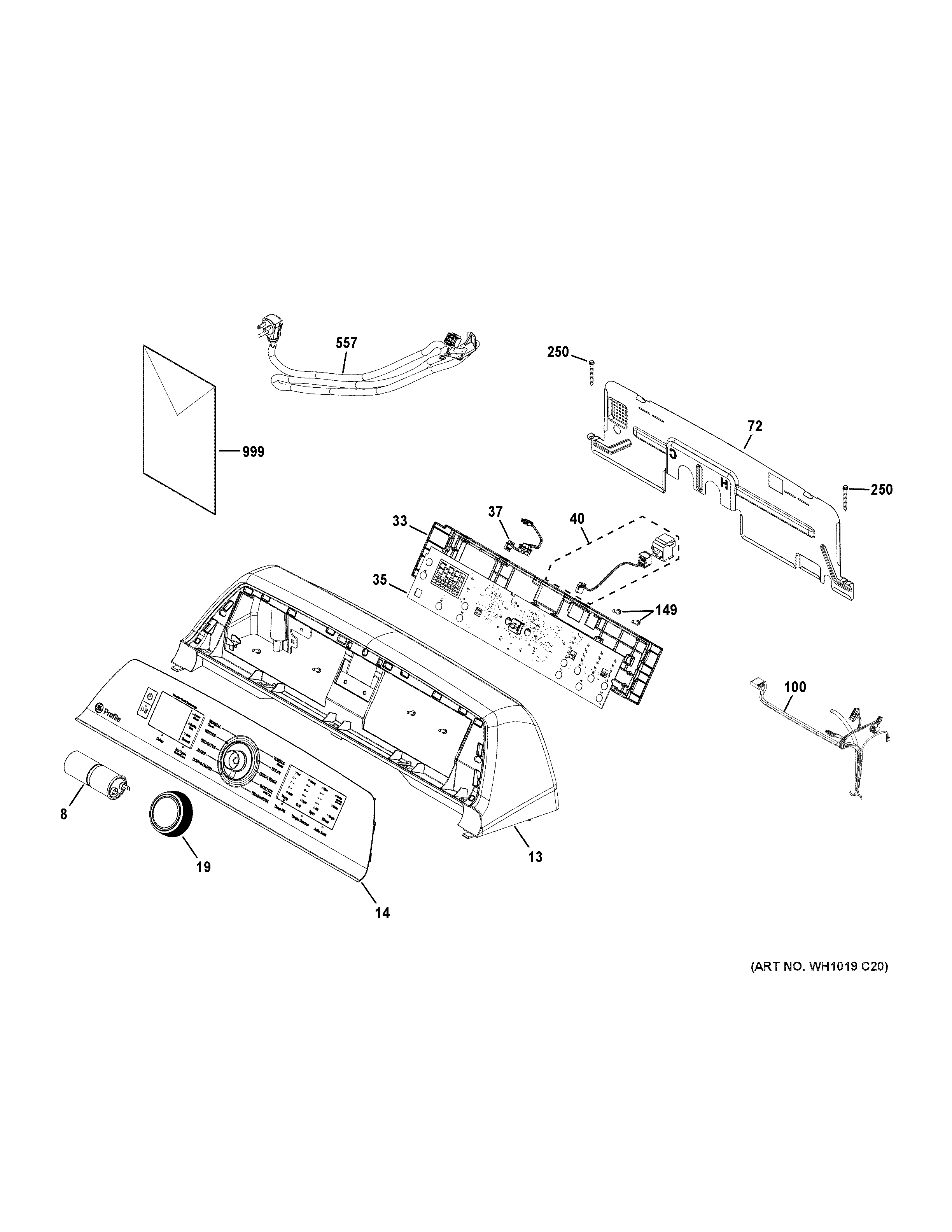

PTW605BPR0DG CONTROLS & BACKSPLASH

Products

PositionProduct
8WH12X27614 GE Capacitor Bracket Kit
13WH10X33078 GE Control Panel Housing Diamond
14WH10X32875 GE Control Facia with Knob Collar
19WH01X35377 GE Selector Knob
33WH10X33880 GE Control Panel Back Plate
35WH22X35537 GE User Interface Board TL Wash
37WH08X32889 GE User Interface Harness
40WH08X32890 GE RJ45 Pigtail Harness
72WH10X33318 GE Control Housing Rear Panel
100WH08X33737 GE Main Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
557WH08X28843 GE Power Cord
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
