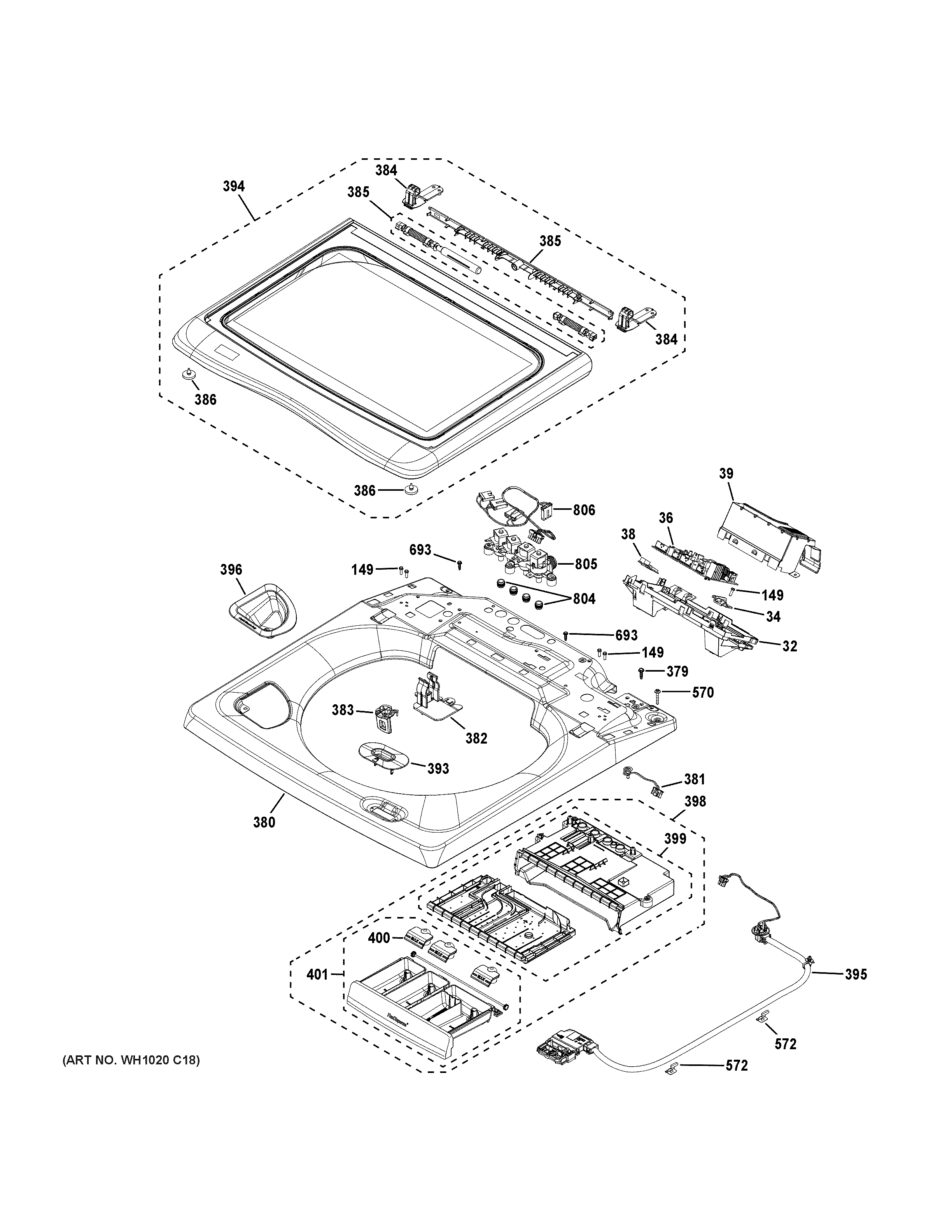

PTW705BPT0DG TOP PANEL & LID

PTW705BPT0DG TOP PANEL & LID

Written by

in

PTW705BPT0DG TOP PANEL & LID

Products

PositionProduct
32WH01X32865 GE Control Board Housing
34PCB BRACKET
36WH22X37297 GE Main Contol Board W/Instruc
38WIFI BOARD
39WH01X33959 GE Main Control Shield
149WR01X10196 GE Refrigerator Screw 8-18 HID02
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
380WH10X33077 GE Top Cover Diamond Gray
381WH04X29448 GE Thermostat
382WH01X33998 GE Pump Hole & Capacitor Bracket
383WH01X32866 GE Lid Lock Striker
384WH01X32861 GE Lid Stanchion
385WH01X35557 GE Washer Lid Hinge Profile
386LID BUMPER
393WH01X33877 GE Lid Lock Bezel
394WH10X35298 GE Washer Lid Glass Frame Assembly
395LID LOCK & HARNESS TL WASHER
396WH01X32879 GE Bleach Cup
398WH42X34998 GE Dispenser Box & Drawer Le Prof
399WH42X34778 GE Dishwasher Disp Box Shower Plate Gear
400WH01X32893 GE Siphon Cap
401WH42X34718 GE Dispenser Drawer Assembly Diam
570WH02X24116 GE Screw 10-32 GX 1.309 HWX
572WH02X24143 GE Lid Lock Harness Clip
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
804WH13X24094 GE Water Valve Seal
805WH13X26637 GE Washer Water Inlet Valve
806WH08X32886 GE Water Valve Harness
