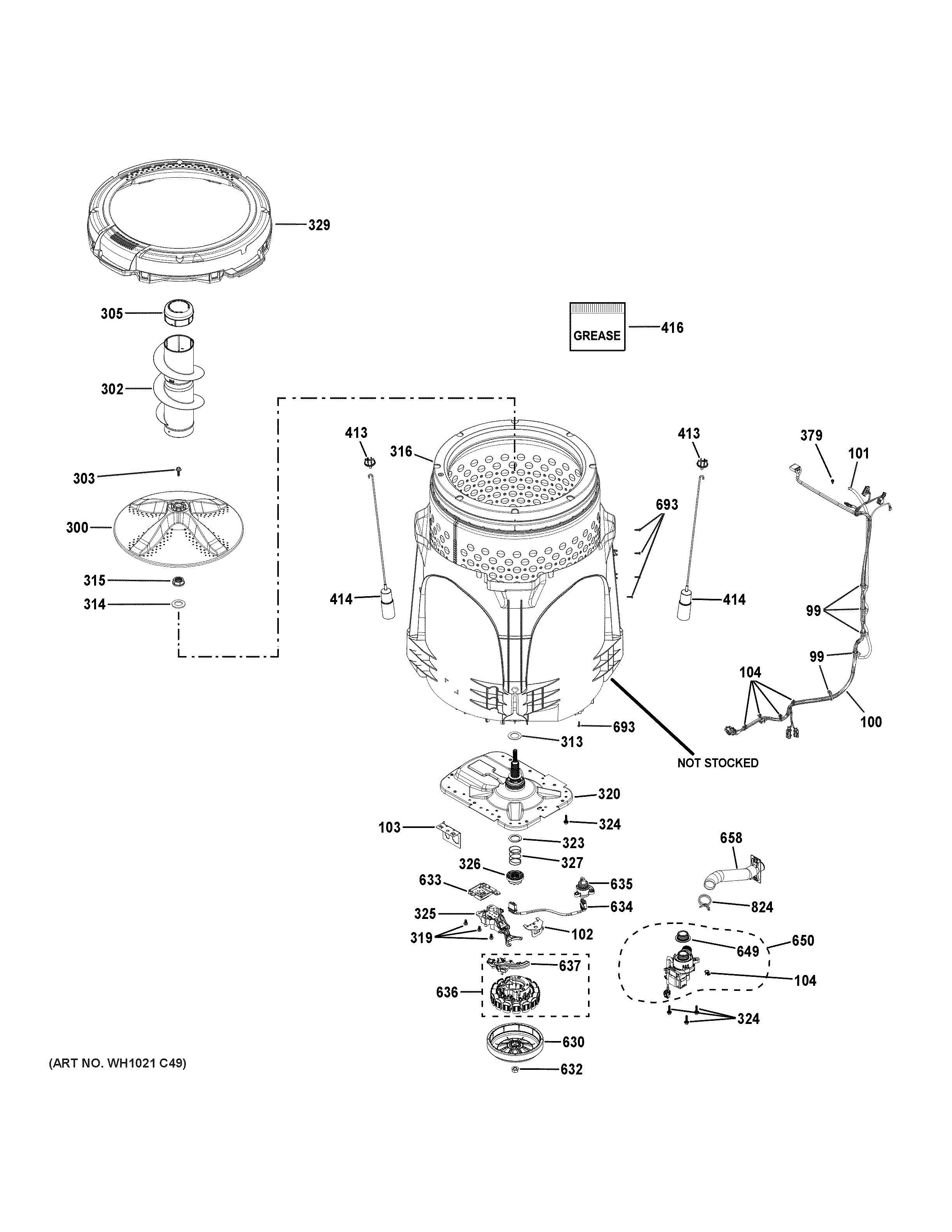

PTW705BST0WS TUB & MOTOR

PTW705BST0WS TUB & MOTOR

Written by

in

PTW705BST0WS TUB & MOTOR

Products

PositionProduct
99WH01X24190 GE Wire Tie Harness
100WH08X33962 GE Main Harness Dishwasher
101WH41X33837 GE Pressure Hose
102WH13X29044 GE Connector Bracket Left
103WH13X29045 GE Right Connector Bracket
104WH01X10704 GE Wire Tie
300IMPELLER/AUGER BASE
302WH43X33058 GE Auger Assembly
303SCR 1/4-20 2A SINULOC
305WH01X33057 GE Agitator Cap
313WH02X10364 GE Washer Hub
314WH01X26190 GE Washer Belleville Washer
315WH02X10363 GE Washer Spanner Nut
316WH21X33958 GE Basket 5.4
319WH02X24154 GE Screw 1/4-20 TT HXT
320WH03X34378 GE Bearing Retainer Platform
323WH01X29038 GE Washer Spring
324WH02X10376 GE Platform Screw
325MODE SHIFTER
326WH03X28951 GE Clutch Assembly
327SPRING CLUTCH
329WH10X33964 GE Tub Cover 5.4
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
413WH01X32883 GE Upper Ball Joint
414WH03X33961 GE Rod and Spring Assembly
416WH03X37017 GE Grease
630MOTOR ROTOR
632WH02X29041 GE Rotor Nut
633ACCELEROMETER
634WH08X33960 GE Turbidity Sensor Harness
635WH08X32891 GE Turbidity Sensor
636WH03X30257 GE Stator & Speed Sensor with Harness
637WH03X29043 GE Speed Sensor
649WH08X24179 GE Washer Drain Pump Seal
650PUMP DRAIN ASM
658WH41X24177 GE Washer Internal Drain Hose
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
824WH01X24494 GE Washer Clamp
