PVB98DT1BB CONTROL PANEL & COOKTOP

PVB98DT1BB CONTROL PANEL & COOKTOP

Written by

in

PVB98DT1BB CONTROL PANEL & COOKTOP

Products

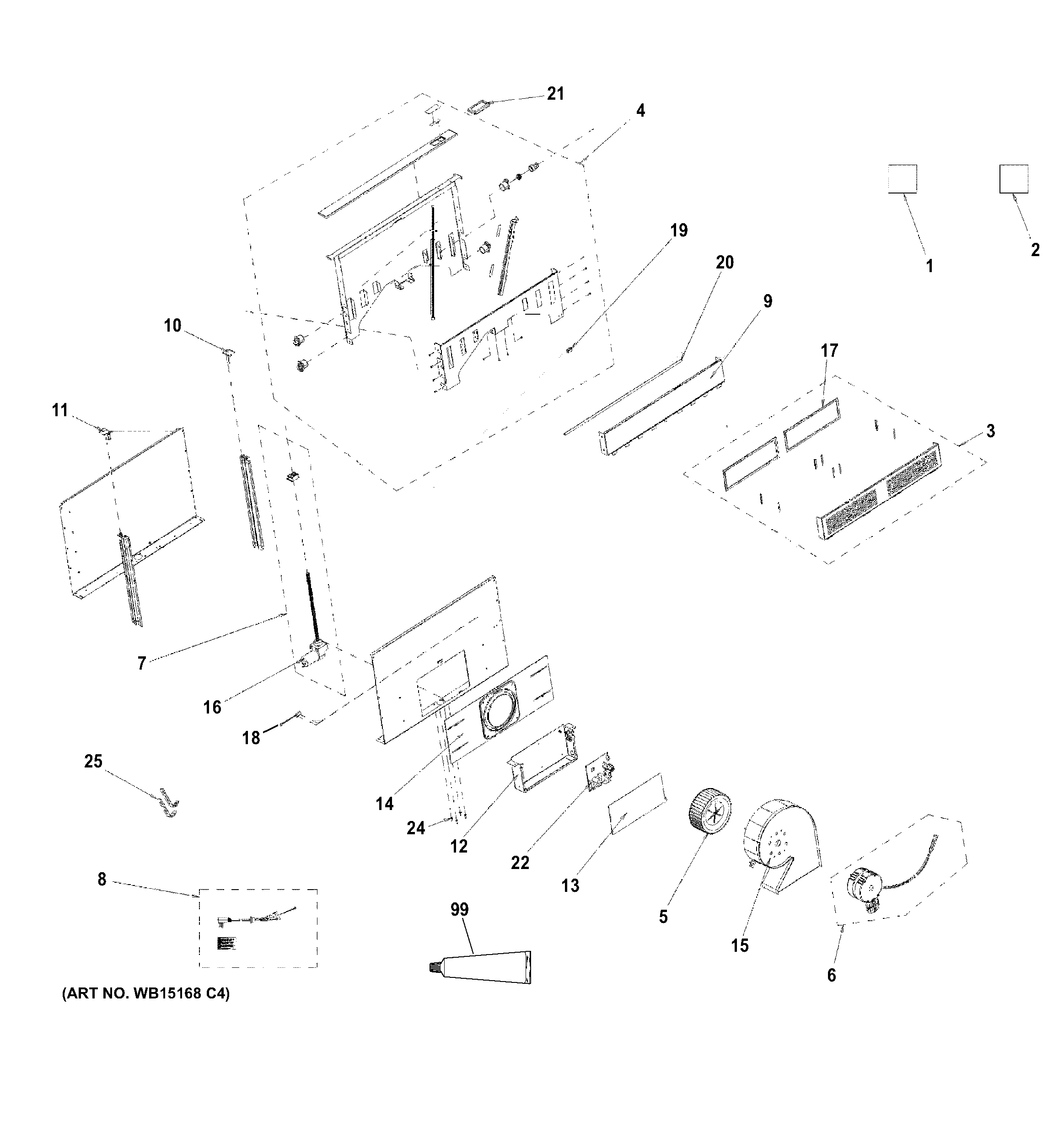

PositionProduct
1GEN 31-10728
2GEN 49-80573
3GEN WB02X11541
4GEN WB63X10087
5GEN WB26X10130
6GEN WB26X10222
7GEN WB63X10075
8WB18X10508 GE Oven Power Cord Assembly
9WB56X10984 GE Oven Snorkel Panel
10WB06X10913 GE Oven Trim Stop Bracket Right Hand
11GEN WB06X10914
12GEN WB06X10912
13WB06X10915 GE Hood Control Box Cover
14GEN WB07X11377
15GEN WB26X10129
16GEN WB63X10076
17GEN WB02X10940
18GEN WB24X10199
19GEN WB06X10916
20GEN WB06X10911
20WB06X10918 GE Slotted Front Seal 36"
21GEN WB24X10198
22GEN WB27X11175
24WB01X10269 GE Oven Screw 8-18 x 5/8 IHW
25WB02X10577 GE Oven Support Bracket Assembly
99WB49X10244 GE Oven Lubricant Snorkel Kit
