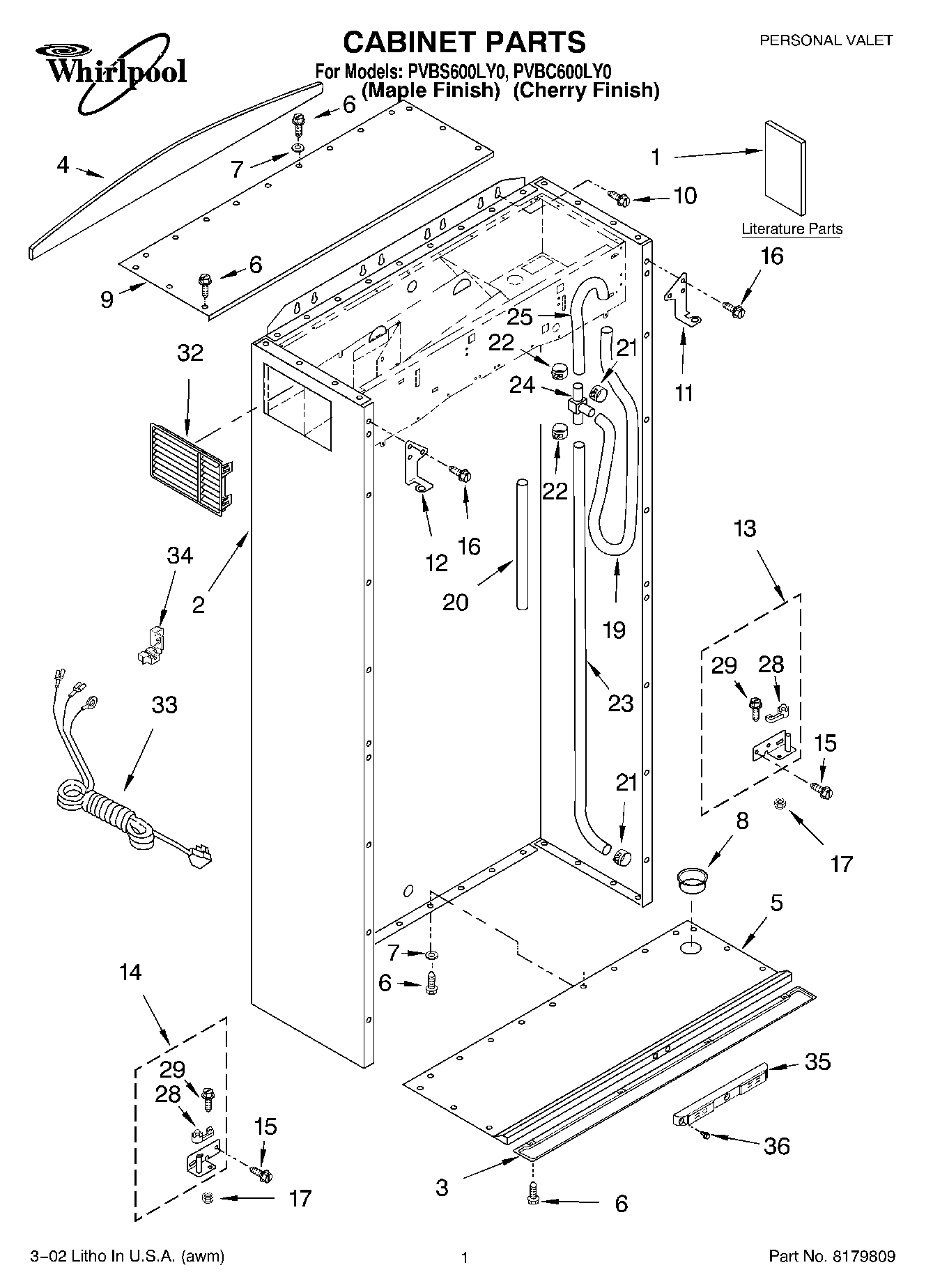

PVBC600LY0 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Use & Care Video)
2	Cabinet (Not Serviced)
3	Drip Tray
4	Cover, Bracket
5	Cabinet, Bottom
6	SCREW
7	Washer
8	Grommet, Power Cord
9	Top, Cabinet
10	WP487939 Whirlpool Refrigerator Nut
10	Bolt, 1/4 x 2
11	Hinge, Top Right
12	Hinge, Top Left
13	Hinge Assembly, Bottom Right
14	Hinge Assembly, Bottom Left
15	WP3400861 Whirlpool Screw
16	WP489464 Whirlpool Refrigerator Screw
17	Nut, Nylon (2)
18	SCREW
19	Hose, Compressor To Tee Fitting
20	Hose, Compressor to Inlet
21	WP596669 Whirlpool Hose Clamp
23	Hose, To Circulation Nozzle
24	Tee Fitting
25	Hose, Tee Fitting To Airdock
28	Cam, Hinge
29	Screw, 8-32 x 3/4
32	Grill
33	Power Cord
34	Strain Relief
35	Magnet Assembly
36	WP8281206 Whirlpool Refrigerator Screw
36	Pad, Cabinet Leveling
36	Bracket, Wall Mount
