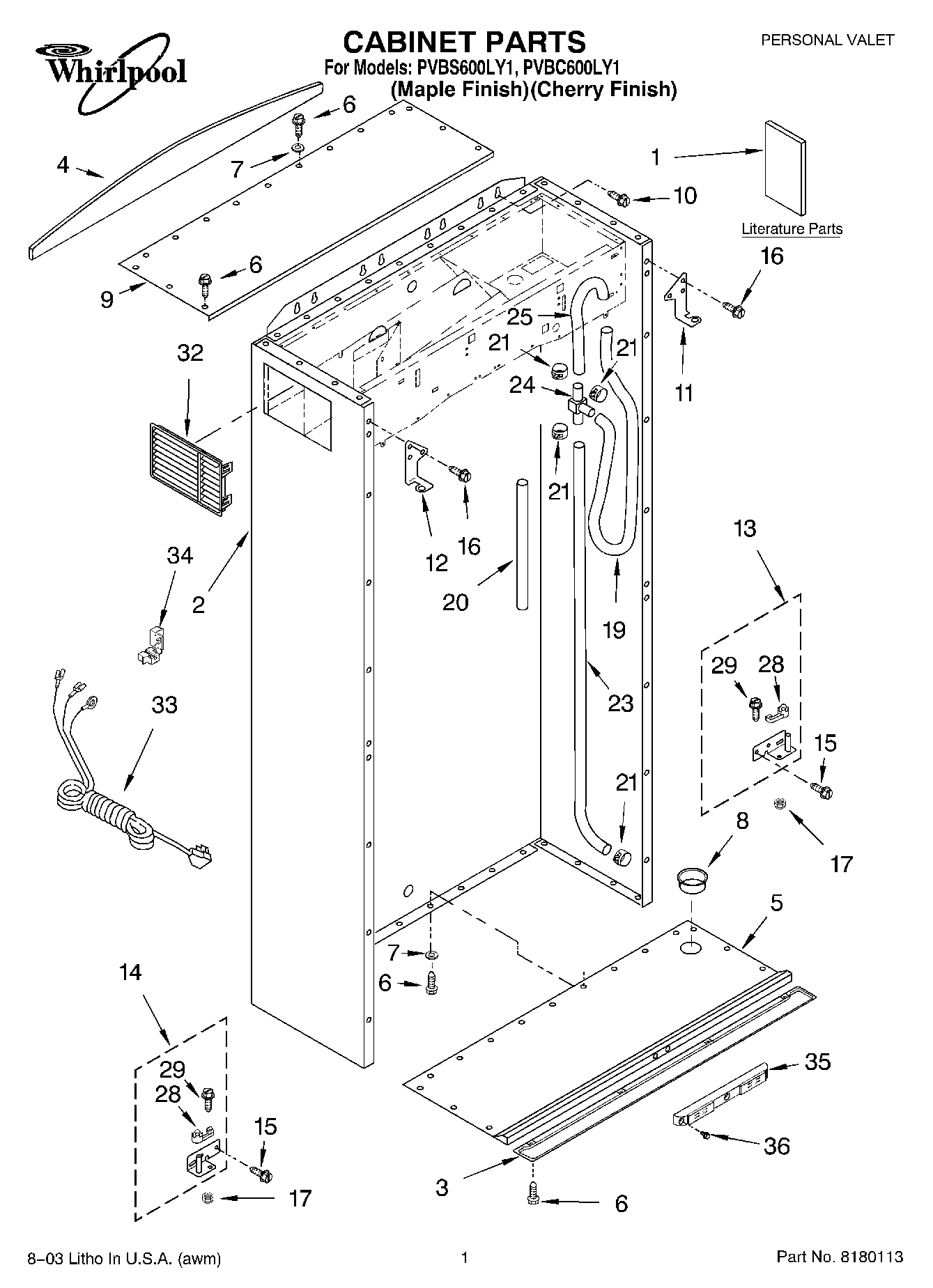

PVBC600LY1 01 – CABINET PARTSadmin2025-04-26T12:45:51+00:00PVBC600LY1 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Use & Care Video) |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | Cabinet (Not Serviced) |
| 3 | Drip Tray |
| 4 | Cover, Bracket |
| 5 | Cabinet, Bottom |
| 6 | SCREW |
| 7 | Washer |
| 8 | Grommet, Power Cord |
| 9 | Top, Cabinet |
| 10 | WP487939 Whirlpool Refrigerator Nut |
| 10 | Bolt, 1/4 x 2 |
| 11 | Hinge, Top Right |
| 12 | Hinge, Top Left |
| 13 | Hinge Assembly, Bottom Right |
| 14 | Hinge Assembly, Bottom Left |
| 15 | WP3400861 Whirlpool Screw |
| 16 | WP489464 Whirlpool Refrigerator Screw |
| 17 | Nut, Nylon (2) |
| 18 | SCREW |
| 19 | Hose, Compressor To Tee Fitting |
| 20 | Inlet, Compressor Silencer |
| 21 | WP596669 Whirlpool Hose Clamp |
| 23 | Hose, Tee to Circulation Nozzle |
| 24 | Tee Fitting |
| 25 | Hose, Tee Fitting To Airdock |
| 28 | Cam, Hinge |
| 29 | Screw, 8-32 x 3/4 |
| 32 | Grill |
| 33 | Power Cord |
| 34 | Strain Relief |
| 35 | Magnet Assembly |
| 36 | Pad, Cabinet Leveling |
| 36 | Bracket, Wall Mount |
| 36 | WP8281206 Whirlpool Refrigerator Screw |
| 36 | FOLLOWING PARTS NOT ILLUSTRATED |
