PVBM600LY0 02 – LINER – Aparts

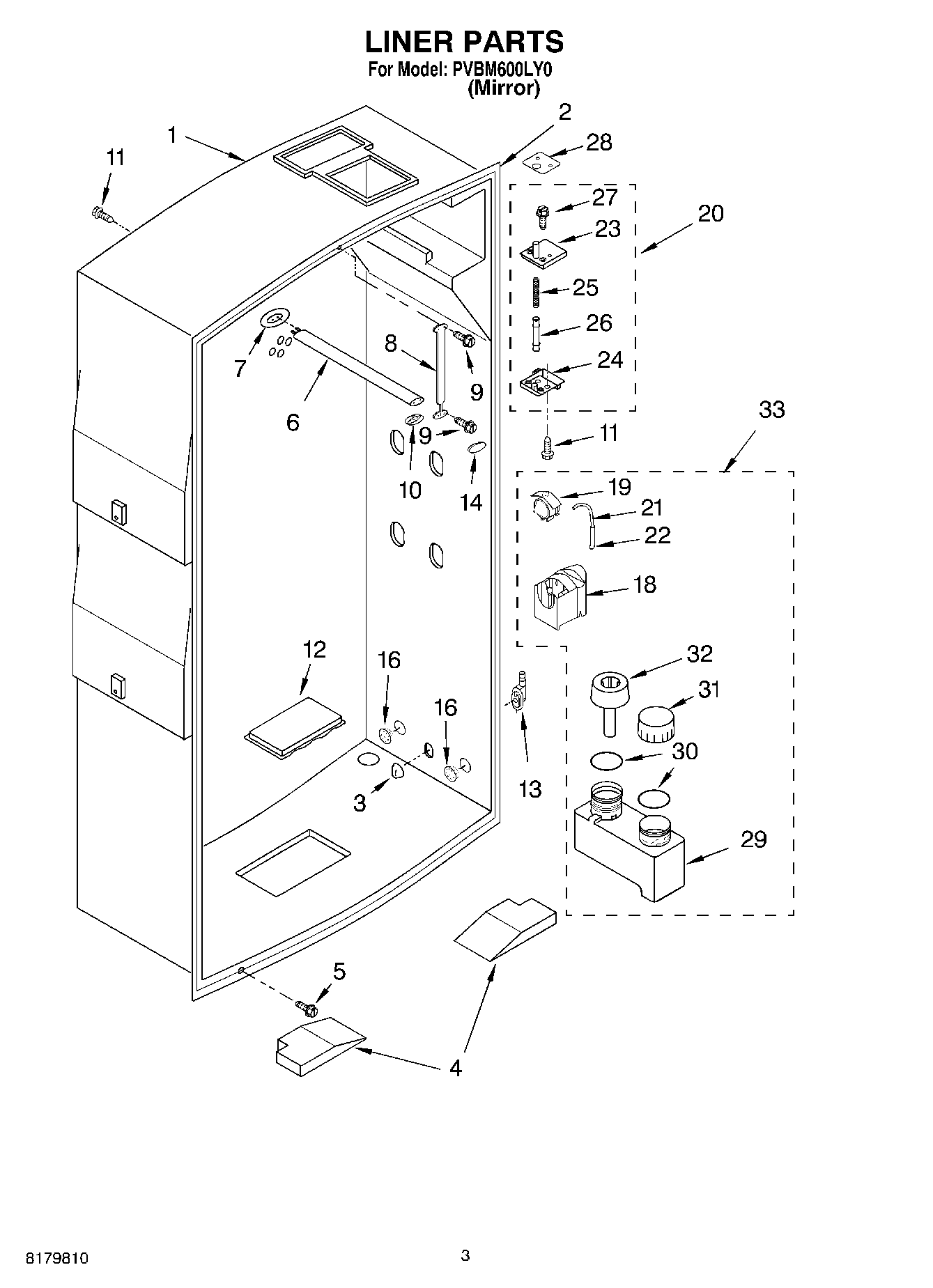

PVBM600LY0 02 – LINER

Products

Position	Product
1	Liner
2	Gasket
3	Circulation Nozzle
4	Support, Bottom
5	SCREW
6	Hanger Bar
7	Base, Hanger Bar
8	Support, Hanger Bar
9	SCREW
10	End Cap, Hanger Bar
11	Ground Screw
12	Grill, Sump
13	Base, Circulation Nozzle
14	Insert, End Cap
16	Plug, Vent (2)
18	COVER
19	Fluid Nozzle
20	Airdock Assembly
21	Siphon Tube
22	Fluid Filter
23	Base, Airdock
24	AIRDOCK
25	Spring
26	Air Fitting
27	SCREW
28	Gasket
29	Cartridge
30	O-Ring
31	Fill Cap
32	Cartridge Insert
33	Vertical (2)
33	Horizontal (2)
33	Cartridge Assembly
