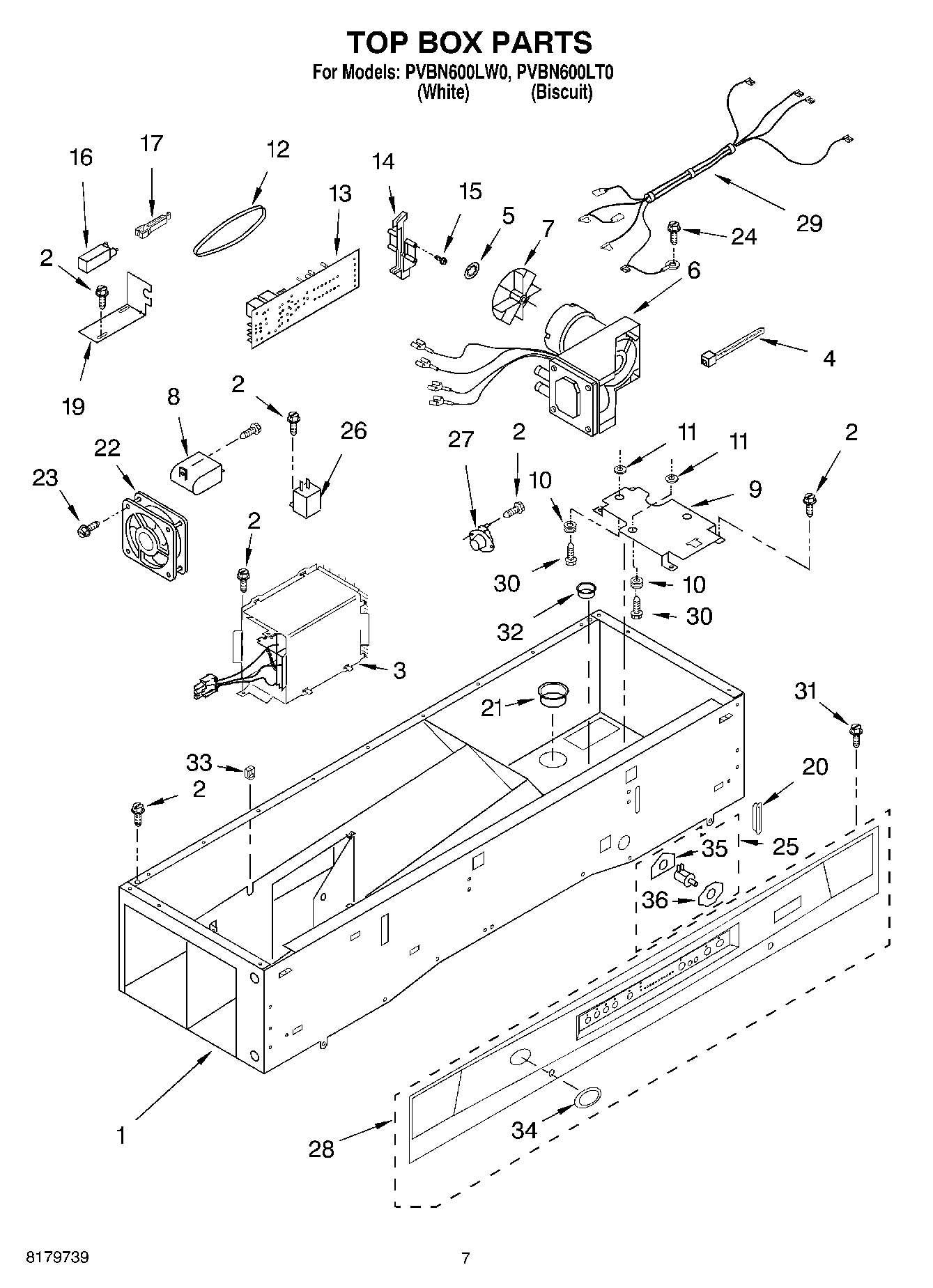

| 1 | Top Box (Not Serviced) |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Heater Assembly |
| 4 | Wire Tie |
| 5 | Clip, Fan Blade |
| 6 | Compressor (Includes Foam Baffle) |
| 7 | Fan Blade (Includes No. 5) |
| 8 | WP2201147 Whirlpool Refrigerator Capacitor |
| 9 | Compressor Mount |
| 10 | Isolator, Pump Motor (3) |
| 11 | 8526417 Whirlpool Washer |
| 12 | Band, EDPM |
| 13 | Control Board |
| 14 | Clip, Control Board (2) |
| 15 | SCREW |
| 16 | Wax Motor |
| 17 | Link, Wax Motor |
| 19 | Mount, Wax Motor |
| 20 | Grommet |
| 21 | Grommet (2 Inches) |
| 22 | Fan Motor |
| 23 | SCREW |
| 24 | Ground Screw |
| 25 | Interlock Switch |
| 26 | BUZZER |
| 27 | THERMISTOR |
| 28 | Control Panel (White) |
| 28 | Control Panel (Biscuit) |
| 29 | Wire Harness |
| 30 | SCREW |
| 31 | WP489464 Whirlpool Refrigerator Screw |
| 32 | Tubing, Grommet |
| 33 | Grommet, Wire |
| 34 | Badge, Assembly |
| 35 | Gasket, Switch |
| 36 | Wiper, Switch |
