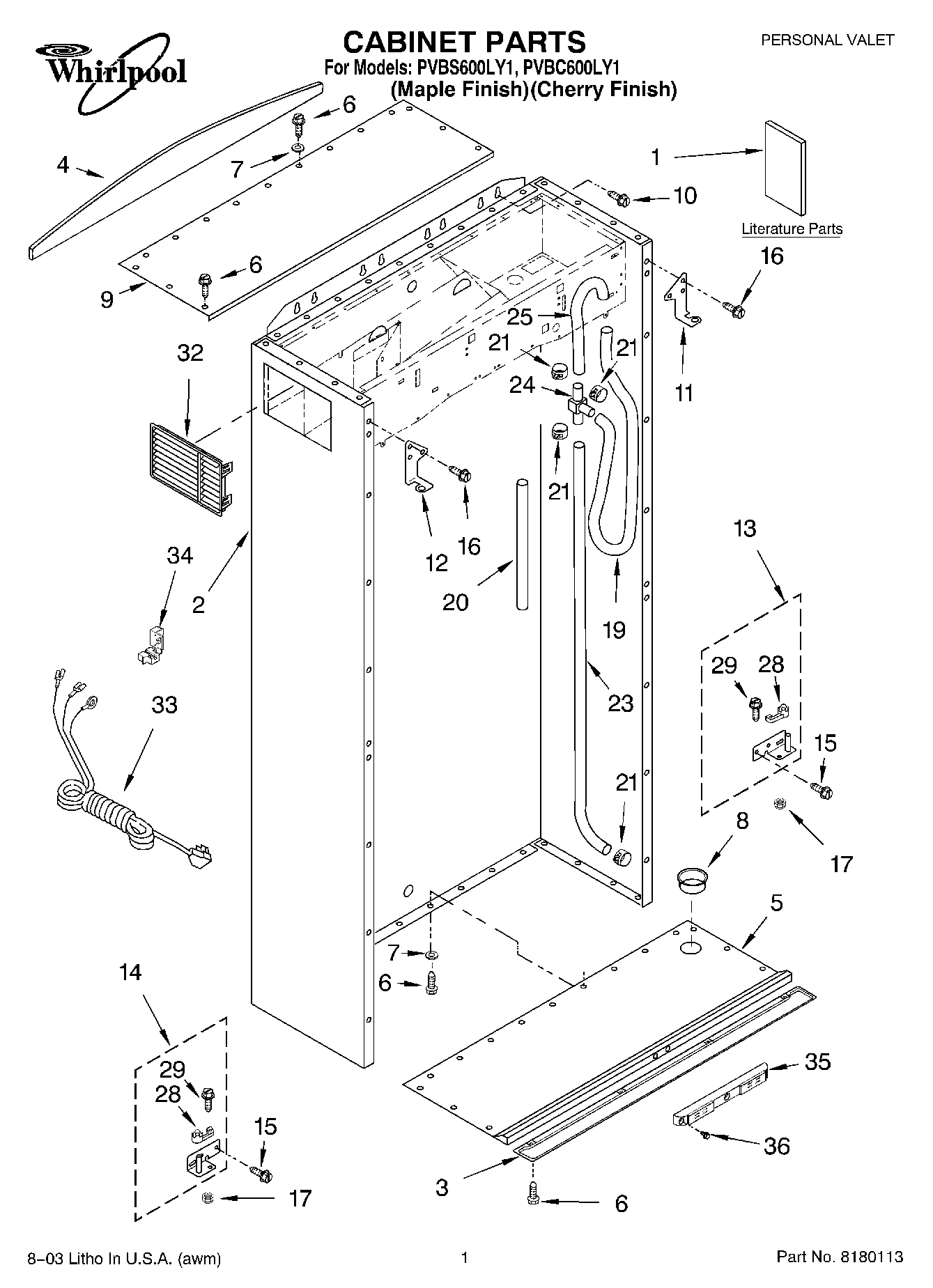

PVBS600LY1 01 – CABINET PARTS

PVBS600LY1 01 – CABINET PARTS

Written by

in

PVBS600LY1 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Video)
1Literature Parts (Use & Care Guide)
2Cabinet (Not Serviced)
3Drip Tray
4Cover, Bracket
5Cabinet, Bottom
6SCREW
7Washer
8Grommet, Power Cord
9Top, Cabinet
10Bolt, 1/4 x 2
10WP487939 Whirlpool Refrigerator Nut
11Hinge, Top Right
12Hinge, Top Left
13Hinge Assembly, Bottom Right
14Hinge Assembly, Bottom Left
15WP3400861 Whirlpool Screw
16WP489464 Whirlpool Refrigerator Screw
17Nut, Nylon (2)
18SCREW
19Hose, Compressor To Tee Fitting
20Inlet, Compressor Silencer
21WP596669 Whirlpool Hose Clamp
23Hose, Tee to Circulation Nozzle
24Tee Fitting
25Hose, Tee Fitting To Airdock
28Cam, Hinge
29Screw, 8-32 x 3/4
32Grill
33Power Cord
34Strain Relief
35Magnet Assembly
36Pad, Cabinet Leveling
36Bracket, Wall Mount
36WP8281206 Whirlpool Refrigerator Screw
36FOLLOWING PARTS NOT ILLUSTRATED
