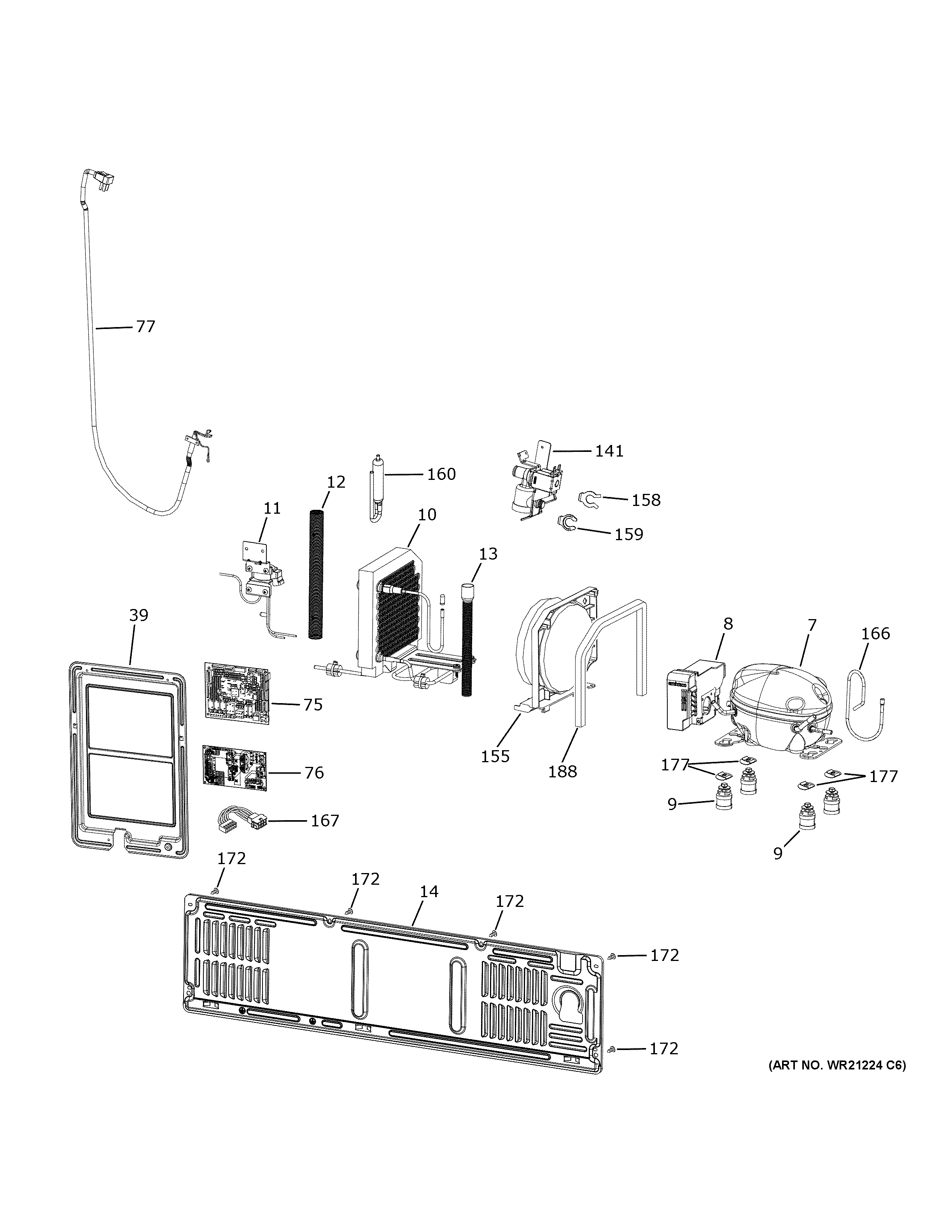

PVD28BYNCFS MACHINE COMPARTMENT

PVD28BYNCFS MACHINE COMPARTMENT

Written by

in

PVD28BYNCFS MACHINE COMPARTMENT

Products

PositionProduct
7WR87X32290 GE Refrigerator Compressor
8INVERTER
9COMPRESSOR GROMMET
10WR87X43807 GE Condenser Assembly with Bracket
113 WAY VALVE W/ BRACKET
12WR01X28429 GE Refrigerator Drain Tube
13REFRIGERATOR DRAIN TUBE
14WR82X31888 GE Rear Access Cover
39WR02X31778 GE Refrigerator Main Control Board Cover
75WR55X47345 GE Main Control Board
76WR55X31984 GE Refrigerator Power Supply Board
77WR01X41167 GE Power Cord
141VALVE WATER ISO ASM
155WR60X32087 GE Refrigerator Condenser Fan with Foam
158WR01X11040 GE Refrigerator Quick Clip Connect 5/16
159WR01X11041 GE Refrigerator Quick Clip Connector 1/4
160WR87X30875 GE Refrigerator R600 Dryer with Red Cap
166WR84X36434 GE Suction Jumper Tube
167WR55X36995 GE Personality Harness
172WH2X1217 GE Screw Assembly
177WR02X28299 GE Refrigerator Compressor Mounting Clip
188WR02X26927 GE Condenser Fan Foam Seal
