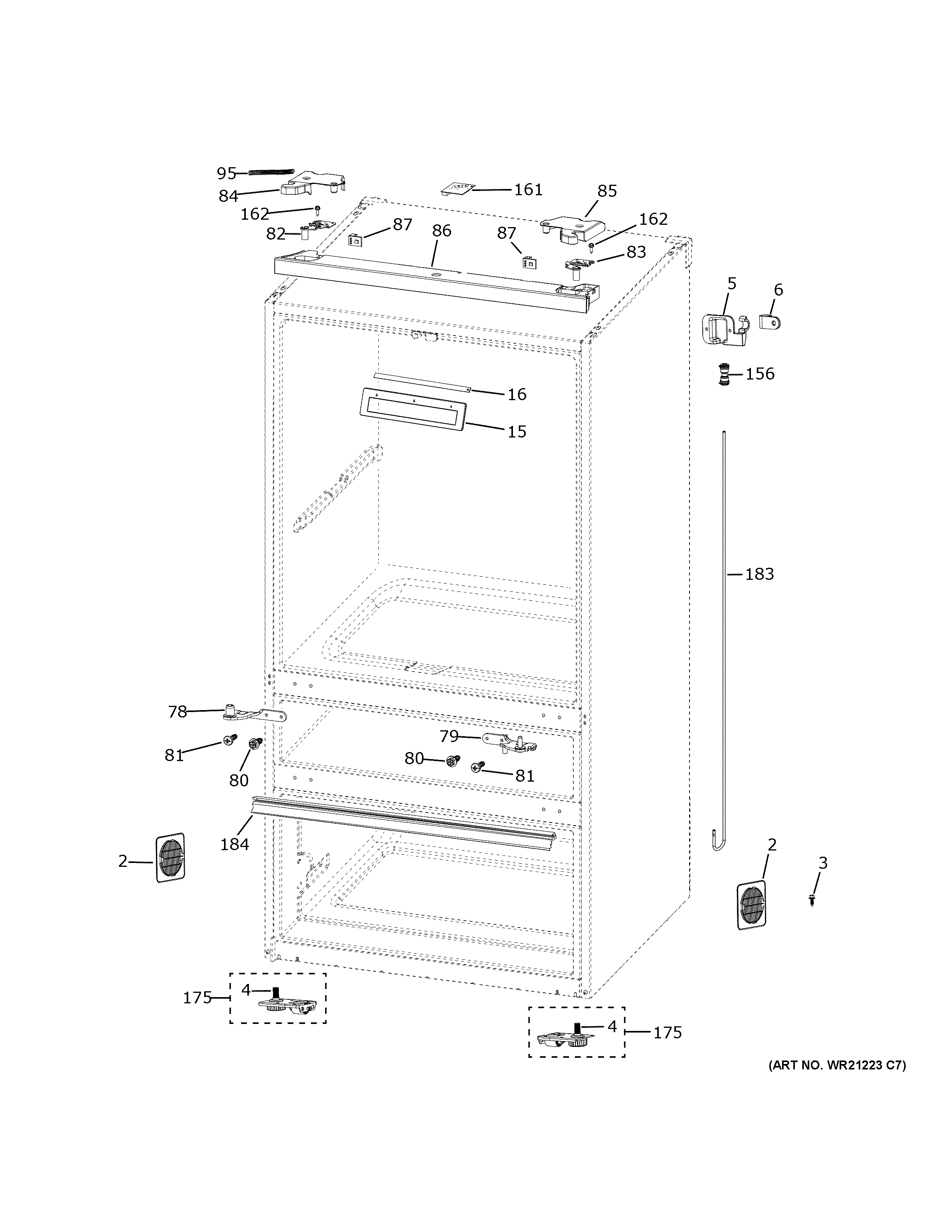

PVD28BYNEFS CASE PARTS

Products

Position	Product
2	VENT COVER SIDE CASE
3	WR02X27683 GE Screw
4	WR01X31892 GE Refrigerator Leveling Leg
5	WATER LINE COVER
6	WR02X10522 GE Refrigerator Clamp Tube
15	WR02X31976 GE LED Shield White
16	WR55X31998 GE Refrigerator Ceiling LED Light
78	MIDDLE HINGE – LEFT
79	WR13X31787 GE Refrigerator Right Door Low E
81	WR02X36985 GE Screw ST4.8-1.6 Ab PNT25 19 S
82	WR13X32502 GE Refrigerator Left Upper Door
83	WR13X31769 GE Refrigerator Door Right Upper
84	WR17X31988 GE Refrigerator Top Left Hinge Cover
85	WR17X31858 GE Refrigerator Top Right Hinge Cover
86	WR17X31989 GE Refrigerator Top Center Hinge Cover Harness
87	WR55X31994 GE Refrigerator Reed Switch
95	WR02X31791 GE Water Line Spring
156	WR02X13738 GE Refrigerator Coupler Straight 1/4
161	WR55X34645 GE Refrigerator Wifi and Humidity Board
162	WR02X36714 GE Refrigerator Screw M6-1.0 T IHXW 20 S
175	WR01X35645 GE Refrigerator Front Wheel Assembly
183	WR02X32126 GE Refrigerator PEX Water Line
184	WR14X41645 GE Refrigerator Upper Gasket
