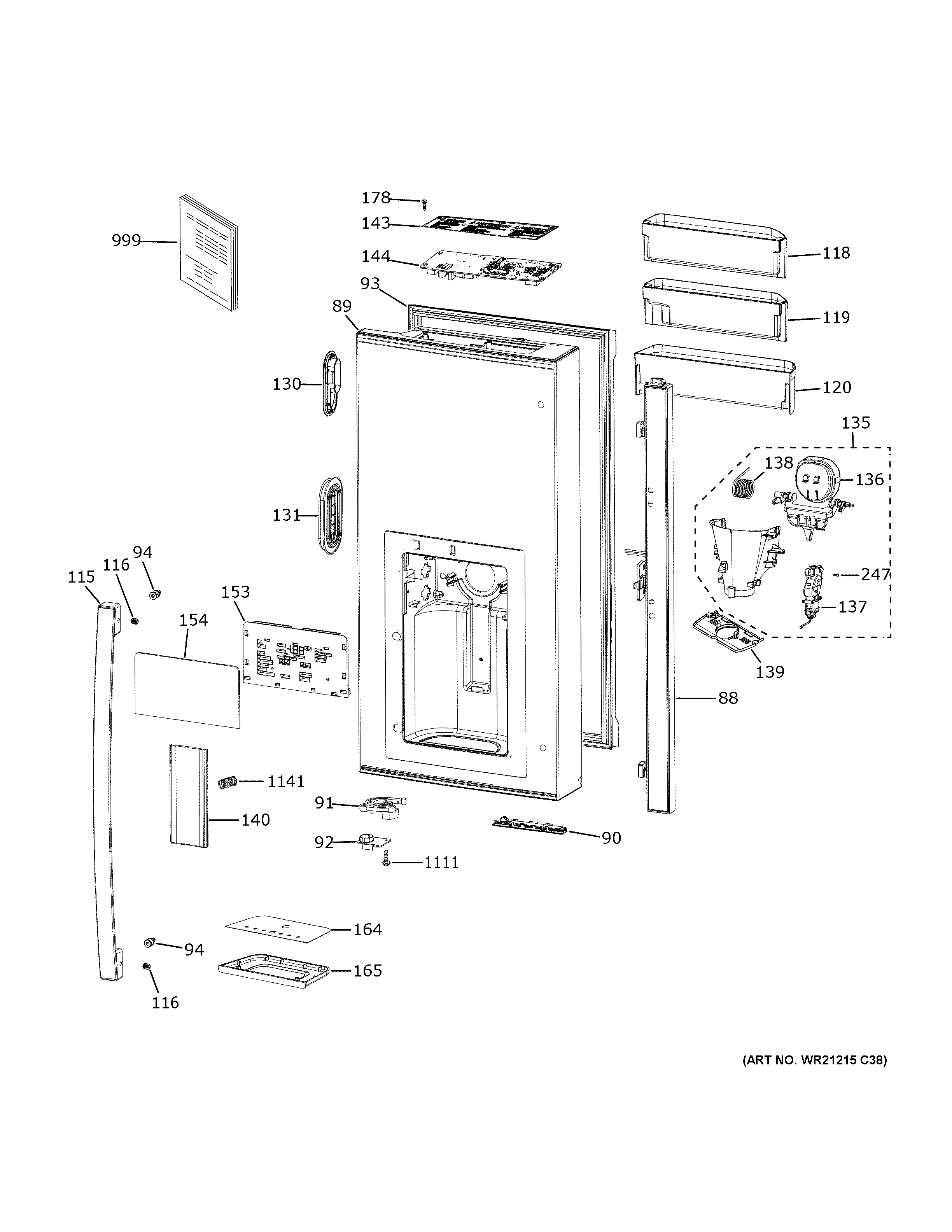

PVD28BYNGFS DISPENSER DOOR

Written by

Products

Position	Product
88	WR17X31949 GE Refrigerator White Articulating Mullion
89	WR78X45835 GE Door Left Hand
90	WR55X31975 GE Refrigerator Convertible Freezer Drawer
91	DOOR CLOSURE LH
92	WR02X31861 GE Refrigerator Left Door Stop
93	WR14X41143 GE Refrigerator Door Gasket
94	WR01X11007 GE Refrigerator Fastener Door Handle
115	WR12X42268 GE Stainless Refrigerator Handle
116	WR01X20424 GE Refrigerator Screw
118	WR71X31846 GE Refrigerator Clear Upper Left Door Bin
119	CLEAR CENTER LEFT DOOR BIN
120	WR71X31848 GE Refrigerator Lower Left Clear Door Bin
130	WR14X32488 GE Refrigerator White Ice Box Port Collar
131	WR14X32473 GE Refrigerator White Ice Box Port Gasket
135	WR13X41131 GE Ice Funnel Duct Door and Motor
136	WR17X36025 GE Refrigerator Duct Door
137	WR60X32001 GE Refrigerator Duct Door Motor
138	WR02X31775 GE Refrigerator Duct Door Spring
139	WR17X31928 GE Refrigerator Auto Fill Ice Funnel Bracket
140	PADDLE ASM PROFILE
143	WR02X32095 GE Refrigerator Door Cover with Insulation
144	WR55X32080 GE Refrigerator Door Board
153	WR55X43065 GE Autofill Dispenser Board
154	WR09X41171 GE Refrigerator Stainless Steel Display Auto Fill
164	WR17X32472 GE Refrigerator Deflector Cover
165	WR02X41137 GE Drip Tray Stainless Steel Base
178	WR01X11032 GE Refrigerator Screw
247	WR02X36891 GE Screw ST3.9-1.4 Ab IHXWT20
999	PM MINI MANUAL AND WIRING
1111	WR01X11061 GE Refrigerator Screw 8-18 HI/LO HWX 3/4
1141	WR01X11027 GE Refrigerator Spring
