PVM2070SM2SS MICROWAVE

Products

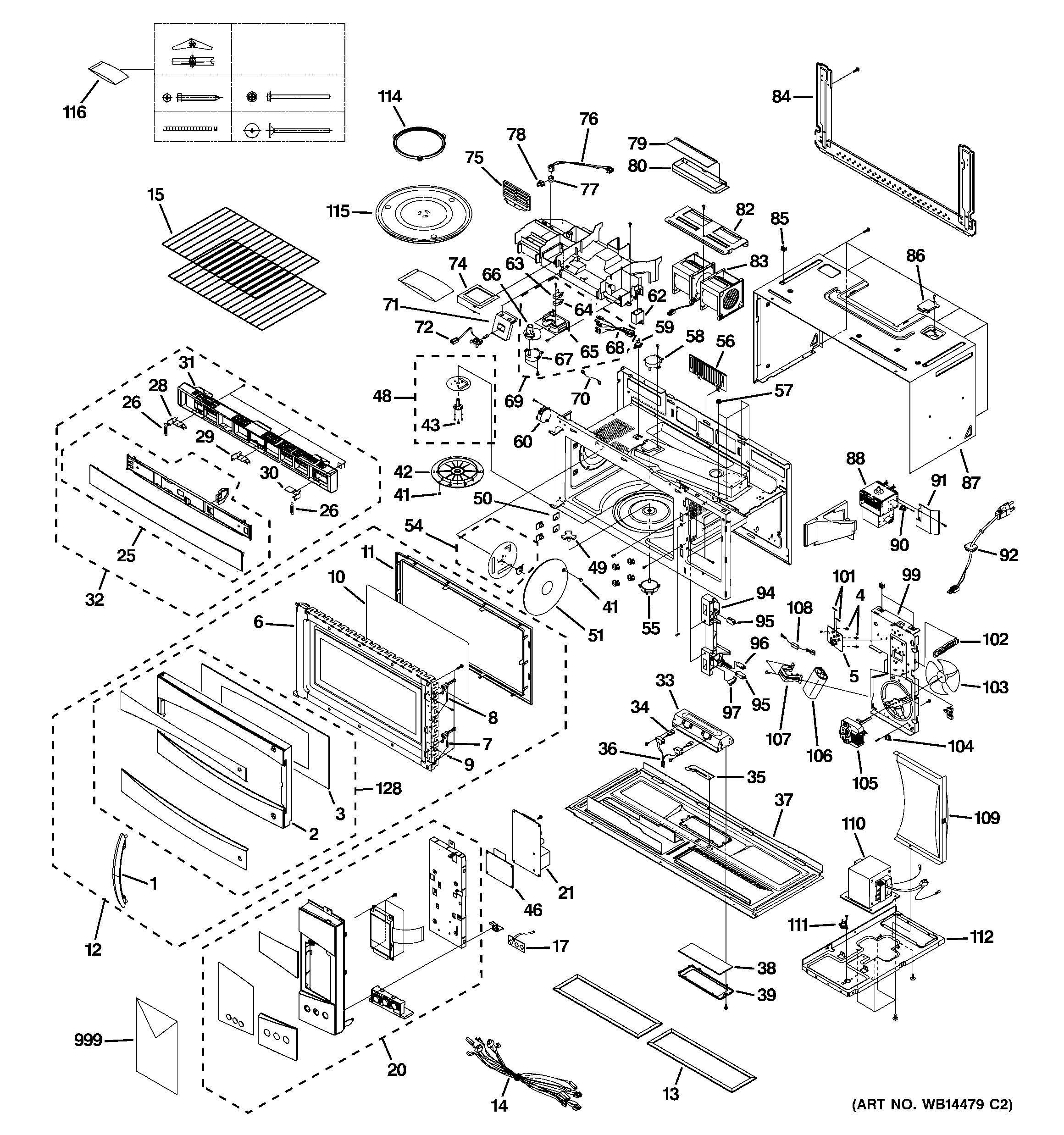

Position	Product
1	ASSY-HANDLE-DIECASTING
2	GEN WB55X10928
3	GEN WB55X10929
4	WB4X175 GE Oven Printed Circuit Board Support
5	GEN WB02X11244
6	GEN WB55X10662
7	GEN WB05X10011
8	GEN WB05X10006
9	WB06X10060 GE Oven Hinge Pin
10	GEN WB06X10516
11	GEN WB55X10663
12	ASSY DOOR
13	WB06X10288 GE Replacement Grease Filter
14	GEN WB18X10342
15	GEN WB48X10059
17	GEN WB27X11007
20	GEN WB07X11196
21	WB27X10901 GE Oven Printed Circuit Board Assembly
25	ASSY-GRILLE
26	GEN WB09X10034
28	GEN WB02X10755
29	HINGE-GRILLE M
30	HINGE-GRILLE (R)
31	GEN WB07X11134
32	GEN WB07X11145
33	BRACKET-BOTTOM LAMP
34	WB36X10213 GE Oven 20W Halogen Bulb Replacement
35	GEN WB06X10517
36	SOCKET LAMP
37	GEN WB56X10804
38	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
39	WB36X10216 GE Oven Glass Cover
41	BUTTON-LOCK
42	COVER STIRRER
43	WB06X10416 GE Oven Stirrer Assembly
46	GEN WB27X10900
48	GEN WB06X10519
49	GEN WB06X10520
50	WB06X10521 GE Oven Rack Holder
51	GEN WB06X10522
54	GEN WB06X10523
55	GEN WB26X10136
56	GEN WB06X10524
57	WB01X10065 GE Oven Flange Nut
58	WB26X10037 GE Oven Stirrer Motor
59	WB27X10195 GE Oven Thermostat
60	GEN WB26X10137
62	WB27X10170 GE Oven Capacitor
63	SWITCH-MICRO
64	SWITCH-MICRO
65	BRACKET-CAM PLATE
66	CAM-LOUVER
67	MOTOR-DRIVE
68	WIRE HARNESS-CAM
69	GEN WB07X10442
70	WB18X10122 GE Oven Wire GND Printed Circuit Board
71	GEN WB06X10525
72	GEN WB08X10027
74	GEN WB06X10762
75	GEN WB02X11297
76	GEN WB18X10241
77	WB24X799 GE Oven Gas Sensor
78	WB6X549 GE Oven Holder Sensor A02
79	GEN WB06X10715
80	WB06X10436 GE Oven Hood Damper Assembly
82	GEN WB06X10165
83	GEN WB26X10217
84	WB56X10446 GE Oven Mounting Plate Bracket
85	WB01X10071 GE Oven Holder Assembly
86	GEN WB06X10122
87	CASE OUTER BK
88	WB27X10939 GE Oven Magnetron Assembly
90	GEN WB27X10166
91	GEN WB06X10526
92	GEN WB18X10400
94	MICROWAVE LATCH BODY
95	WB24X829 GE Oven Microwave Secondary Micro Switch
96	WB24X830 GE Oven Door Switch
97	LEVER-S/W
99	GEN WB06X10763
101	WB27X10928 GE Oven Line Fuse
102	GEN WB06X10528
103	GEN WB26X10090
104	GEN WB27X10194
105	GEN WB26X10089
106	WB27X10011 GE Microwave Capacitor
107	GEN WB06X10287
108	WB27X10597 GE Oven Diode
109	GEN WB26X10139
110	WB27X10910 GE Oven High Voltage Transformer
111	WB27X1127 RANGE THERMAL FUSE
112	GEN WB56X10448
114	GEN WB06X10529
115	GEN WB49X
