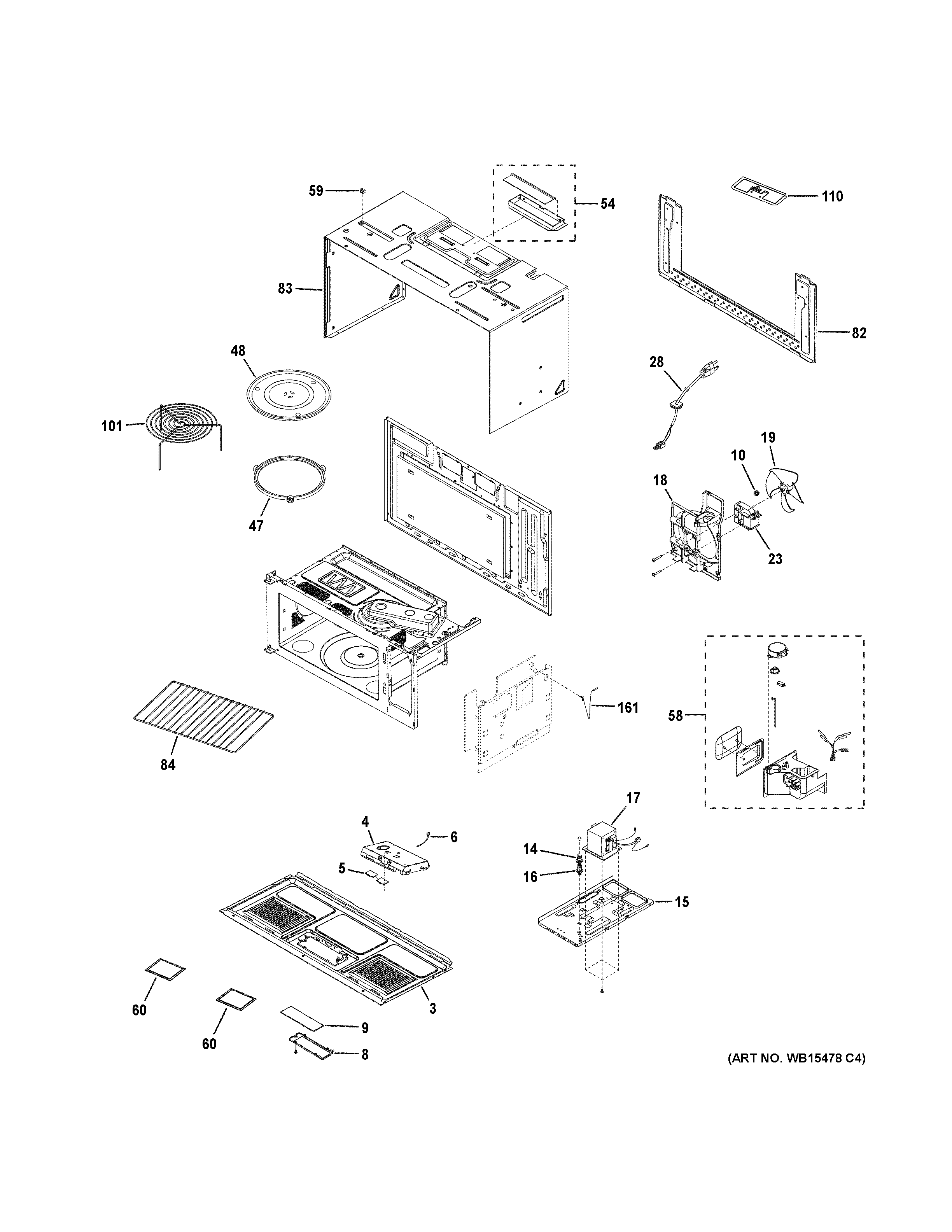

PVM9179DK1WW OVEN CAVITY PARTS (2)

Products

Position	Product
3	WB63X10073 GE Bottom Base
4	WB34X26805 GE Bottom Lamp Bracket
5	WB02X26814 GE Microwave LED Board
6	CABLE CLAMP
8	WB36X10217 GE Oven Glass Cover
9	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
10	WB09X10042 GE Oven Spring Blade
14	WB21X10162 GE Microwave Thermal Cut-Off Bottom
15	BASE PLATE
16	WB27X709 GE Oven Thermostat Vent
17	TRANS H.V
18	COVER MOTOR
19	WB02X20626 GE Oven Blade Fan
23	WB26X10262 GE Oven Fan Motor
28	WB18X10442 GE Oven Power Cord Assembly
47	WB02X27043 GE Microwave Rotating Ring
48	WB39X10003 GE Oven Microwave Glass Cooking Tray
54	WB06X10920 GE Range Microwave Vent Hood Damper
58	WB02X27042 GE Oven Magnetron Cover
59	WB01X10071 GE Oven Holder Assembly
60	WB02X11534 GE Grease Filter Replacement
82	WB56X10446 GE Oven Mounting Plate Bracket
83	WB56X27061 GE Oven Outer Case
84	WB48X29756 GE Oven Wire Rack
101	WB48X27110 GE Range Microwave ASM Wire Rack-Middle
110	WB02X27037 GE Oven Hood Damper Assembly
161	WB02X27046 GE Oven Temperature Sensor
