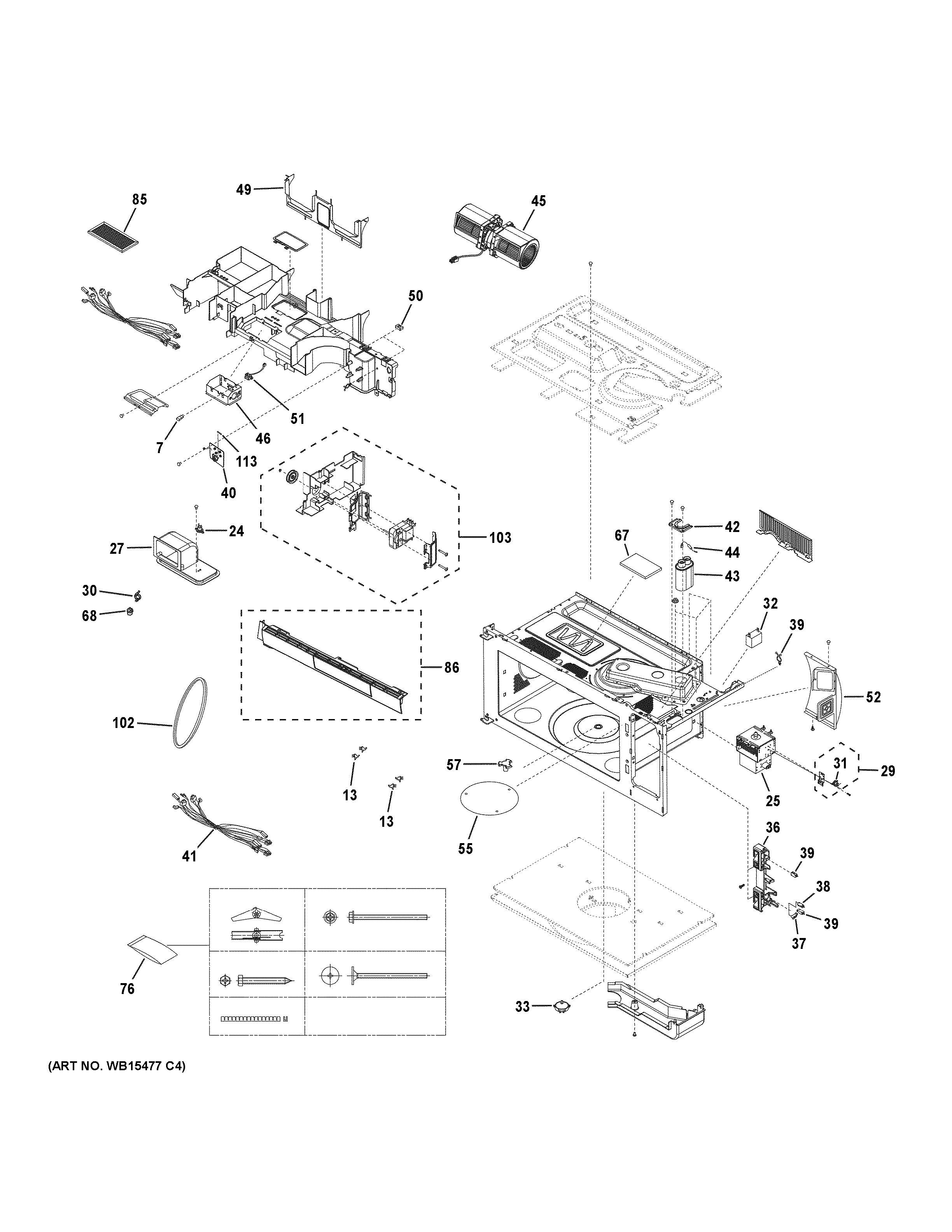

PVM9179FL1DS OVEN CAVITY PARTS (1)

Products

Position	Product
7	WB36X10213 GE Oven 20W Halogen Bulb Replacement
13	WB02X27051 GE Microwave Rack Support
24	WB24X26784 GE Oven Thermostat
25	WB27X10939 GE Oven Magnetron Assembly
27	DUCT EXHAUST
29	WB24X26785 GE Oven Thermostat Assembly with Bracket
30	WB02X27451 GE Sensor Holder
31	WB24X29270 GE Oven Magnetron TCO
32	WB27X10170 GE Oven Capacitor
33	TURNTABLE MOTOR
36	WB10X27044 GE Oven Latch Body
37	LEVER-S/W
38	WB24X830 GE Oven Door Switch
39	WB24X829 GE Oven Microwave Secondary Micro Switch
40	NOISE FILTER ASM
41	WB18X27039 GE Oven Main Wire Harness Assembly
42	WB34X27023 GE Oven HVC Bracket
43	WB27X10240 GE Oven High Voltage Capacitor
44	WB27X10597 GE Oven Diode
45	WB26X27040 GE Oven Ventilation Motor
46	WB34X27024 GE Bracket
49	WB34X27022 GE Oven Upper Rear Duct Bracket
50	WB01X27055 GE Oven Mounting Nut
51	WB25X27053 GE Halogen Lamp Socket
52	WB34X27047 GE Rear Bracket Assembly
55	WB34X27027 GE Oven Stirrer Cover
57	WB06X27025 GE Coupler
67	WB02X27050 GE Oven Lamp Glass
68	WB24X799 GE Oven Gas Sensor
76	WB06X10889 GE Oven Mounting Kit
85	WB02X11544 GE Microwave Charcoal Filter
86	WB07X27064 GE Oven Stainless Steel Grille Vent
102	WB02X27021 GE Microwave Timing Belt
103	WB26X27057 GE Oven Convection Motor Air GUI
113	WB27X10928 GE Oven Line Fuse
