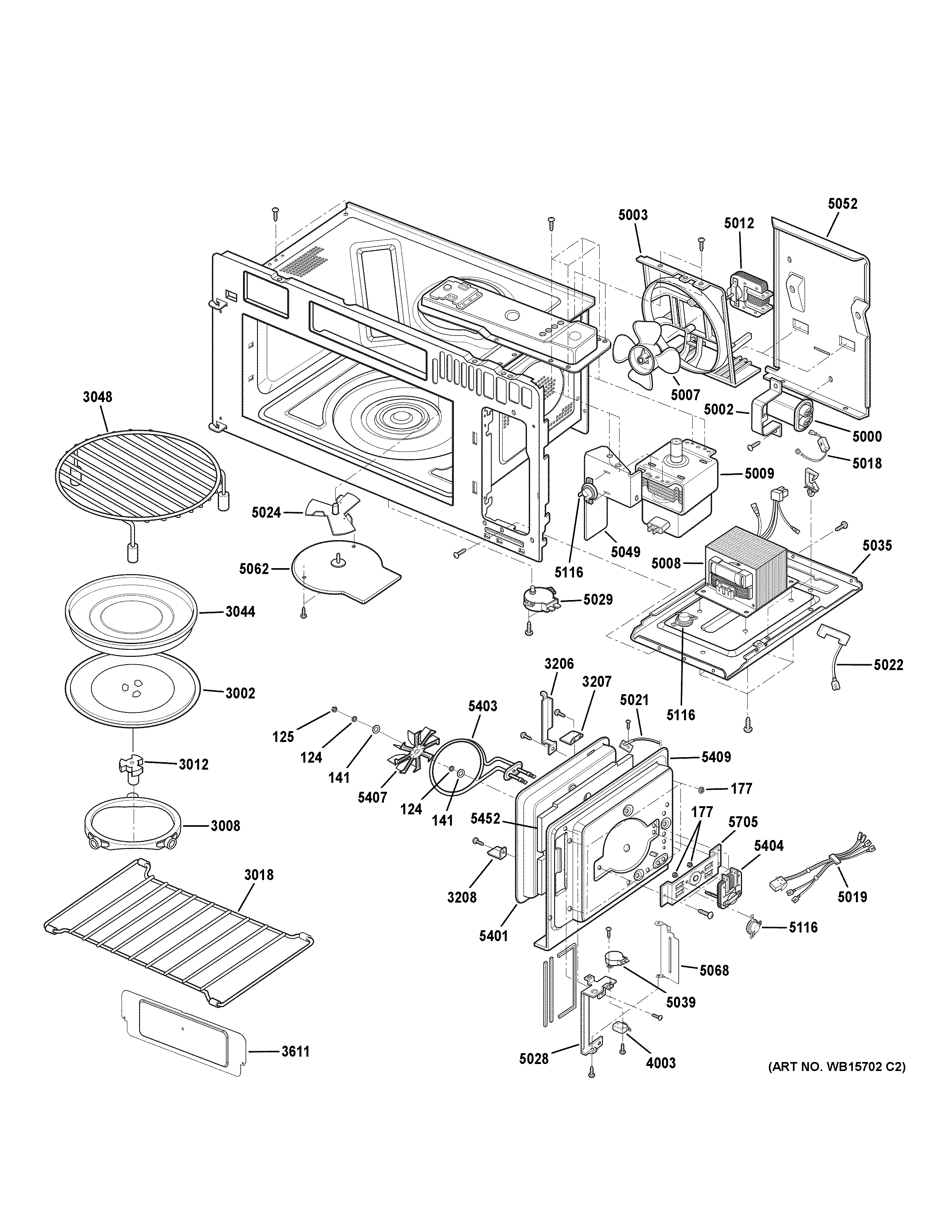

PVM9179FR1DS INTERIOR PARTS (1)

PVM9179FR1DS INTERIOR PARTS (1)

Written by

in

PVM9179FR1DS INTERIOR PARTS (1)

Products

PositionProduct
124WASHER, SPLK
125WB1X1520 GE Oven Hexagon Nut
141WASHER,PLAIN
177NUT COMMON
3002WB27X43766 GE Glass Tray
3008TURNTABLE RING ASM
3012WB06X45595 GE Turntable Shaft
3018WB48X10064 GE Oven Shelf
3044WB27X42489 GE Metal Tray
3048WB48X35378 GE Shelf
3206LARGE BRACKET HEATER
3207SMALL BRACKET HEATER
3208HOLDER – HEATER
3611WB06X35395 GE Safety Cover
4003WB24X25397 GE Oven Interlock Monitor Switch
5000WB27X11033 GE Oven High Voltage Capacitor
5002WB02X32593 GE Bracket Capacitor
5003WB39X32800 GE Oven Suction Guide
5007WB38X10005 GE Oven Fan Blade
5008WB26X35402 GE High Voltage Transformer
5009WB27X44106 GE Magnetron
5012WB26X10247 GE Oven AC Fan Motor
5018WB27X35382 GE Diode
5019WB18X35381 GE Harness
5021WB18X10126 GE Oven Thermistor
5022WB02X35377 GE Fuse Assembly
5024WB38X35383 GE Fan Assembly
5028WB02X33933 GE Damper Bracket
5029WB26X10226 GE Oven Synchronous AC Motor
5035PLATE BOTTOM
5039WB26X10248 GE Oven Synchronous AC Motor
5049WB34X32721 GE Air Guide
5052WB34X32729 GE Air Guide
5062WB02X32719 GE Oven Microwave Stirrer Fan Cover Assembly
5068WB34X35371 GE Damper Bracket
5116WB26X35390 GE Thermostat
5116WB20X10048 GE Oven Thermostat
5401CHAMBER
5403WB44X10046 GE Oven Heater Sheath
5404WB26X35370 GE Circulation Motor
5407WB26X32609 GE Oven Fan Motor
5409WB35X34794 GE Insulator
5452WB06X10664 GE Microwave Glass Wool
5705WB56X32723 GE Heater Side Plate
