PVM9215SF3SS CONTROL PARTS

PVM9215SF3SS CONTROL PARTS

Written by

in

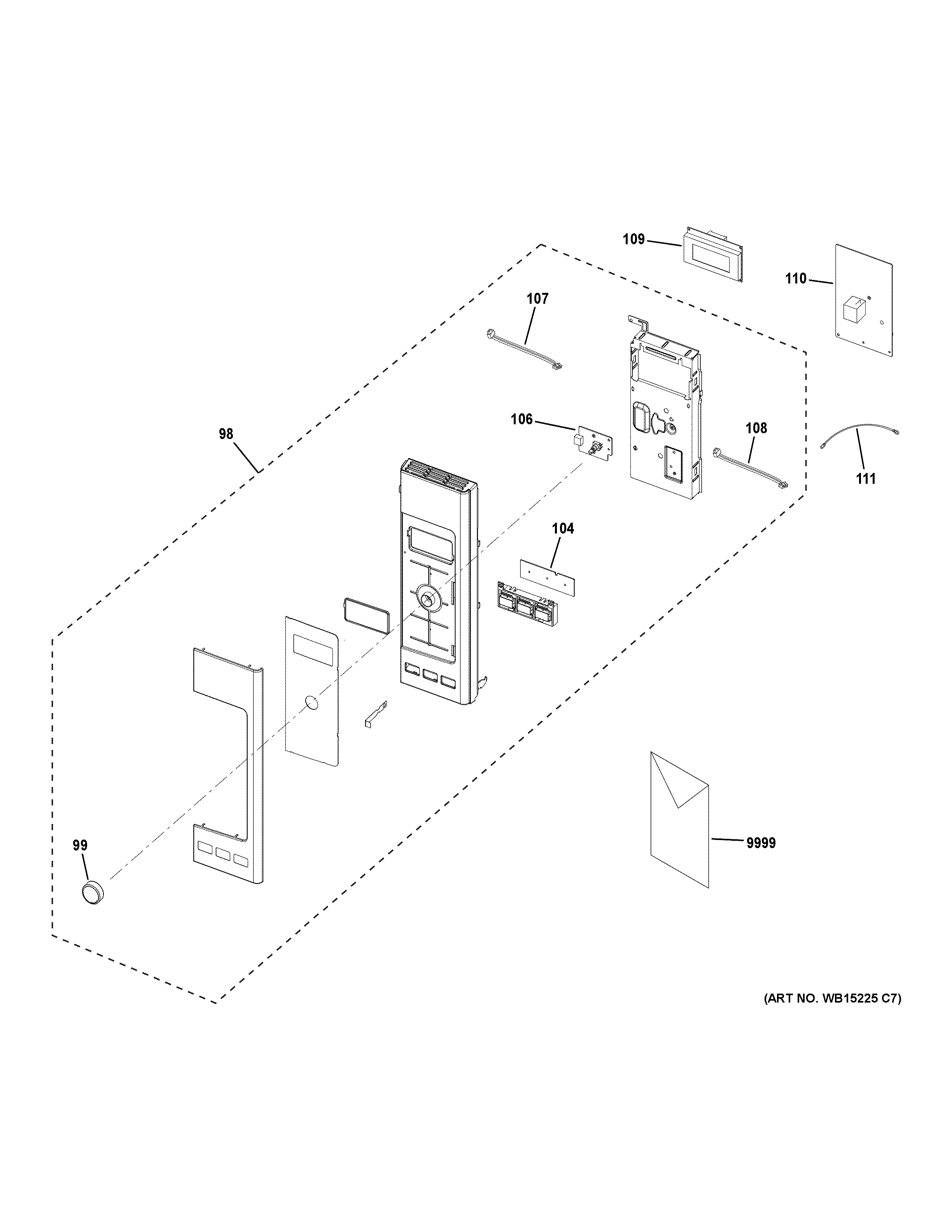

PVM9215SF3SS CONTROL PARTS

Products

PositionProduct
98WB56X20769 GE Oven Control Panel Assembly Stainless Steel
99WB03X30480 GE Black Oven Knob
104SWITCH PCB, ASM
106WB24X10193 GE Oven Assembly Printed Circuit Board Encoder
107WIRE HARNESS-B
108WIRE HARNESS C
109WB27X20768 GE Vf Display
110WB27X20767 GE Oven Main PCB Assembly
111WB18X10122 GE Oven Wire GND Printed Circuit Board
9999USE & CARE MANUAL
9999MINI MANUAL
9999TOP TEMPLATE
9999PM QUICK REF OTR N-CONV
9999INSTALLATION GUIDE
9999TEMPLATE REAR
