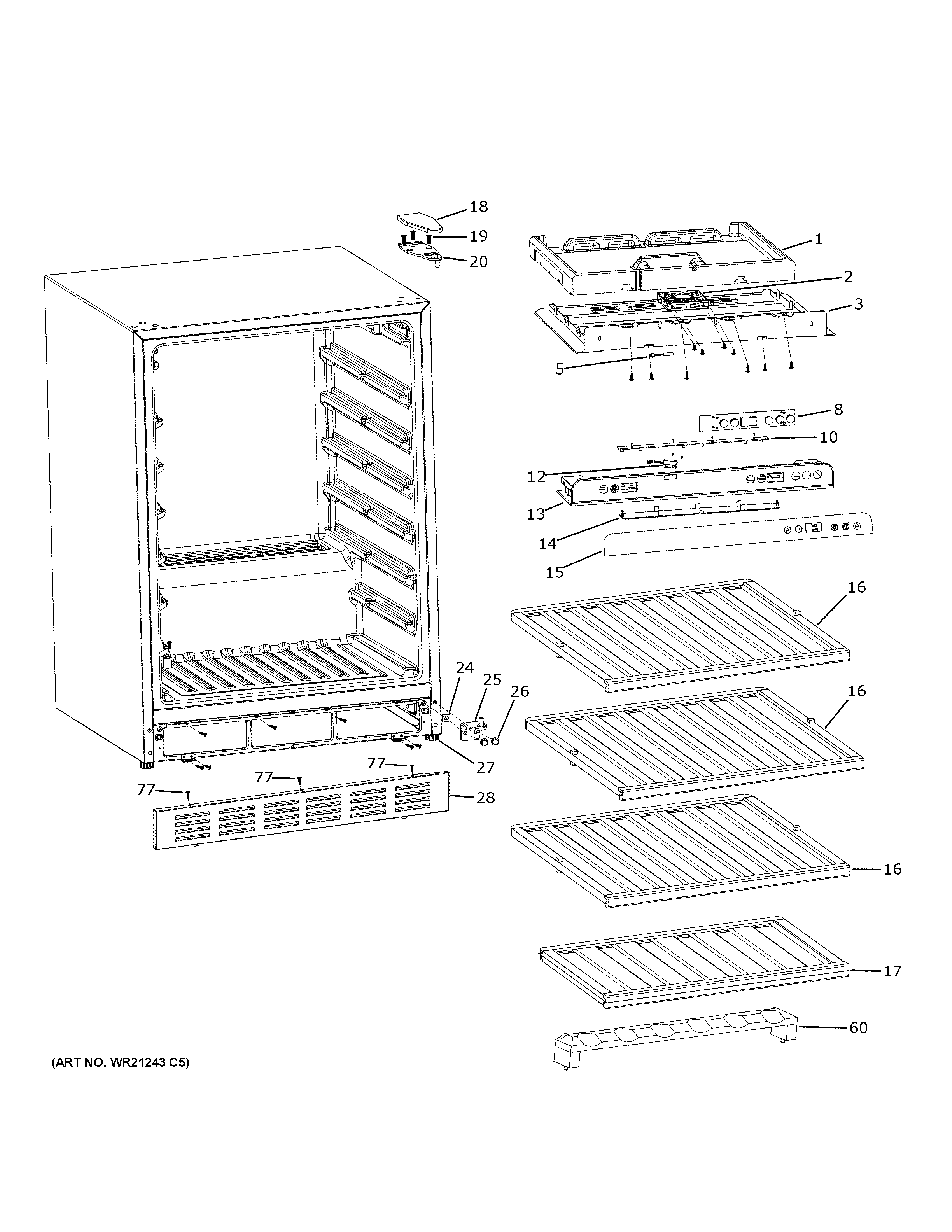

PVS06BSPBSS CABINET & SHELVES

Products

Position	Product
1	WR02X35405 GE Refrigerator Air Duct
2	WR60X35407 GE Refrigerator Evaporator Fan
3	AIR DUCT COVER
5	WR55X35411 GE Refrigerator Thermistor
8	UI PC BOARD
10	LED LIGHT
12	LIGHT REED SWITCH
13	UI HOUSING
14	LED LIGHT COVER
15	UI OVERLAY
16	GLASS REFRIGERATOR SHELF
17	WR71X36032 GE Half Depth Glass Shelf
18	TOP HINGE COVER
19	SCREW
20	TOP HINGE
24	BOTTOM HINGE SHIM
25	BOTTOM HINGE
26	SCREW
27	LEVELING LEG
28	STAINLESS STEEL TOE KICK
60	RISER SUPPORT BAR
77	TOE KICK SCREW – STAINLESS STEEL
