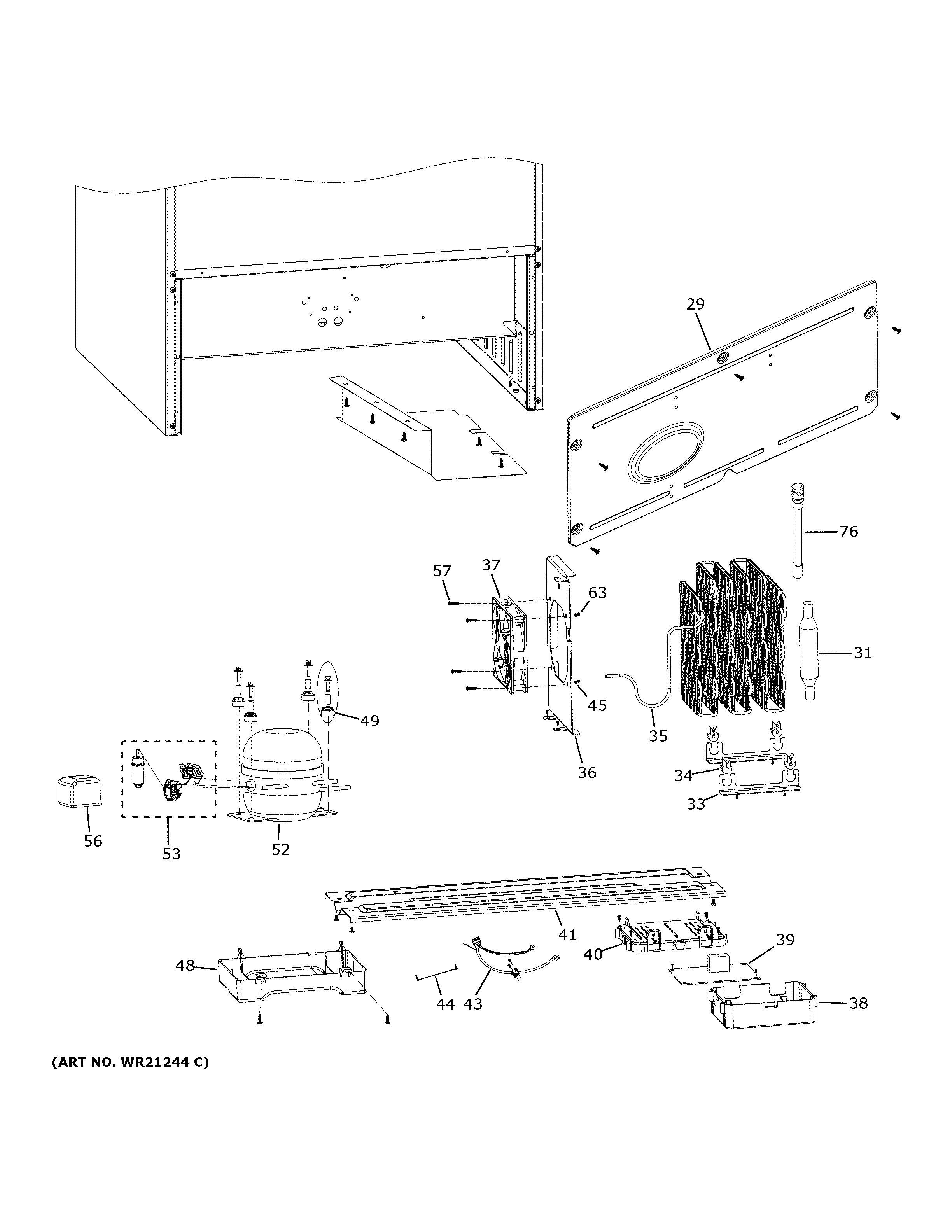

PVS06BSPBSS MACHINE COMPARTMENT
Written by
in
PVS06BSPBSS MACHINE COMPARTMENT
Products
Position
Product
29
MACHINE COVER
31
DRIER FILTER
33
CONDENSER MOUNTING BRACKET
34
RUBBER GROMMET
35
CONDENSER
36
CONDENSER FAN BRACKET
37
WR60X35410 GE Fan Condenser
38
MAIN BOARD HOUSING
39
WR55X40886 GE Main Board
40
MAIN BOARD COVER
41
COMPRESSOR BASE PLATE
43
POWER CORD
44
GROUNDING WIRE
45
LOCK WASHER
48
DRAIN PAN
49
COMPRESSOR MOUNTING ASM
52
COMPRESSOR
53
COMPRESSOR ELECTRICALS
56
WR87X32902 GE Compressor Electrical Cover
57
CONDENSER FAN SCREW
63
NUT
76
WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
←
