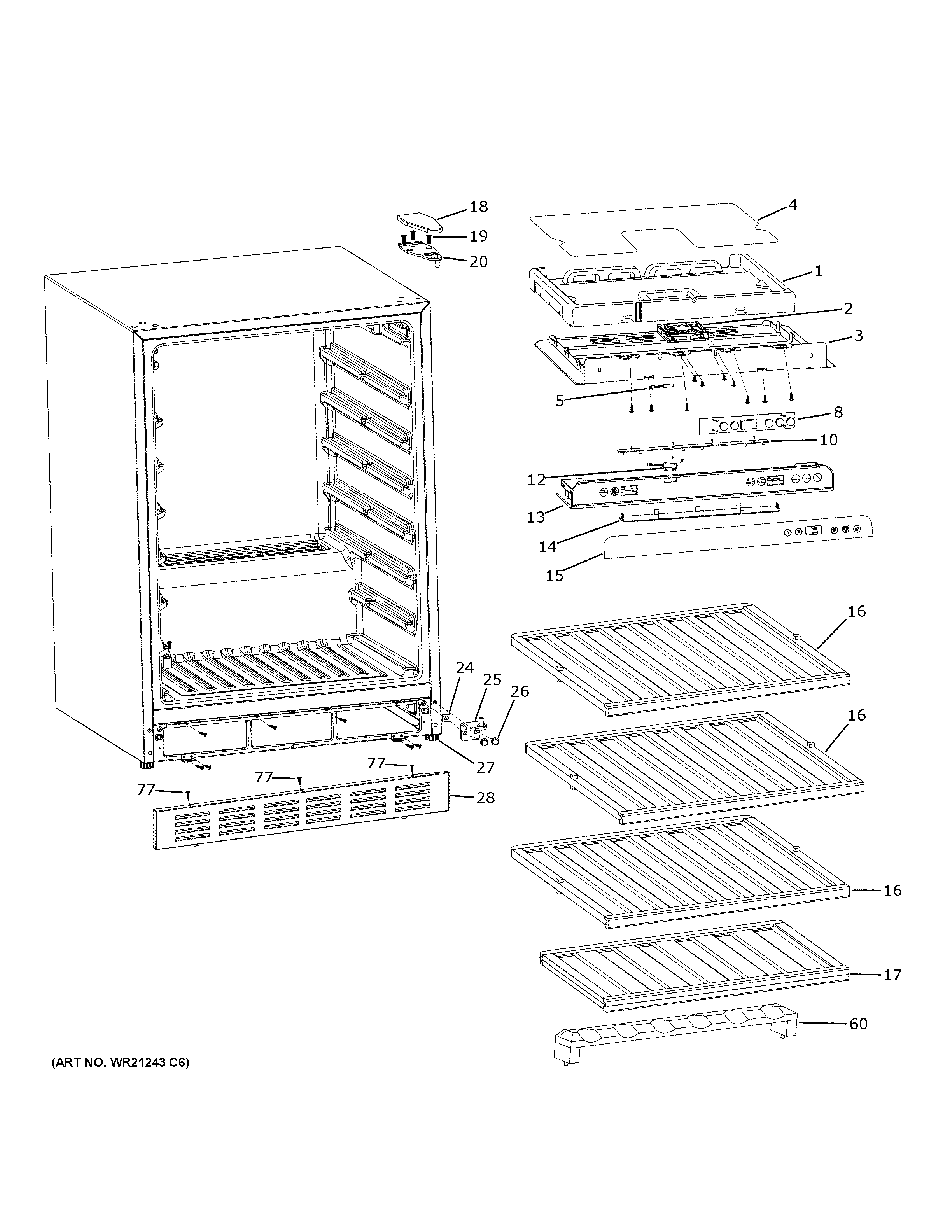

PVS06BSPCSS CABINET & SHELVES

Products

PositionProduct
1AIR DUCT
2WR60X35407 GE Refrigerator Evaporator Fan
3AIR DUCT COVER
4ALUMINUM SHIELD
5WR55X35411 GE Refrigerator Thermistor
8UI PC BOARD
10LED LIGHT
12LIGHT REED SWITCH
13UI HOUSING
14LED LIGHT COVER
15UI OVERLAY
16GLASS REFRIGERATOR SHELF
17WR71X36032 GE Half Depth Glass Shelf
18TOP HINGE COVER
19SCREW
20TOP HINGE
24BOTTOM HINGE SHIM
25BOTTOM HINGE
26SCREW
27LEVELING LEG
28STAINLESS STEEL TOE KICK
60RISER SUPPORT BAR
77TOE KICK SCREW – STAINLESS STEEL
