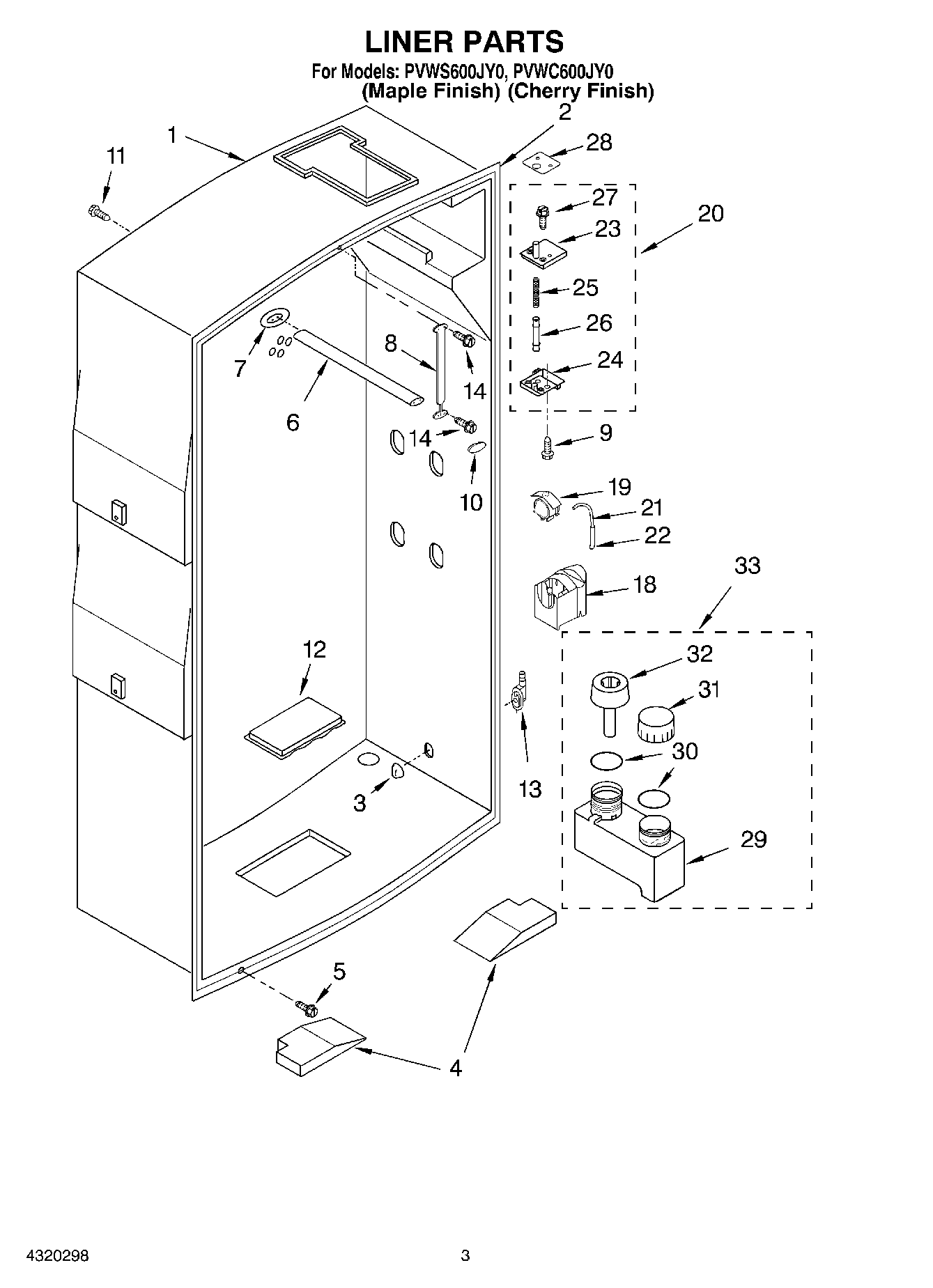

PVWC600JY0 02 – LINER

Written by

Products

Position	Product
1	Liner
2	Gasket
3	Circulation Nozzle
4	Support, Bottom
5	Screw
6	Hangar Bar
7	Base, Hangar Bar
8	Support, Hangar Bar
9	Screw
10	End Cap, Hangar Bar
11	Screw (2)
12	Grill, Sump
13	Circulation Nozzle, Base
14	WP488920 Whirlpool Refrigerator Screw
18	Cover
19	Fluid Nozzle
20	Airdock Assembly
21	Siphon Tube
22	Fluid Filter
23	Base, Airdock
24	Airdock
25	Spring
26	Air Fitting
27	Screw
28	Gasket
29	Cartridge
30	O-Ring
31	Fill Cap
32	Cartridge Insert
33	Cartridge Assembly
