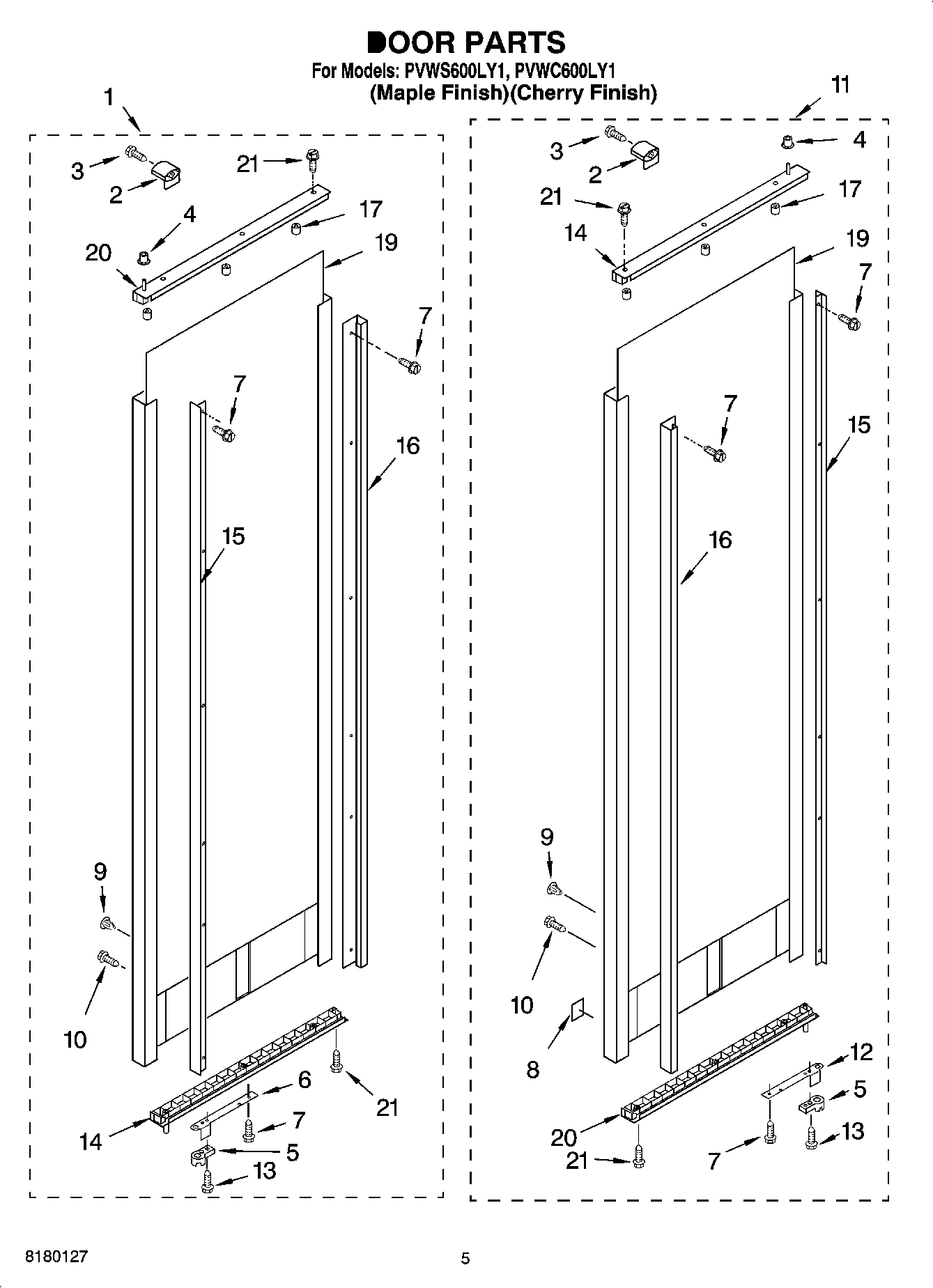

PVWC600LY1 03 – DOOR PARTS

Products

Position	Product
1	Left Door (Cherry)
1	Left Door (Maple)
2	Garment Hook
3	SCREW
4	Bumper, Top Pin
5	Door Cam
6	Hinge, Bottom Left
7	WP8281206 Whirlpool Refrigerator Screw
8	Strike Plate (Includes Rivet)
9	Plug, Door Liner
10	3196166 Whirlpool Screw
11	Right Door (Maple)
11	Right Door (Cherry)
12	Hinge, Bottom Right
13	RIVET
14	Endcap (RU/LL)
15	Trim, Door Hinge
16	Handle, Door
17	Spacer, Nylon
19	Door Panel (Reversible)
20	Endcap (RL/LU)
21	Screw
