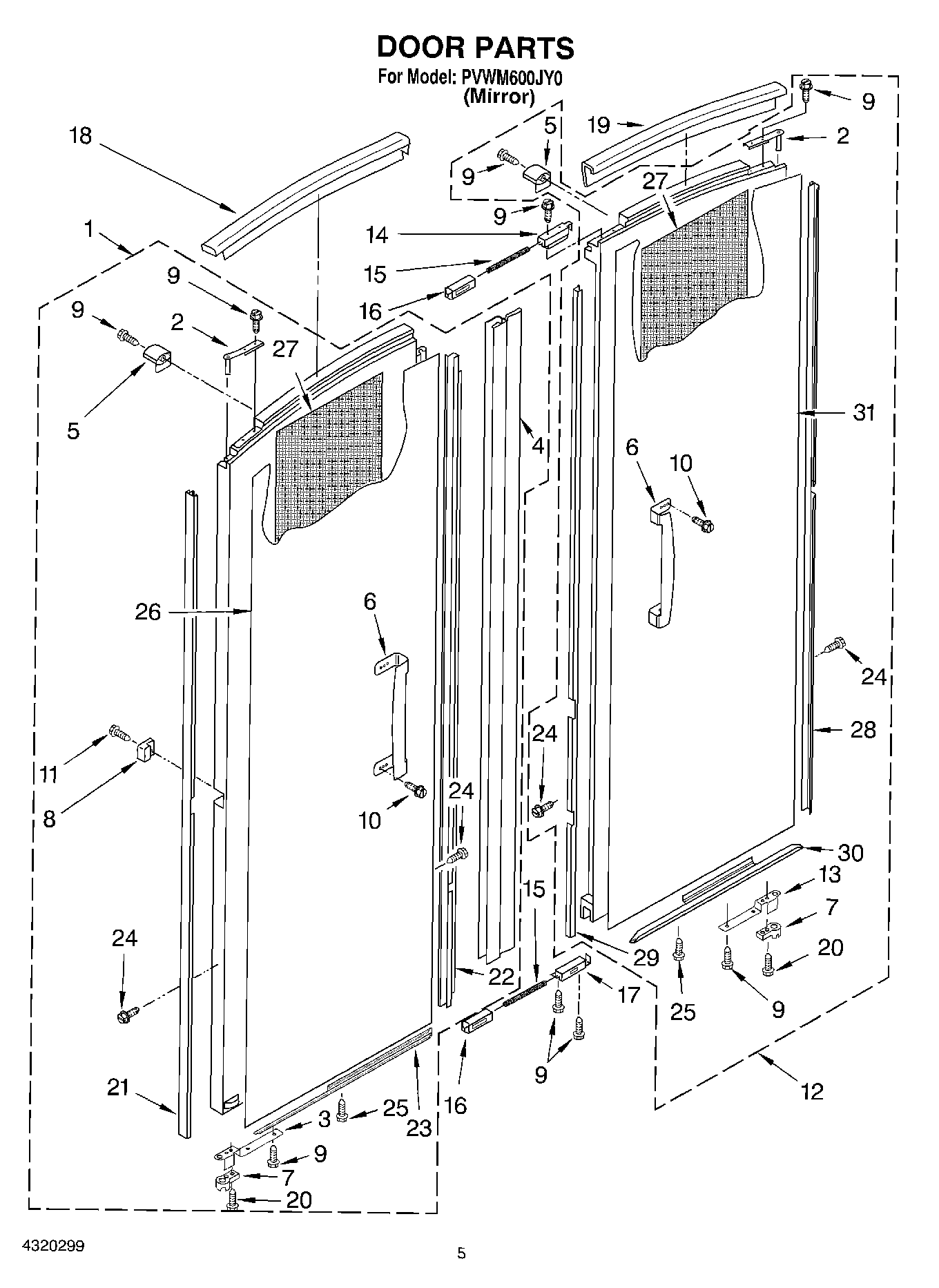

PVWM600JY0 03 – DOOR

Products

Position	Product
1	Left Door Assembly
2	Hinge, Top (2)
3	Hinge, Bottom Left
4	Door Gasket
5	Garment Hook
6	Handle (2)
7	Door Cam
8	Bushing, Center Hinge
9	Screw
10	Screw, Handle
11	Screw
12	Right Door Assembly
13	Hinge, Bottom Right
14	Housing, Upper Latch
15	Spring
16	Plunger
17	Housing, Lower Latch
18	Top Cap, Left Door
19	Top Cap, Right Door
20	Screw, 8-32 x 3/8
21	Trim, Left Door (Outside)
22	Trim, Left Door (Inside)
23	Trim, Left Door (Bottom)
24	Screw, Lid Switch (2)
25	Screw, 8-18 x 3/4 (Door Handle)
26	Mirror, Left Door (Not Serviced)
27	Insert, Panel
28	Trim, Right Door (Outside)
29	Trim, Right Door (Inside)
30	Trim, Right Door (Bottom)
