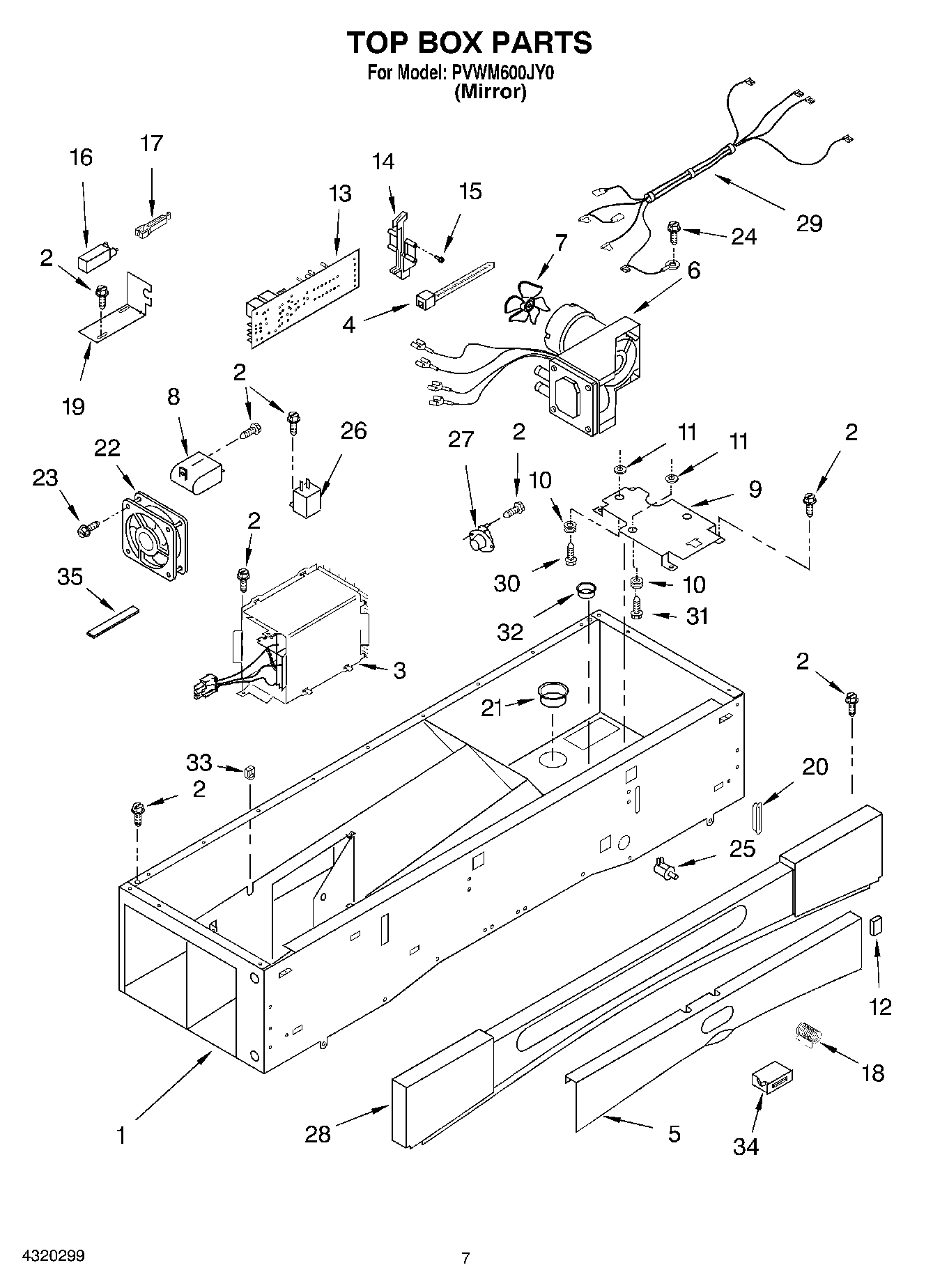

PVWM600JY0 04 – TOP BOX

Products

Position	Product
1	Top Box
2	Screw
3	Heater Assembly
4	Wire Tie
5	Door, Control Panel
6	Compressor (Includes Foam Baffle)
7	Fan Blade (Includes No. 5)
8	WP2201147 Whirlpool Refrigerator Capacitor
9	Compressor Mount
10	Isolator
11	8526417 Whirlpool Washer
12	Strike Plate, Control Panel
13	Control Board
14	Clip, Control Board (2)
15	Screw
16	Wax Motor
17	Link, Wax Motor
18	Spring
19	Mount, Wax Motor
20	Grommet
21	Grommet (2 Inches)
22	Fan Motor
23	Screw
24	Screw (2)
25	Interlock Switch
26	Buzzer
27	Thermistor
28	Control Panel
29	Wire Harness
30	Screw
31	Screw (2)
32	Tubing, Grommet
33	Grommet, Wire
34	Magnet, Latch
35	Band, EDPM
