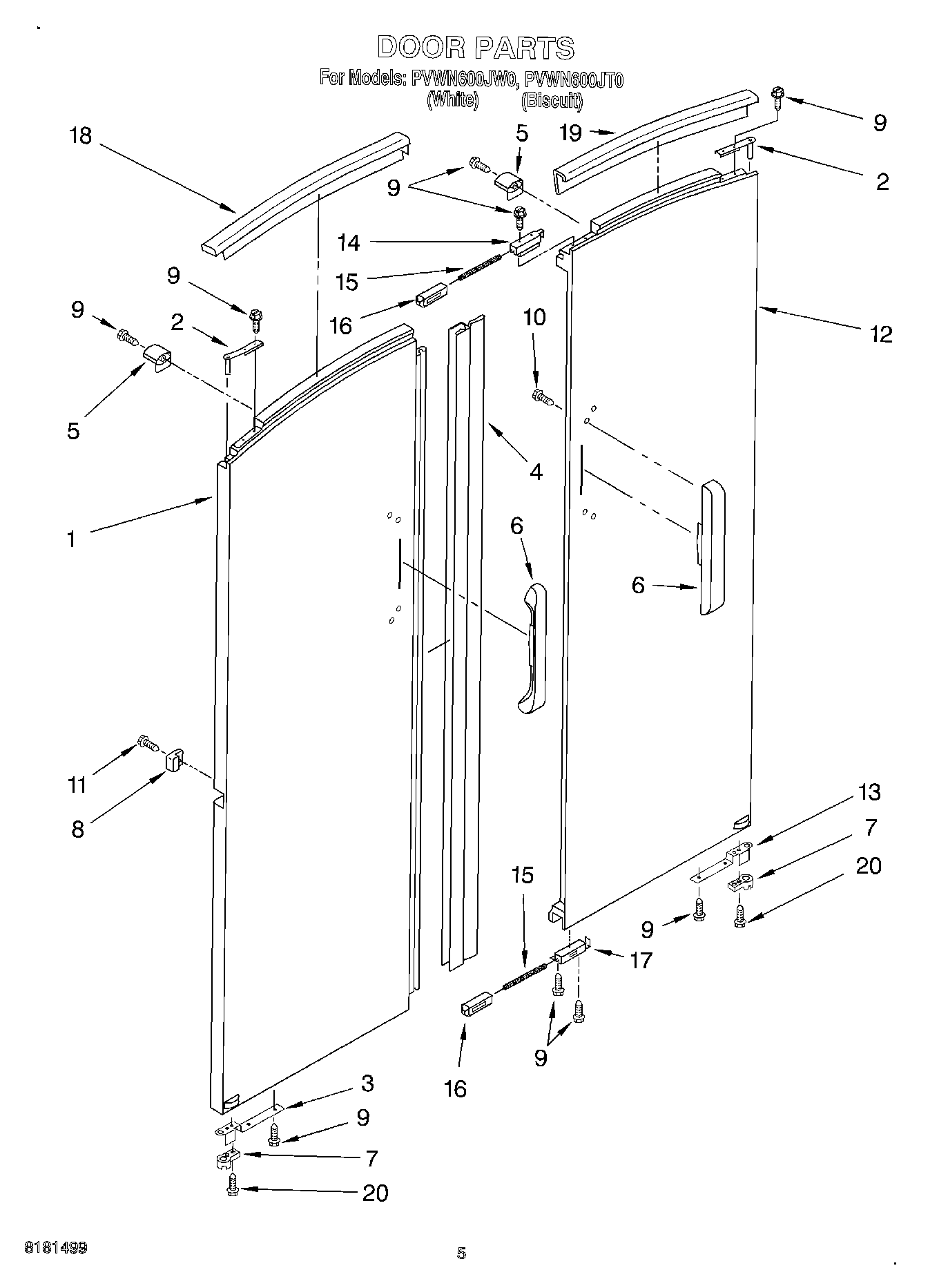

PVWN600JT0 03 – DOOR

Products

Position	Product
1	Left Door Assembly (Biscuit)
1	Left Door Assembly (White)
2	Hinge, Top (2)
3	Hinge, Bottom Left
4	Door Gasket
5	Garment Hook
6	Handle (2) (Biscuit)
6	Handle (2) (White)
7	Door Cam
8	Bushing, Center Hinge
9	Screw
10	Screw
11	Screw
12	Right Door Assembly (Biscuit)
12	Right Door Assembly (White)
13	Hinge, Bottom Right
14	Housing, Upper Latch
15	Spring
16	Plunger
17	Housing, Lower Latch
18	Top Cap, Left Door
19	Top Cap, Right Door
20	Screw, 8-32 x 3/8
