PVWN600JW0 01 – CABINET, LITERATURE

Products

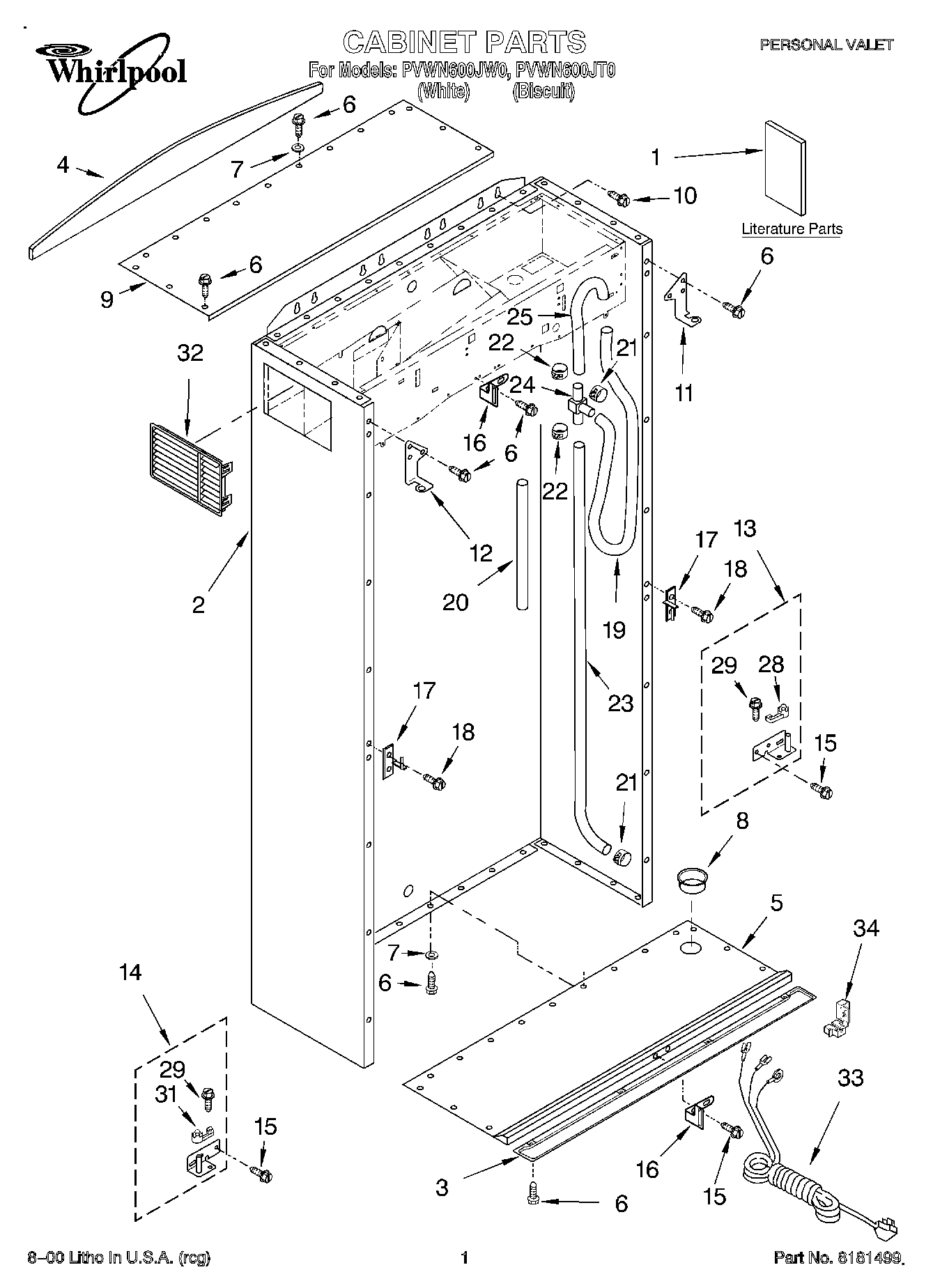

PositionProduct
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Cabinet (Not A Serviceable Part)
3Drip Tray
4Cover, Bracket
5Cabinet, Bottom
5Cabinet, Bottom (Biscuit)
6Screw
7Washer
8Grommet, Power Cord
9Top, Cabinet (Biscuit)
9Top, Cabinet (White)
10Hex Screw, No.10
11Hinge, Top Right
12Hinge, Top Left
13Hinge Assembly, Bottom Right
14Hinge Assembly, Bottom Left
15Screw
16Strike Plate (2)
17Hinge, Center (2)
18Screw
19Hose, Compressor To Tee Fitting
20Hose, Compressor Inlet
21WP596669 Whirlpool Hose Clamp
23Hose, To Circulation Nozzle
24Tee Fitting
25Hose, Tee Fitting To Airdock
28Cam, Right Hinge
29Screw, 8-32 x 3/8
31Cam, Left Hinge
32Grille (Biscuit)
32Grille (White)
33Power Cord
34Strain Relief
