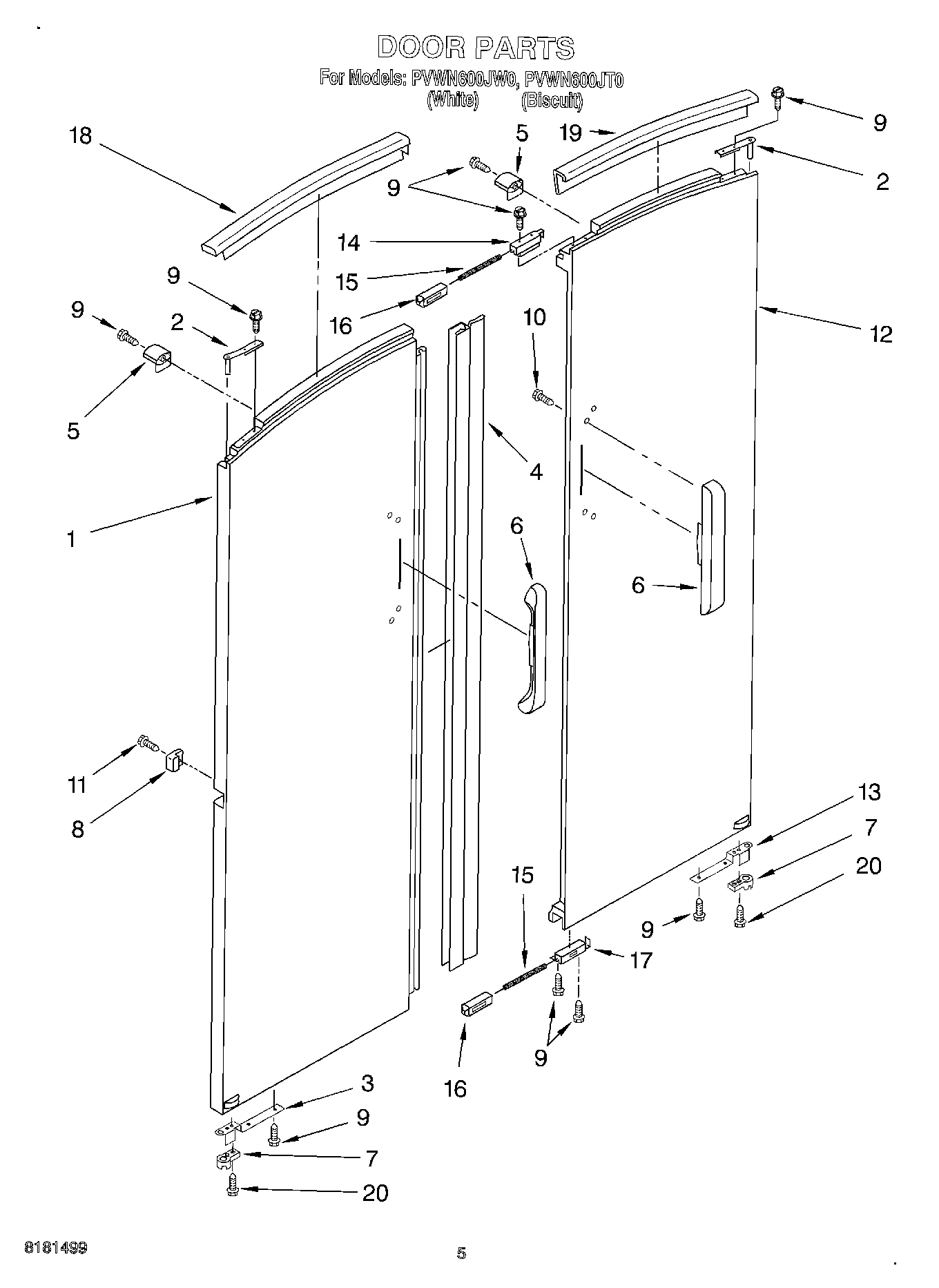

| 1 | Left Door Assembly (Biscuit) |
| 1 | Left Door Assembly (White) |
| 2 | Hinge, Top (2) |
| 3 | Hinge, Bottom Left |
| 4 | Door Gasket |
| 5 | Garment Hook |
| 6 | Handle (2) (Biscuit) |
| 6 | Handle (2) (White) |
| 7 | Door Cam |
| 8 | Bushing, Center Hinge |
| 9 | Screw |
| 10 | Screw |
| 11 | Screw |
| 12 | Right Door Assembly (Biscuit) |
| 12 | Right Door Assembly (White) |
| 13 | Hinge, Bottom Right |
| 14 | Housing, Upper Latch |
| 15 | Spring |
| 16 | Plunger |
| 17 | Housing, Lower Latch |
| 18 | Top Cap, Left Door |
| 19 | Top Cap, Right Door |
| 20 | Screw, 8-32 x 3/8 |
