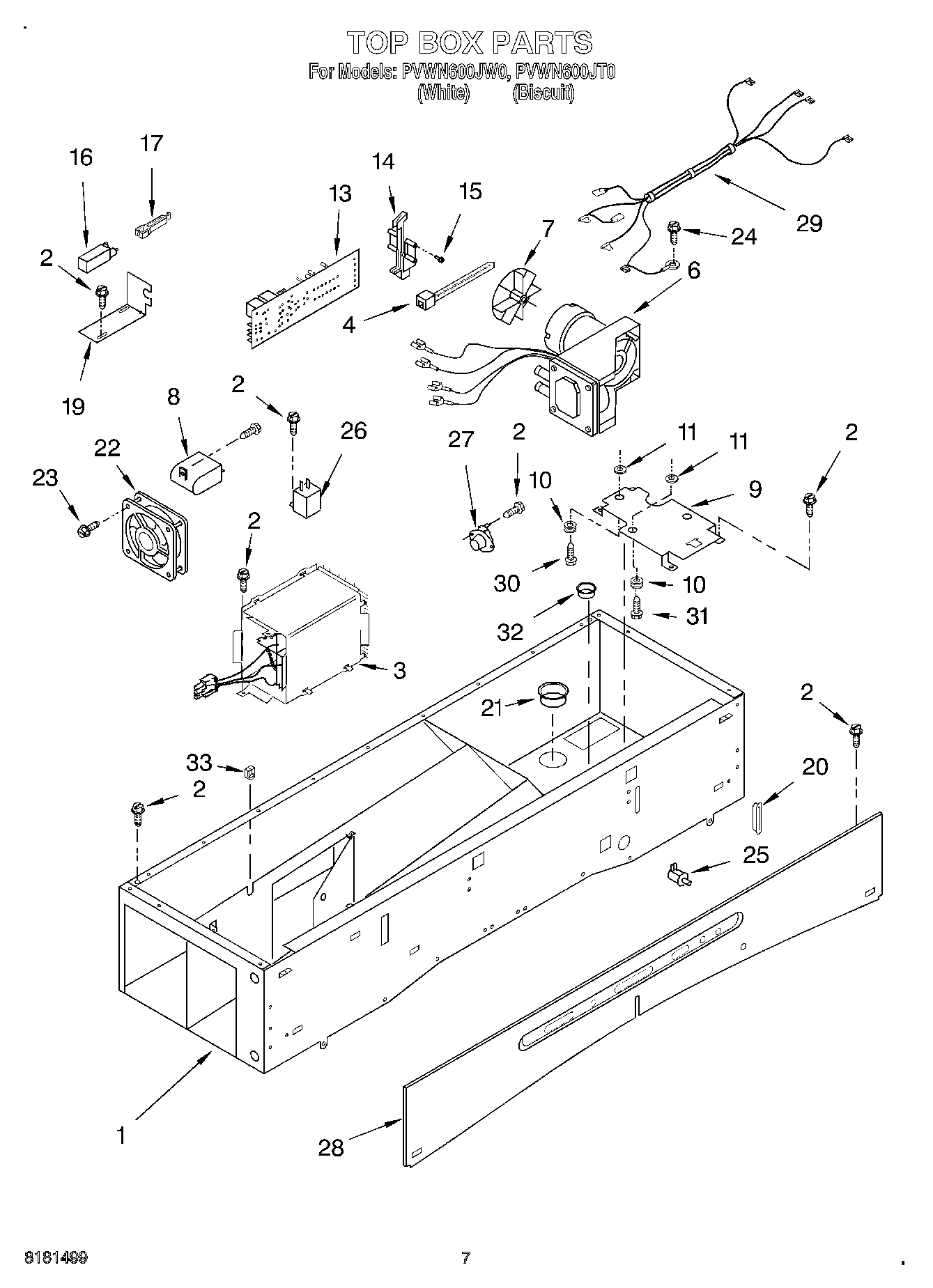

PVWN600JW0 04 – TOP BOX

Products

PositionProduct
1Top Box
2Screw
3Heater Assembly
4Wire Tie
6Compressor (Includes Foam Baffle)
7Fan Blade (Includes Clip)
8WP2201147 Whirlpool Refrigerator Capacitor
9Compressor Mount
10Isolator
118526417 Whirlpool Washer
13Control Board
14Clip, Control Board (2)
15Screw
16Wax Motor
17Link, Wax Motor
19Mount, Wax Motor
20Grommet
21Grommet (2 Inches)
22Fan Motor
23Screw
24Screw (2)
25Interlock Switch
26Buzzer
27Thermistor
28Control Panel
29Wire Harness
30Screw
31Screw (2)
32Tubing, Grommet
33Grommet, Wire
