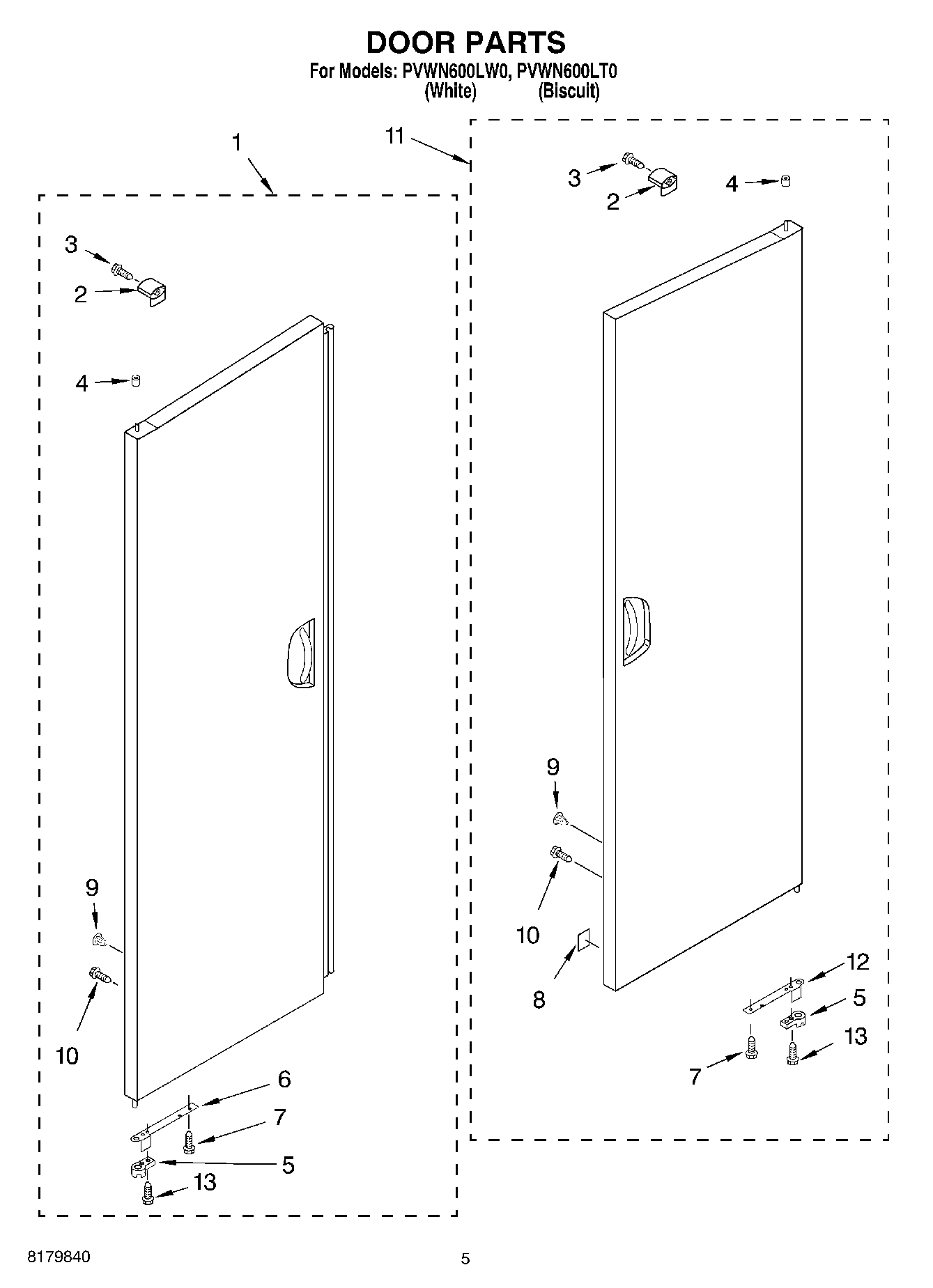

PVWN600LT0 03 – DOOR

PVWN600LT0 03 – DOOR

Written by

in

PVWN600LT0 03 – DOOR

Products

PositionProduct
1Left Door Assembly (Biscuit)
1Left Door Assembly (White)
2Garment Hook
3SCREW
4Bumper, Top Pin
5Door Cam
6Hinge, Bottom Left
7WP308685 Whirlpool Microwave Screw
8Strike Plate (Includes Rivet)
9Plug, Door Liner
103196166 Whirlpool Screw
11Right Door Assembly (Biscuit)
11Right Door Assembly (White)
12Hinge, Bottom Right
13WP8281206 Whirlpool Refrigerator Screw
