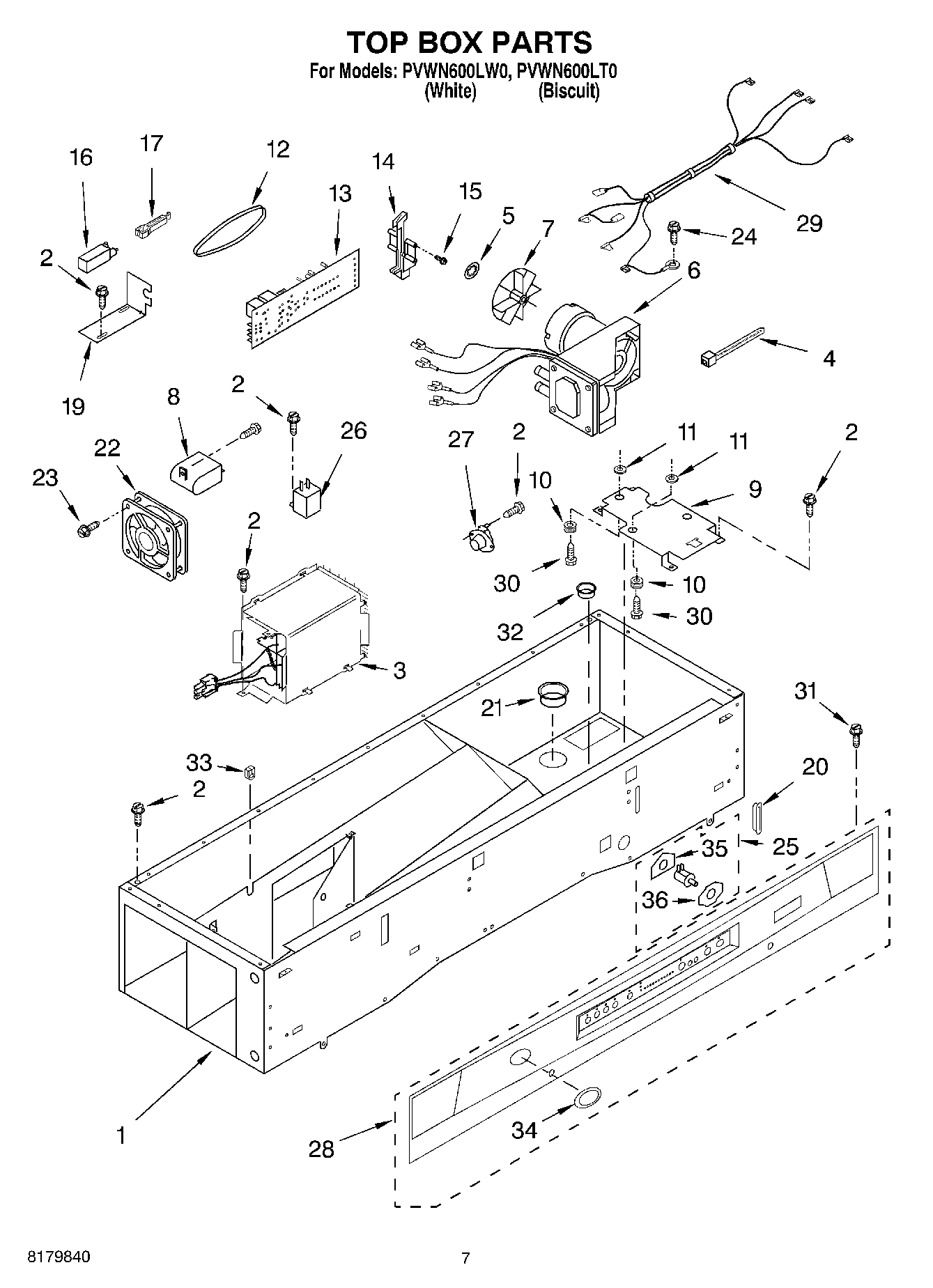

PVWN600LW0 04 – TOP BOX

Products

Position	Product
1	Top Box (Not Serviced)
2	WP489069 Whirlpool Compactor Screw
3	Heater Assembly
4	Wire Tie
5	Clip, Fan Blade
6	Compressor (Includes Foam Baffle)
7	Fan Blade (Includes No. 5)
8	WP2201147 Whirlpool Refrigerator Capacitor
9	Compressor Mount
10	Isolator, Pump Motor (3)
11	8526417 Whirlpool Washer
12	Band, EDPM
13	Control Board
14	Clip, Control Board (2)
15	SCREW
16	Wax Motor
17	Link, Wax Motor
19	Mount, Wax Motor
20	Grommet
21	Grommet (2 Inches)
22	Fan Motor
23	SCREW
24	Ground Screw
25	Interlock Switch
26	BUZZER
27	THERMISTOR
28	Control Panel (White)
28	Control Panel (Biscuit)
29	Wire Harness
30	SCREW
31	WP489464 Whirlpool Refrigerator Screw
32	Tubing, Grommet
33	Grommet, Wire
34	Badge, Assembly
35	Gasket, Switch
36	Wiper, Switch
