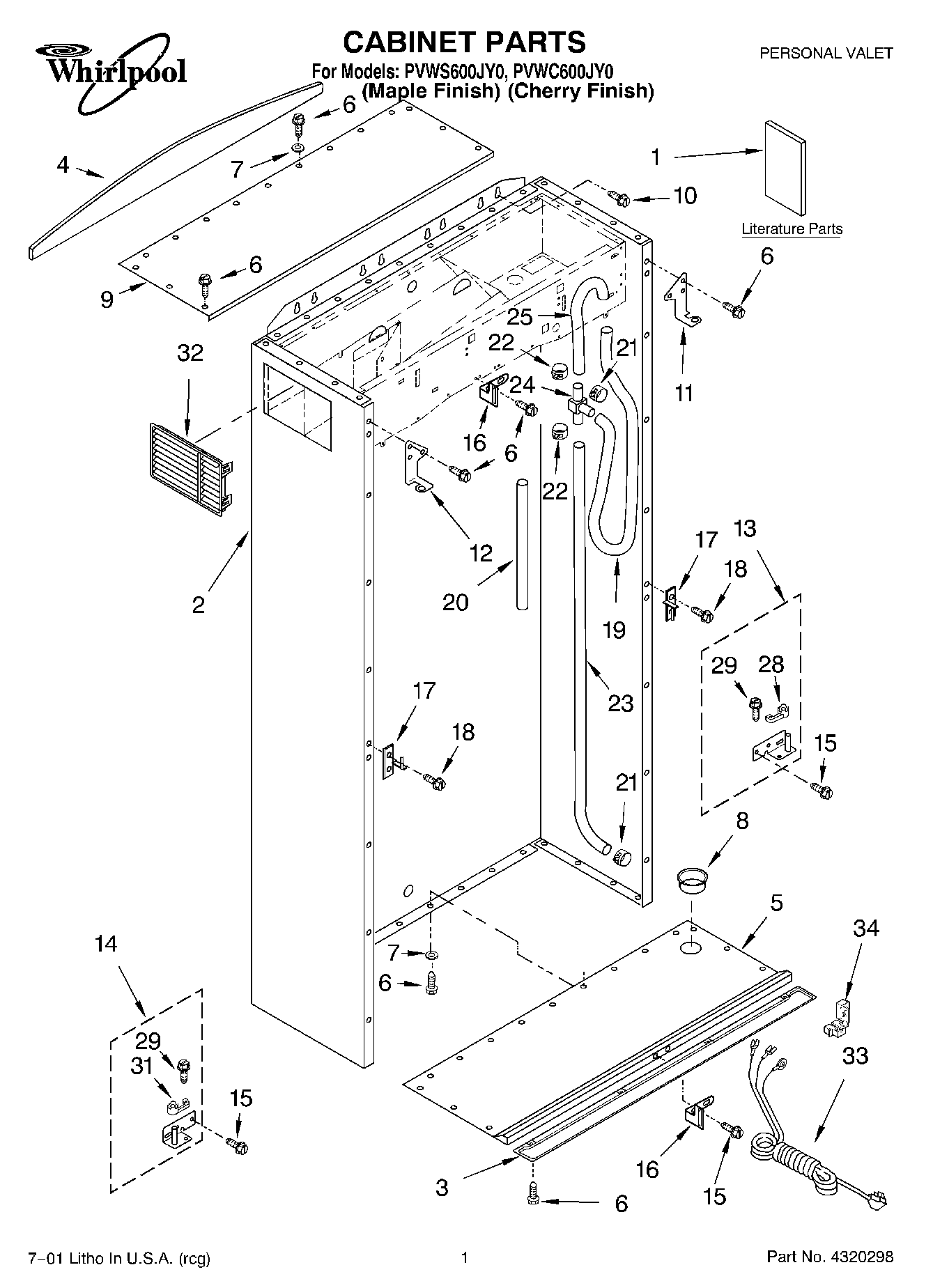

PVWS600JY0 01 – CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
2	Cabinet (Not A Serviceable Part)
3	Drip Tray
4	Cover, Bracket
5	Cabinet, Bottom
6	Screw
7	Washer
8	Grommet, Power Cord
9	Top, Cabinet
10	Hex Screw, No.10
11	Hinge, Top Right
12	Hinge, Top Left
13	Hinge Assembly, Bottom Right
14	Hinge Assembly, Bottom Left
15	Screw
16	Strike Plate (2)
17	Hinge, Center (2)
18	Screw
19	Hose, Compressor To Tee Fitting
20	Hose, Compressor Inlet
21	WP596669 Whirlpool Hose Clamp
23	Hose, To Circulation Nozzle
24	Tee Fitting
25	Hose, Tee Fitting To Airdock
28	Cam, Right Hinge
29	Screw, 8-32 x 3/8
31	Cam, Left Hinge
32	Grille
33	Power Cord
34	Strain Relief
