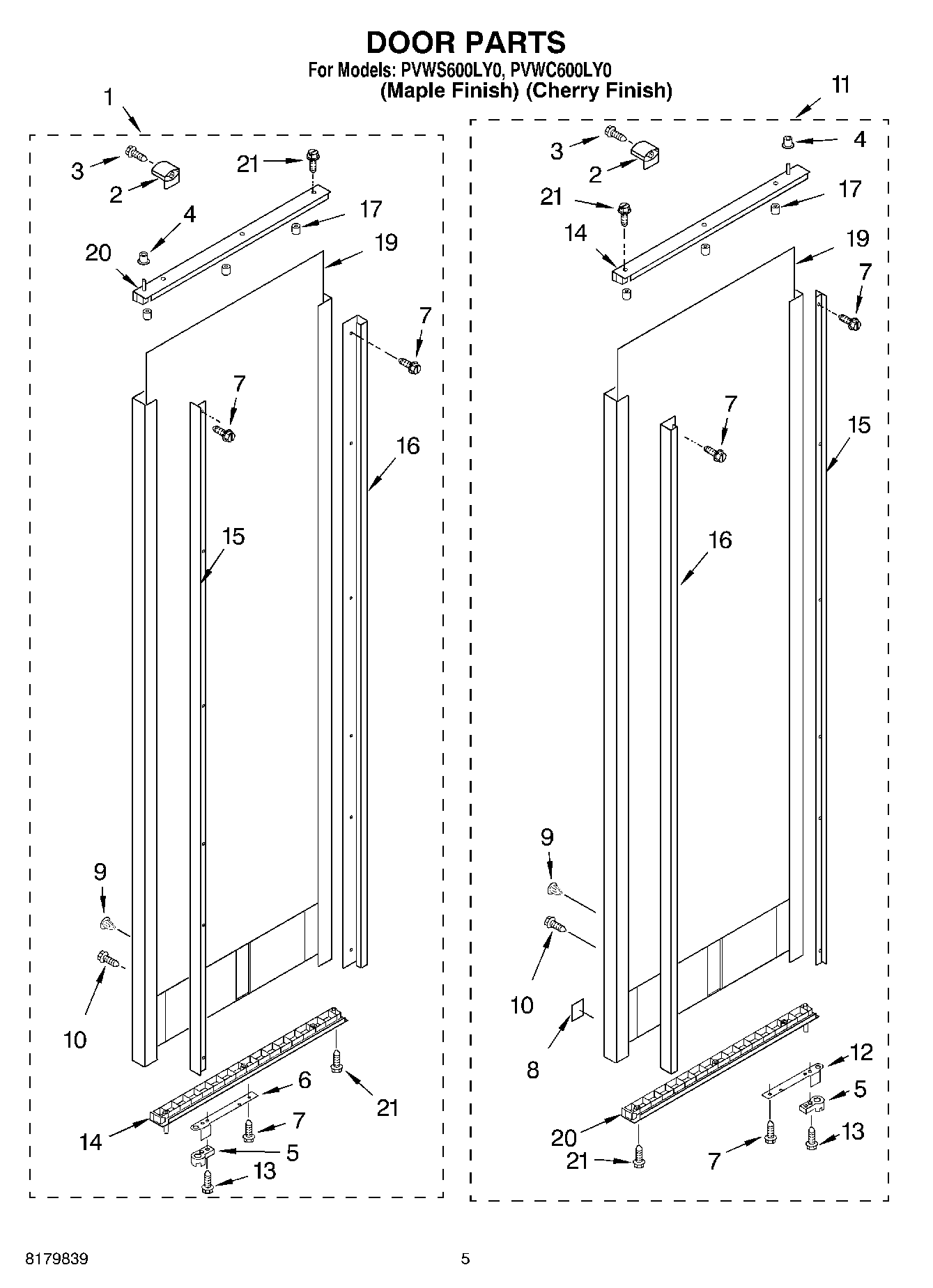

PVWS600LY0 03 – DOOR

PVWS600LY0 03 – DOOR

Written by

in

PVWS600LY0 03 – DOOR

Products

PositionProduct
1Left Door (Cherry)
1Left Door (Maple)
2Garment Hook
3SCREW
4Bumper, Top Pin
5Door Cam
6Hinge, Bottom Left
7WP8281206 Whirlpool Refrigerator Screw
8Strike Plate (Includes Rivet)
9Plug, Door Liner
103196166 Whirlpool Screw
11Right Door (Maple)
11Right Door (Cherry)
12Hinge, Bottom Right
13RIVET
14Endcap (RU/LL)
15Trim, Door Hinge
16Handle, Door
17Spacer, Nylon
19Door Panel (Reversible)
20Endcap (RL/LU)
21Screw
