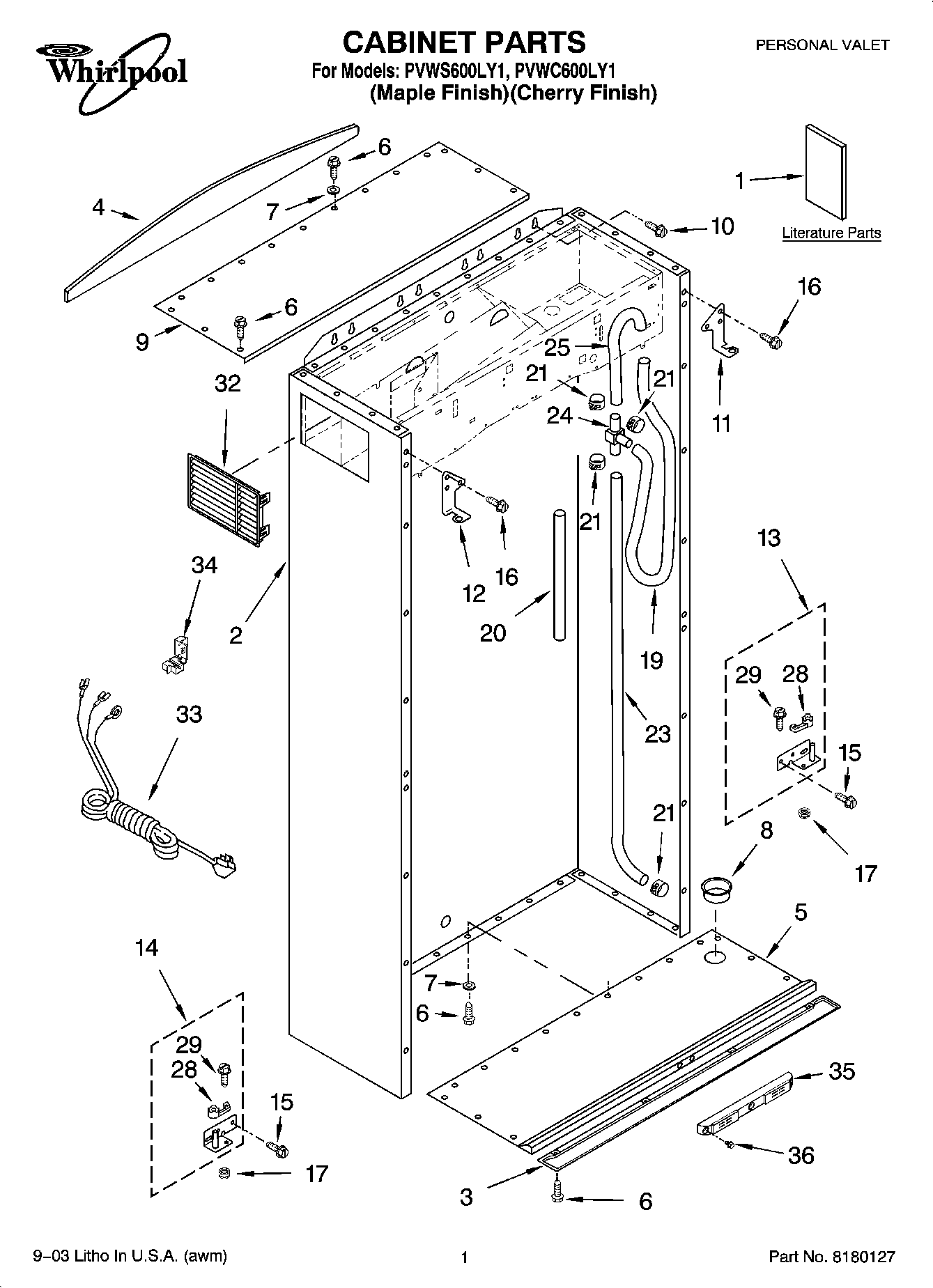

PVWS600LY1 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Video)
1	Literature Parts (Use & Care Guide)
2	Cabinet (Not Serviced)
3	Drip Tray
4	Cover, Bracket
5	Cabinet, Bottom
6	SCREW
7	Washer
8	Grommet, Power Cord
9	Top, Cabinet
10	Bolt, 1/4 x 2
10	WP487939 Whirlpool Refrigerator Nut
11	Hinge, Top Right
12	Hinge, Top Left
13	Hinge Assembly, Bottom Right
14	Hinge Assembly, Bottom Left
15	WP3400861 Whirlpool Screw
16	WP489464 Whirlpool Refrigerator Screw
17	Nut, Nylon (2)
19	Hose, Compressor To Tee Fitting
20	Inlet, Compressor Silencer
21	WP596669 Whirlpool Hose Clamp
23	Hose, Tee to Circulation Nozzle
24	Tee Fitting
25	Hose, Tee Fitting To Airdock
28	Cam, Hinge
29	Screw, 8-32 x 3/4
32	Grill
33	Power Cord
34	Strain Relief
35	Magnet Assembly
36	FOLLOWING PARTS NOT ILLUSTRATED
36	Pad, Cabinet Leveling
36	WP8281206 Whirlpool Refrigerator Screw
36	Bracket, Wall Mount
