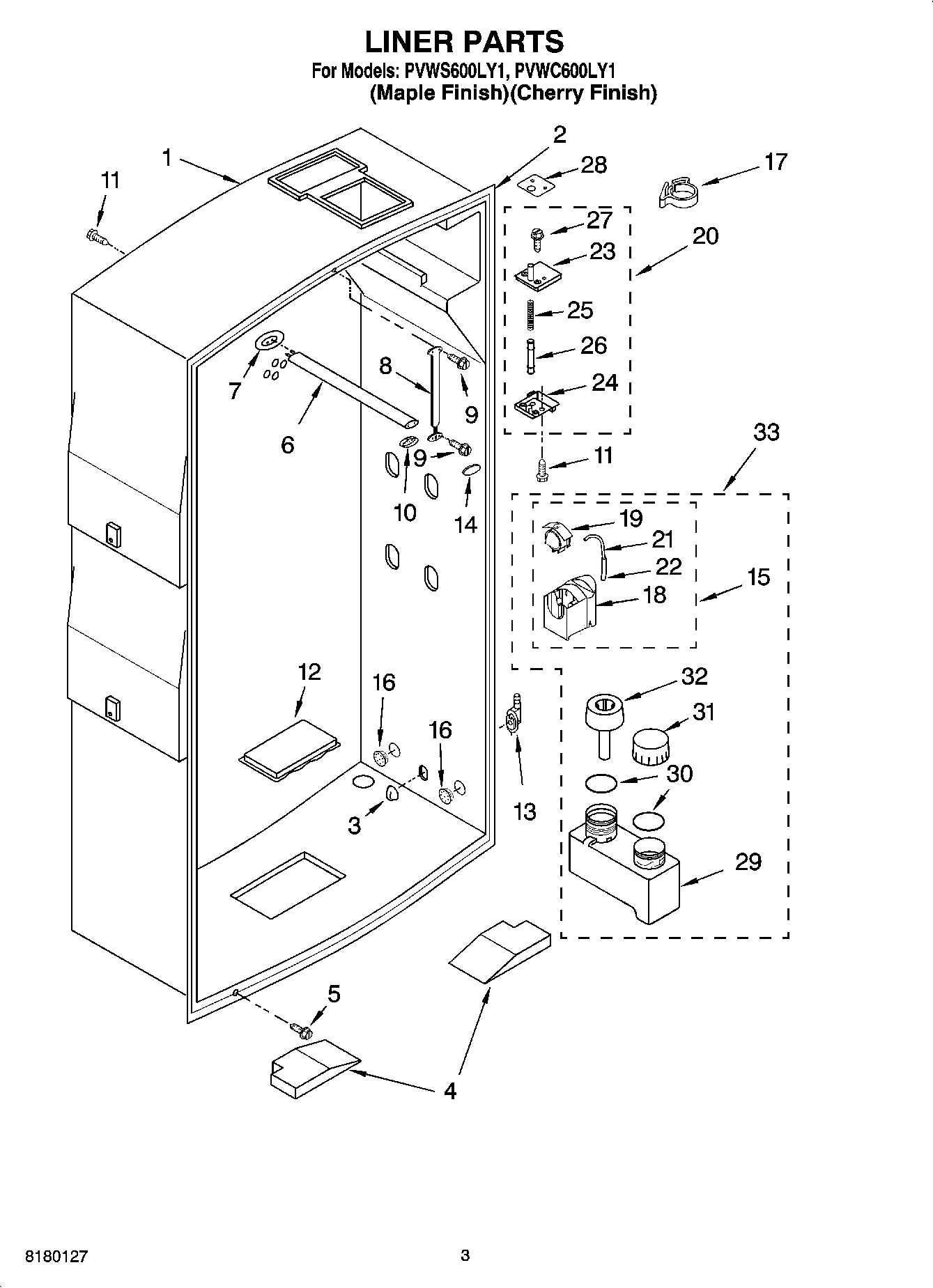

PVWS600LY1 02 – LINER PARTSadmin2025-04-26T12:46:42+00:00PVWS600LY1 02 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner |
| 2 | Gasket |
| 3 | Circulation Nozzle |
| 4 | Support, Bottom |
| 5 | SCREW |
| 6 | Hanger Bar |
| 7 | Base, Hanger Bar |
| 8 | Support, Hanger Bar |
| 9 | SCREW |
| 10 | End Cap, Hanger Bar |
| 11 | Ground Screw |
| 12 | Grill, Sump |
| 13 | Base, Circulation Nozzle |
| 14 | Insert, End Cap |
| 15 | Assembly, Fluid Nozzle |
| 16 | Plug, Vent (2) |
| 17 | Clamp, Nylon (Air Fitting) |
| 18 | COVER |
| 19 | Fluid Nozzle |
| 20 | Airdock Assembly |
| 21 | Siphon Tube |
| 22 | Fluid Filter |
| 23 | Base, Airdock |
| 24 | AIRDOCK |
| 25 | Spring |
| 26 | Air Fitting |
| 27 | SCREW |
| 28 | Gasket |
| 29 | Cartridge |
| 30 | O-Ring |
| 31 | Fill Cap |
| 32 | Cartridge Insert |
| 33 | Vertical (2) |
| 33 | Cartridge Assembly |
| 33 | Retainer, Gasket |
| 33 | FOLLOWING PARTS NOT ILLUSTRATED |
| 33 | Horizontal (2) |
