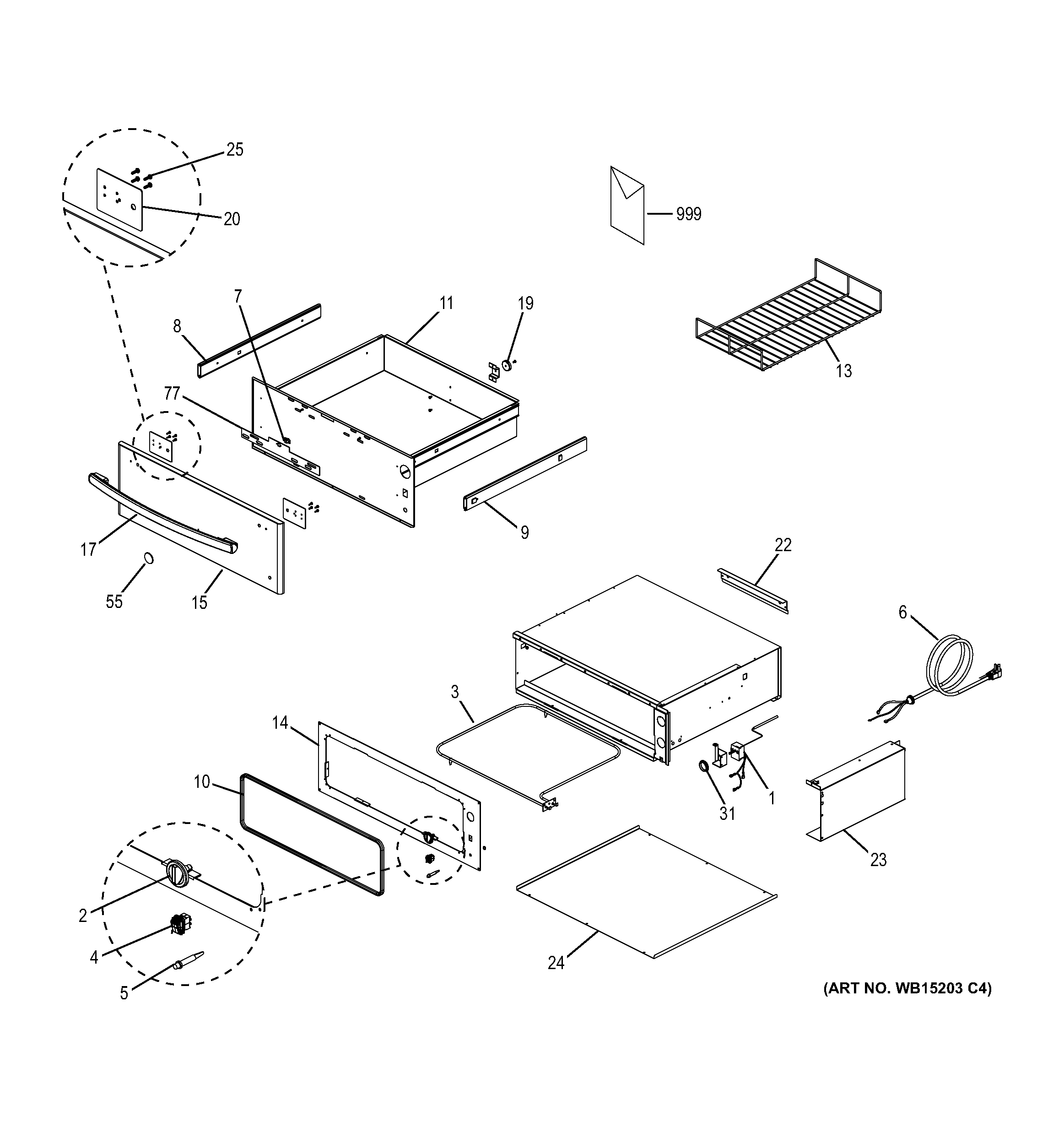

PW9000SF1SS WARMING DRAWER

Products

Position	Product
1	THERMOSTAT
2	GEN WB03X10349
3	WB44X10029 GE Oven Heating Element
4	WB24X10206 GE Oven Rocker Switch
5	GEN WB02X10819
6	GEN WB02X10588
7	KNOB, VENT SLIDE
8	GEN WB39X10014
9	GEN WB39X10015
10	GEN WB02X11289
11	GEN WB63X21841
13	WB48X10045 GE Wire Rack
14	WB56X20217 GE Face Panel Assembly 30"
15	GEN WB56X20218
17	WB15X27281 GE Oven Handle and End Cap Assembly
19	WB02X10592 GE Magnet Closed Detent
20	GEN WB02X11552
22	GEN WB02X11553
23	WB02X11551 GE Oven Warming Drawer Control Panel
24	WB56X10780 GE Oven Bottom Cover 30 Inch
25	WB01X20209 GE Sems 10-32 x 3/4 SS
31	WB32X10019 GE Oven Black Valve Hole Grommet
55	WB02T10589 GE Range Gray Nameplate Badge
77	GEN WB06X10692
999	USE & CARE MANUAL
