PWL1126SW1SS MICROWAVE

Products

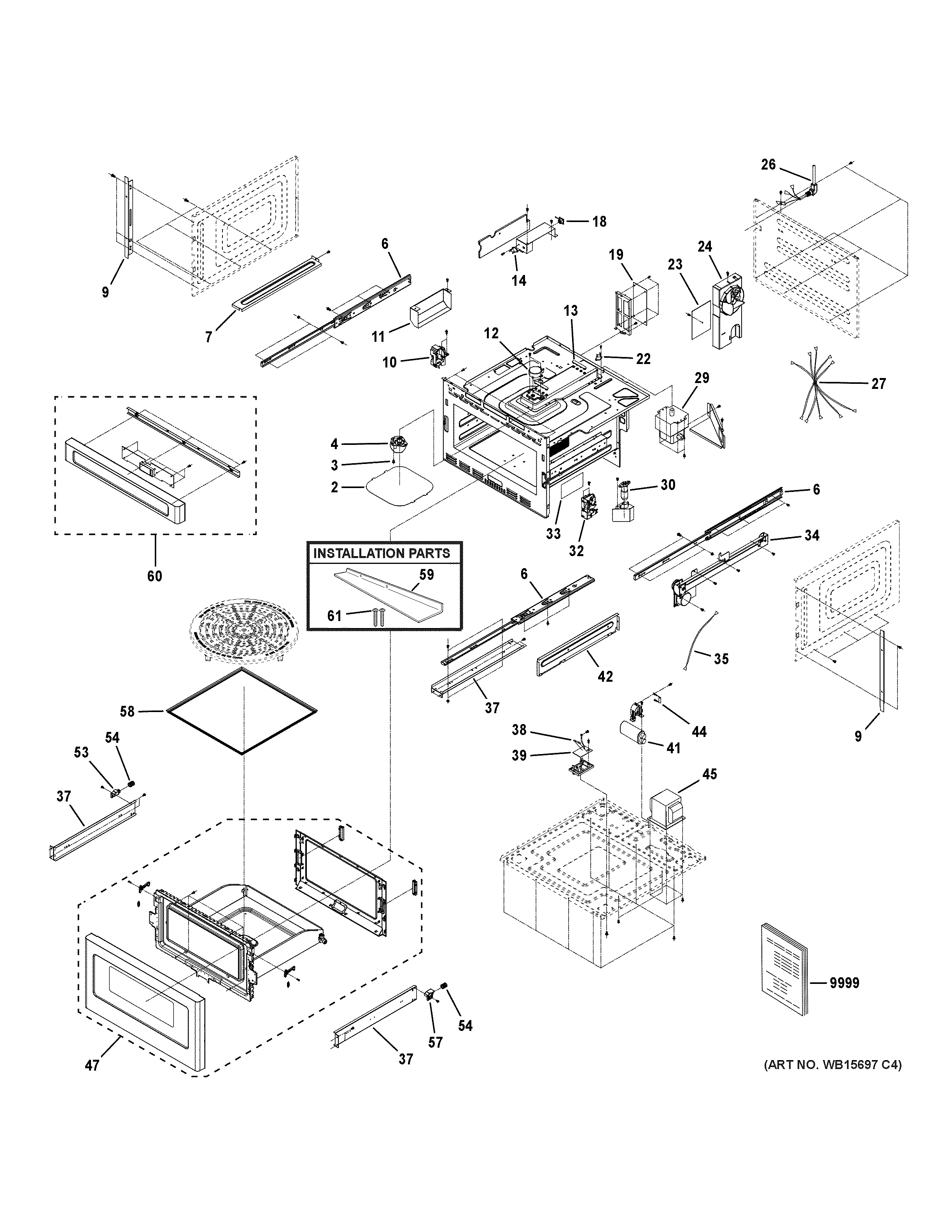

Position	Product
2	SPLASH COVER
3	Plastic Nail
4	ASS'Y STIRRER
6	WB27X42509 GE Slider Assembly
7	METAL DAMPER *LEFT
9	MOUNTING PLATE
10	WB27X42512 GE Left Interlock Assembly
11	METAL WIND GUIDE COVER*LOWER
12	TURNTABLE MOTOR
13	WAVE GUIDE COVER
18	WB24X21307 GE Humidity Sensor Assembly
19	WB27X42527 GE Power Circuit Board
22	THERMOSTAT
23	WB27X42538 GE Power Circuit Board
24	ASS'Y FAN
26	WB27X42536 GE Power Cord
27	MAIN WIRE HARNESS
29	WB27X42537 GE Magnetron
30	BULB
32	WB27X42586 GE Right Interlock Assembly
33	LAMP COVER
34	WB27X42528 GE DC Motor Assembly
35	MAIN WIRE HARNESS
37	SLIDER SUPPORTER PLATE
38	FUSE
39	WB27X42540 GE Noise Filter
41	WB26X28934 GE Microwave Capacitor
42	METAL DAMPER *RIGHT
44	WB27X25616 GE Oven High Voltage Diode
45	WB27X42544 GE High Voltage Transformer
47	DOOR ASM (ASS'Y DOOR)
53	FIXING BRKT *LEFT
54	WB27X42546 GE Spring
57	WB27X42534 GE Right Fixing Bracket
58	ASS'Y INSULATOR HEAT
59	FLUSH MOUNT DEFLECTOR
60	CONTROL ASM (ASS'Y CONTROL)
61	INSTALATION SCREWS
9999	PM MINI MANUAL AND WIRING
9999	PRINTED AND ONLINEINSTALL INSTRUCTIONS
9999	PRINTED AND ONLINEOWNERS MANUAL
