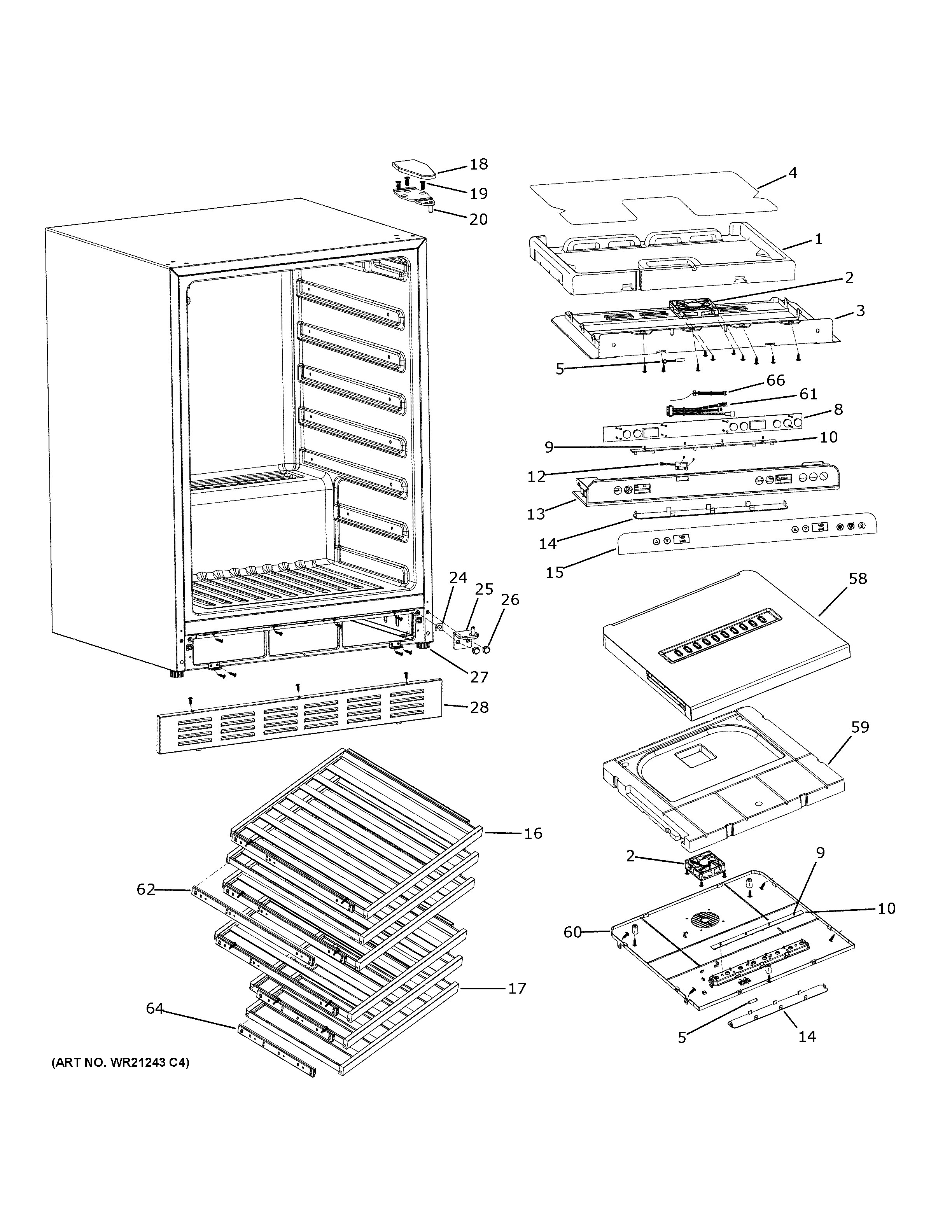

PWS06DSPCSS CABINET & SHELVES

Products

Position	Product
1	AIR DUCT
2	WR60X35407 GE Refrigerator Evaporator Fan
3	AIR DUCT COVER
4	ALUMINUM SHIELD
5	WR55X35411 GE Refrigerator Thermistor
8	UI PC BOARD
9	SCREW
10	LED LIGHT
12	LIGHT REED SWITCH
13	UI HOUSING
14	LED LIGHT COVER
15	WR55X36030 GE User Interface Overlay
16	SHELF – FULL DEPTH
17	SHELF – HALF DEPTH
18	TOP HINGE COVER
19	SCREW
20	TOP HINGE
24	BOTTOM HINGE SHIM
25	BOTTOM HINGE
26	SCREW
27	LEVELING LEG
28	STAINLESS STEEL TOE KICK
58	MULLION TOP COVER
59	MULLION AIR DUCT EPS
60	MULLION LOWER COVER
61	MULLION WIRE HARNESS
62	FULL LENGTH SLIDE ASM
64	HALF LENGTH SLIDE ASM
66	UI HARNESS EXTENSION
