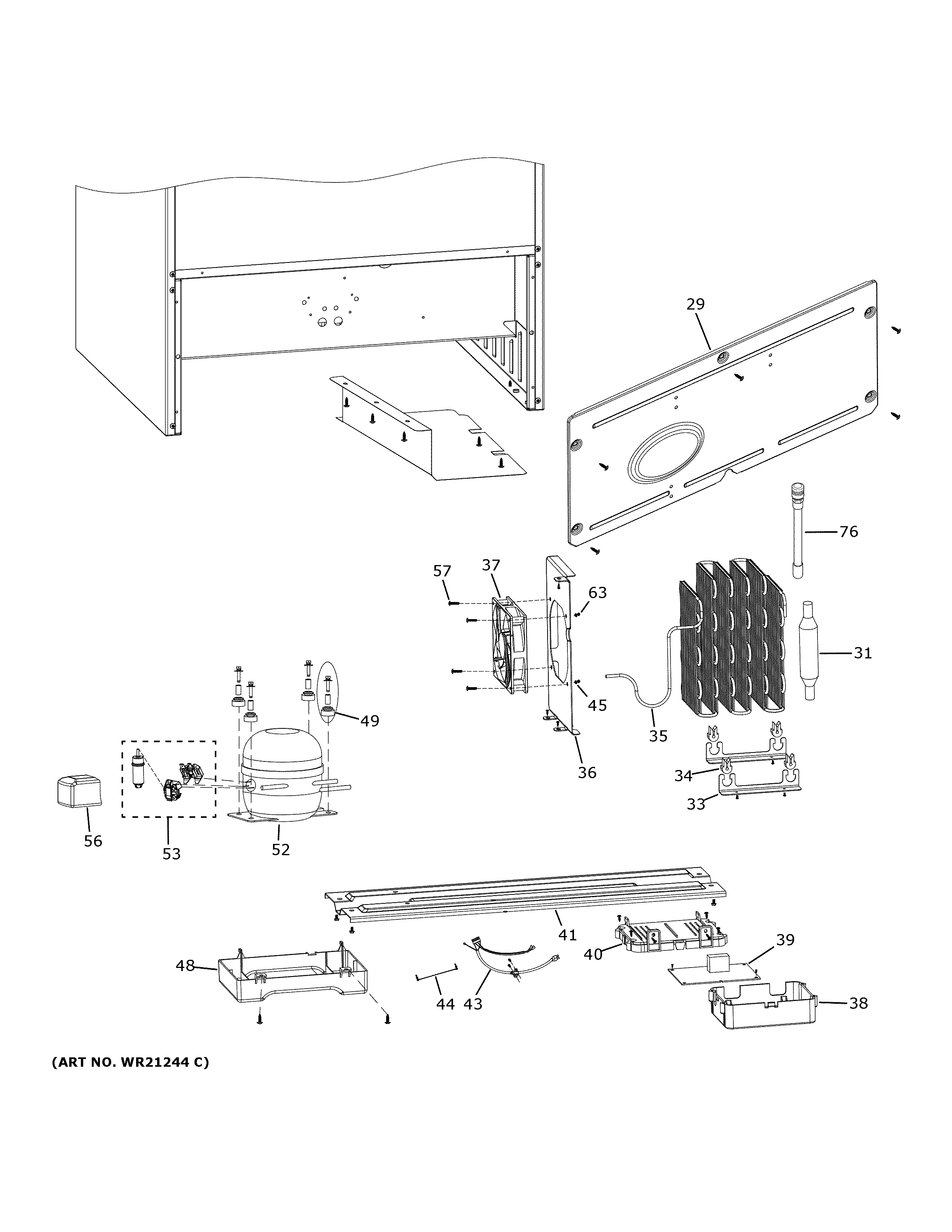

PWS06DSPCSS MACHINE COMPARTMENT

Products

Position	Product
29	MACHINE COVER
31	DRIER FILTER
33	CONDENSER MOUNTING BRACKET
34	RUBBER GROMMET
35	CONDENSER
36	CONDENSER FAN BRACKET
37	WR60X35410 GE Fan Condenser
38	MAIN BOARD HOUSING
39	MAIN CONTROL BOARD
40	MAIN BOARD COVER
41	COMPRESSOR BASE PLATE
43	POWER CORD
44	GROUNDING WIRE
45	NUT
48	DRAIN PAN
49	COMPRESSOR MOUNTING ASM
52	COMPRESSOR
53	COMPRESSOR ELECTRICALS
56	WR87X32902 GE Compressor Electrical Cover
57	CONDENSER FAN SCREW
63	LOCK WASHER
76	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
