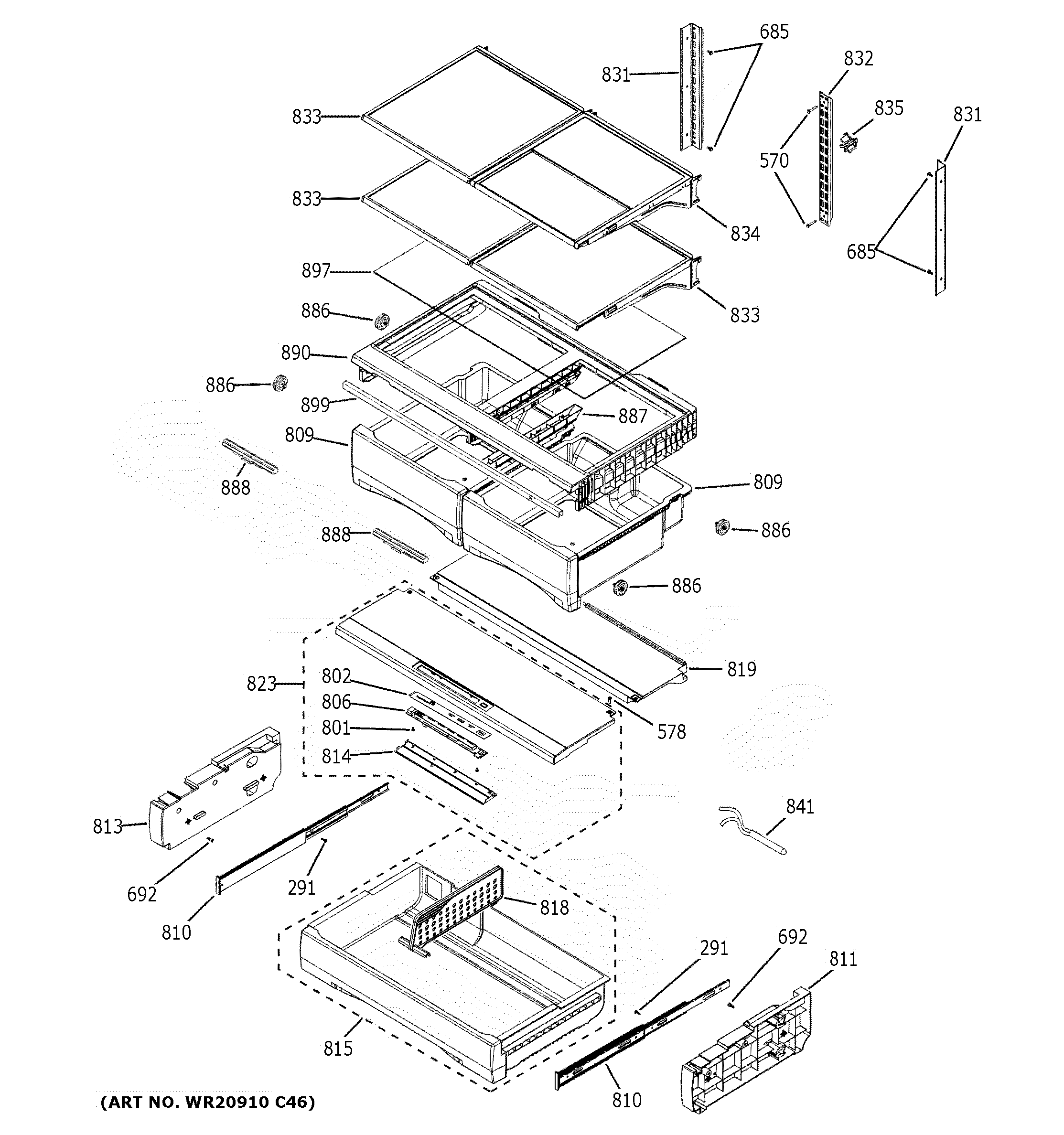

PYD22KBLLTS FRESH FOOD SHELVES

PYD22KBLLTS FRESH FOOD SHELVES

Written by

in

PYD22KBLLTS FRESH FOOD SHELVES

Products

PositionProduct
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
578WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
692SCREW
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
802WR04X23038 GE Refrigerator Meat Pan Overlay Assembly
806WR55X31590 GE Deli Pan Board
809WR32X10912 GE Refrigerator Right Hand Vegetable Pan Assembly
810WR72X29093 GE Refrigerator Meat Pan Slide
811WR72X10448 GE Refrigerator Support Side Right Hand
813WR72X10450 GE Refrigerator Support Side Left Hand
814WR32X40765 GE Meat Pan Diffuser
815WR32X10884 GE Refrigerator Meat Pan Assembly
818WR17X13193 GE Refrigerator Meat Pan Divider
819WR72X31329 GE Refrigerator Deli Pan Top Rear Cover
823WR32X30867 GE Refrigerator Deli Pan Board and Top Cover
831WR72X21071 GE Refrigerator Side Track
832WR72X10429 GE Refrigerator Center Track
833WR32X10916 GE Shelf Assembly
834WR32X10915 GE Refrigerator Shelf Assembly Tuckaway
835WR02X13679 GE Refrigerator Track Spacer
841WR55X10025 GE Refrigerator Temperature Sensor
886WR02X13658 GE Refrigerator Roller Assembly
887WR72X10447 GE Vegetable Pan Guide Roller
888WR17X24925 GE Refrigerator Damper Vegetable Pan
890WR32X10910 GE Refrigerator ART Frame Assembly
897WR32X10911 GE Refrigerator Glass Shelf
899WR02X21803 GE Refrigerator Bar Reinforcement
