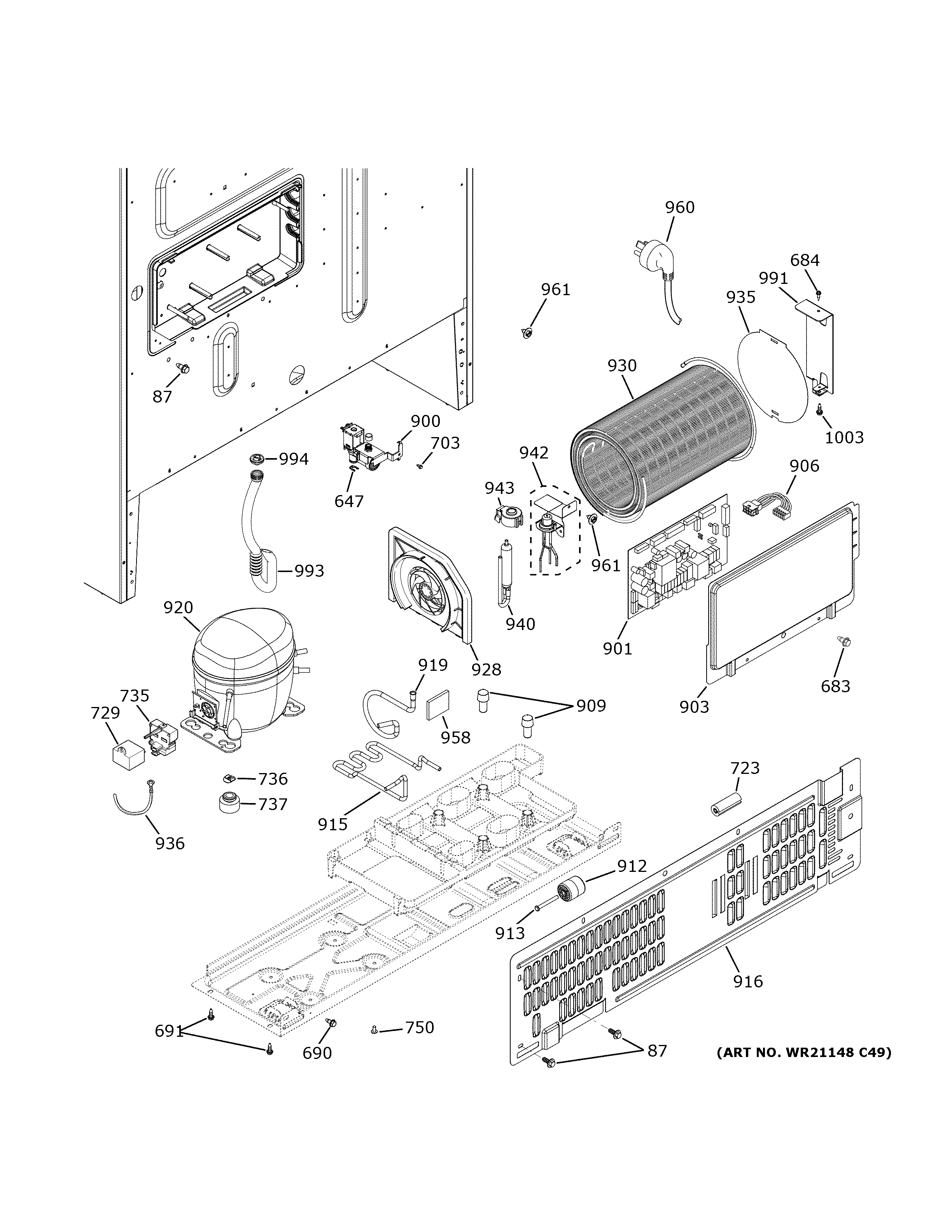

PYE22KBLQTS MACHINE COMPARTMENT

PYE22KBLQTS MACHINE COMPARTMENT

Written by

in

PYE22KBLQTS MACHINE COMPARTMENT

Products

PositionProduct
87WR02X36891 GE Screw ST3.9-1.4 Ab IHXWT20
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
683WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
690WZ5X158D GE Screw Package of 12
691SCREW ST5.5-1.8 AB IHXW 20 S
703WR02X36721 GE Screw St4.0-1.4 Ab Ihxwt20 20
723WR14X10055 GE Refrigerator Slit Grommet Tubing
729WR55X24064 GE Refrigerator Run Capacitor
735WR07X10131 GE Refrigerator Overload
736WR02X28299 GE Refrigerator Compressor Mounting Clip
737COMPRESSOR GROMMET
750WR1X1786 GE Refrigerator Screw
900VALVE WATER ISO ASM
901BOARD ASM MAIN REFLASHED
903WR02X25126 GE Refrigerator Mainboard Cover
906WR55X37309 GE Personality Jumper
909CONDENSER SUPPORT
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
915WR84X34173 GE Refrigerator Compressor Discharge Jumper
916WR82X37208 GE Refrigerator Rear Access Cover
919SUCTION JUMPER TUBE MEIZHI
920COMPRESSOR MEIZHI
928WR60X37209 GE Fan Assembly Gasket
930WR84X38825 GE Refrigerator Condenser
935WR17X13045 GE Refrigerator Baffle Condenser Air
936REFRIGERATOR HARNESS GROUND
940WR87X30875 GE Refrigerator R600 Dryer with Red Cap
943VALVE BODY ASM
958WR02X13724 GE Refrigerator Sound Deadening Mastic
960WR23X24389 GE Refrigerator Power Cord Harness
961WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
991CONDENSER STRAP
993WR02X28514 GE Refrigerator Drain Tube
994WR01X28515 GE Refrigerator Drain Vacuum BR
1003WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
