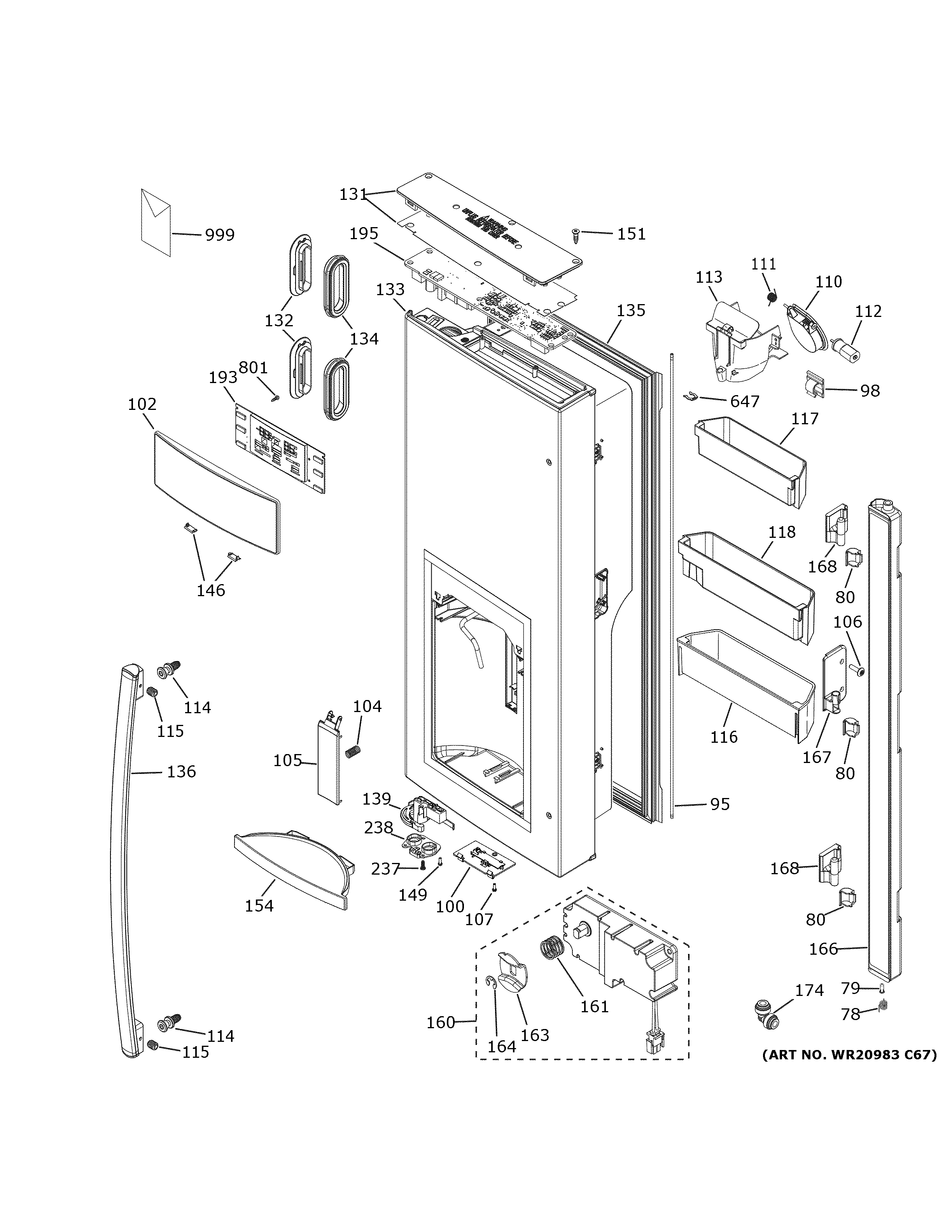

PYE22KYNBFS DISPENSER DOOR

PYE22KYNBFS DISPENSER DOOR

Written by

in

PYE22KYNBFS DISPENSER DOOR

Products

Position	Product
78	WR01X11052 SPRING HINGE MULLION
79	WR01X11053 GE Refrigerator Sleeve Spring Mullion
80	WR02X13739 GE Refrigerator Hinge Cap
95	WR02X32127 GE Refrigerator PEX Water Line
98	WR01X11064 GE Refrigerator Plastic Clip
100	COVER LED FZ ASM
102	WR17X27465 GE Refrigerator Cap Touch Autofill Stainless
104	WR01X11027 GE Refrigerator Spring
105	WR17X26308 GE Refrigerator Paddle and Autofill Switch
106	WR01X11054 GE Refrigerator Screw 8-18 FLP 1/2"
107	WR01X11029 GE Refrigerator Screw 8-18 FLP 1/2"
110	WR17X13241 GE Refrigerator Door
111	WR01X11017 GE Refrigerator Duct Door Spring
112	WR60X10344 GE Refrigerator Duct Door Motor
113	WR17X30651 GE Refrigerator Ice Funnel Single Tube
114	WR01X11007 GE Refrigerator Fastener Door Handle
115	WR01X11014 GE Refrigerator Set Screw
116	WR71X24976 GE Ice Bin Bottom Door
117	WR71X11045 GE Bin Door Shelf
118	WR71X11046 GE Refrigerator Left Hand Middle Door Ice Bin
131	WR17X13205 GE Refrigerator Printed Circuit Board Cover Assembly DGY
132	WR14X25124 GE Refrigerator Collar Port
133	WR78X37452 GE Refrigerator Left Hand Door
134	WR14X10364 GE Refrigerator Port Gasket
135	WR14X29300 GE Refrigerator Door Gasket Dorian Gray
136	WR12X31641 GE Refrigerator Stainless Handle
139	WR11X38266 GE Refrigerator Door Closure Left Hand
146	WR02X13655 GE Refrigerator LED Light Shield
149	WR01X10196 GE Refrigerator Screw 8-18 HID02
151	WR01X11028 GE Screw Flat 8-18 1/2
154	WR17X34477 GE Refrigerator Silver Drip Tray
160	WR49X10322 GE Refrigerator Ice Bucket and Motor Kit
161	WR02X13645 GE Refrigerator Clutch Spring Assembly
163	WR02X13647 GE Refrigerator Clutch Coupling AM
164	WR02X13648 GE Refrigerator E-Clip
166	WR17X13240 ARTICULATING MULLION, GRAY
167	WR13X10984 GE Refrigerator Hinge Center Mullion
168	WR13X10985 GE Refrigerator Fresh Food Door Hinge Assembly
174	WR02X13737 GE Refrigerator Connector 90 DEG 5/16
193	PCBA AGATHOS 2021 AF
195	REFRIGERATOR DOOR BOARD PROFIL
237	WR01X11032 GE Refrigerator Screw
238	WR02X13634 GE Refrigerator Door Stop Assembly RH/LH
647	WR01X11041 GE Refrigerator Quick Clip Connector 1/4
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
999	PM QUICK USE & CARE
999	PM MINI MANUAL AND WIRING
