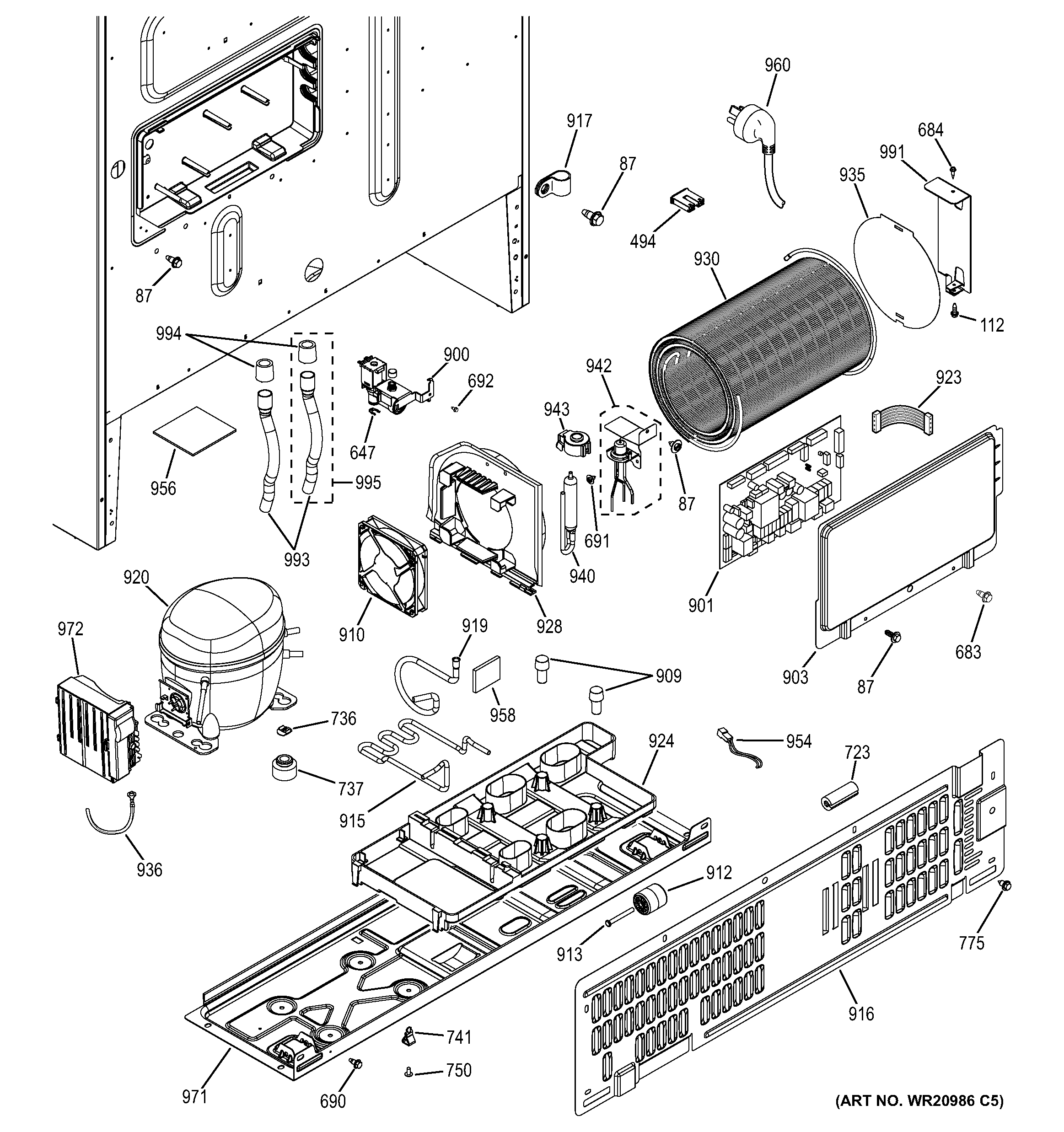

PYE23KSDASS MACHINE COMPARTMENT

PYE23KSDASS MACHINE COMPARTMENT

Written by

in

PYE23KSDASS MACHINE COMPARTMENT

Products

PositionProduct
112WR60X10344 GE Refrigerator Duct Door Motor
494WD1X1459 GE Dishwasher Insulation Housing
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
683WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
690WZ5X158D GE Screw Package of 12
691SCR 12-24TT BHT20 .700 S
692SCREW
723WR14X10055 GE Refrigerator Slit Grommet Tubing
736WR2X8583 GE Refrigerator Clip
737WR02X13719 GE Refrigerator Compressor Grommet
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
900WATER VALVE ISO ASSM
901BOARD ASM MAIN REFLASHED
903WR02X25126 GE Refrigerator Mainboard Cover
909WR02X13668 GE Condenser Support
910WR60X10358 GE Refrigerator Condenser Fan Motor Assembly
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
915JUMPER COMP DISCHARGE
916WR82X37208 GE Refrigerator Rear Access Cover
917CLAMP TUBE
919TUBE SUCTION JUMPER
920WR87X10199 GE Refrigerator Compressor Kit Inverter
923HARNESS PERSONALITY
924PAN DRAIN
928WR17X13046 GE Refrigerator Plenum Condenser Fan Assembly
930WR84X10115 GE Refrigerator Condenser Assembly Formed
935WR17X13045 GE Refrigerator Baffle Condenser Air
936HARNESS GROUND
940DRYER FILTER
943VALVE BODY ASM
954WR23X10768 GE Doghouse Harness
956WR02X13713 GE Refrigerator Mastic Pad
958WR02X13724 GE Refrigerator Sound Deadening Mastic
960WR23X10744 GE Refrigerator Power Cord
971BASE COMPRESSOR
972WR87X29409 GE Refrigerator Inverter Compressor Control Board
991WR02X13622 GE Refrigerator Condenser Bracket
993WR02X28554 GE Refrigerator Drain Tube and Valve
994CHECK VALVE
