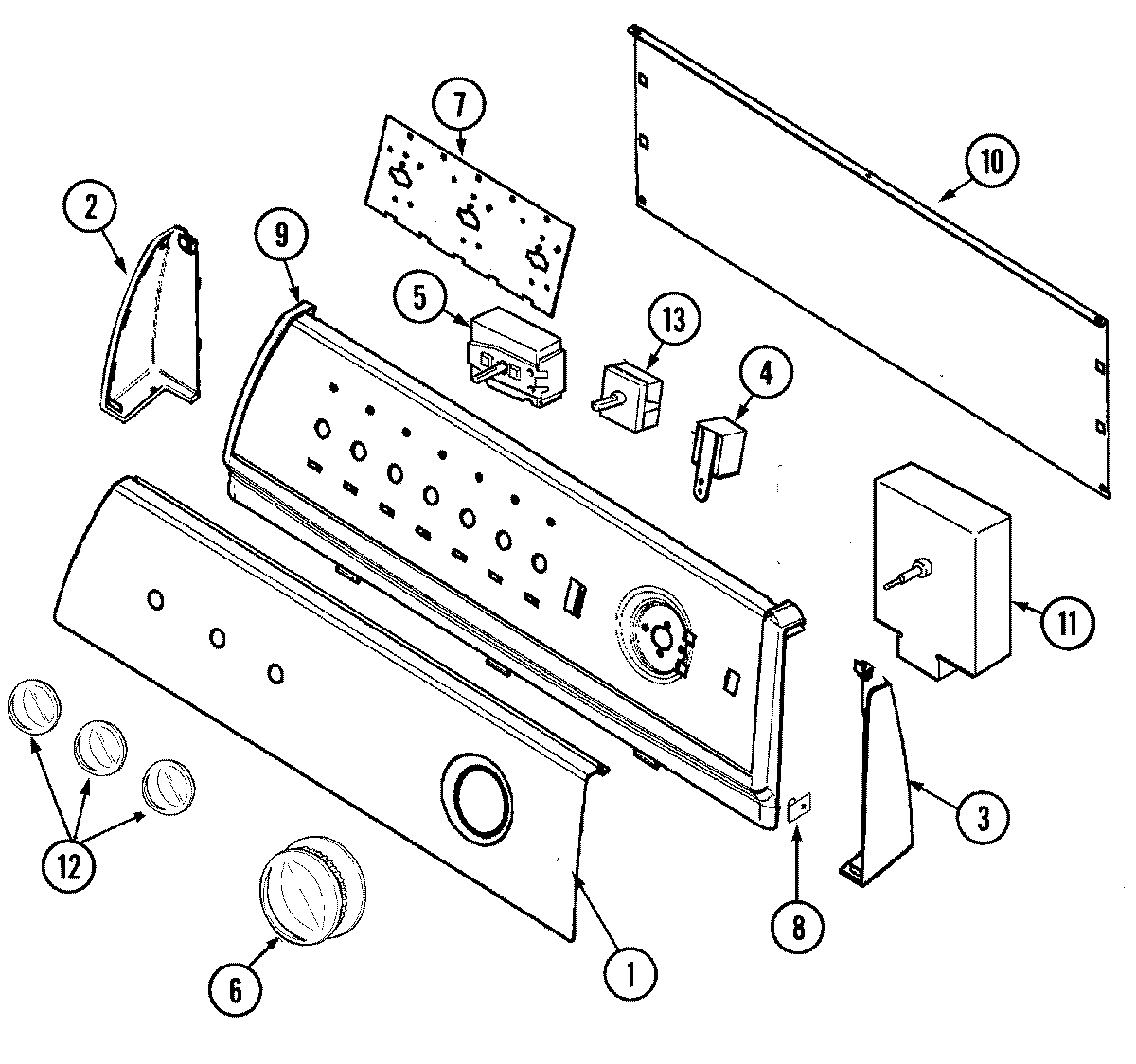

PYE3200AYW 02 – CONTROL PANEL

PYE3200AYW 02 – CONTROL PANEL

Written by

in

PYE3200AYW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 31001389
2MAY 21001519
3MAY 21001523
4MAY 31001397
5MAY 31001399
5MAY 31001398
6WP37001184 Whirlpool Timer Knob
7MAY 31001193
7MAY 53-2504
7MAY 21001603
8MAY 25-7851
9MAY 21001604
10MAY 25-3457
10MAY 21001527
11WP31001513 Whirlpool Timer
11MAY 63-6743
12MAY 21001525
13MAY 31001190
13WP90767 Whirlpool Screw
14MAY 16009627
14MAY 21001419
14MAY 16008334
15MAY 12002417
