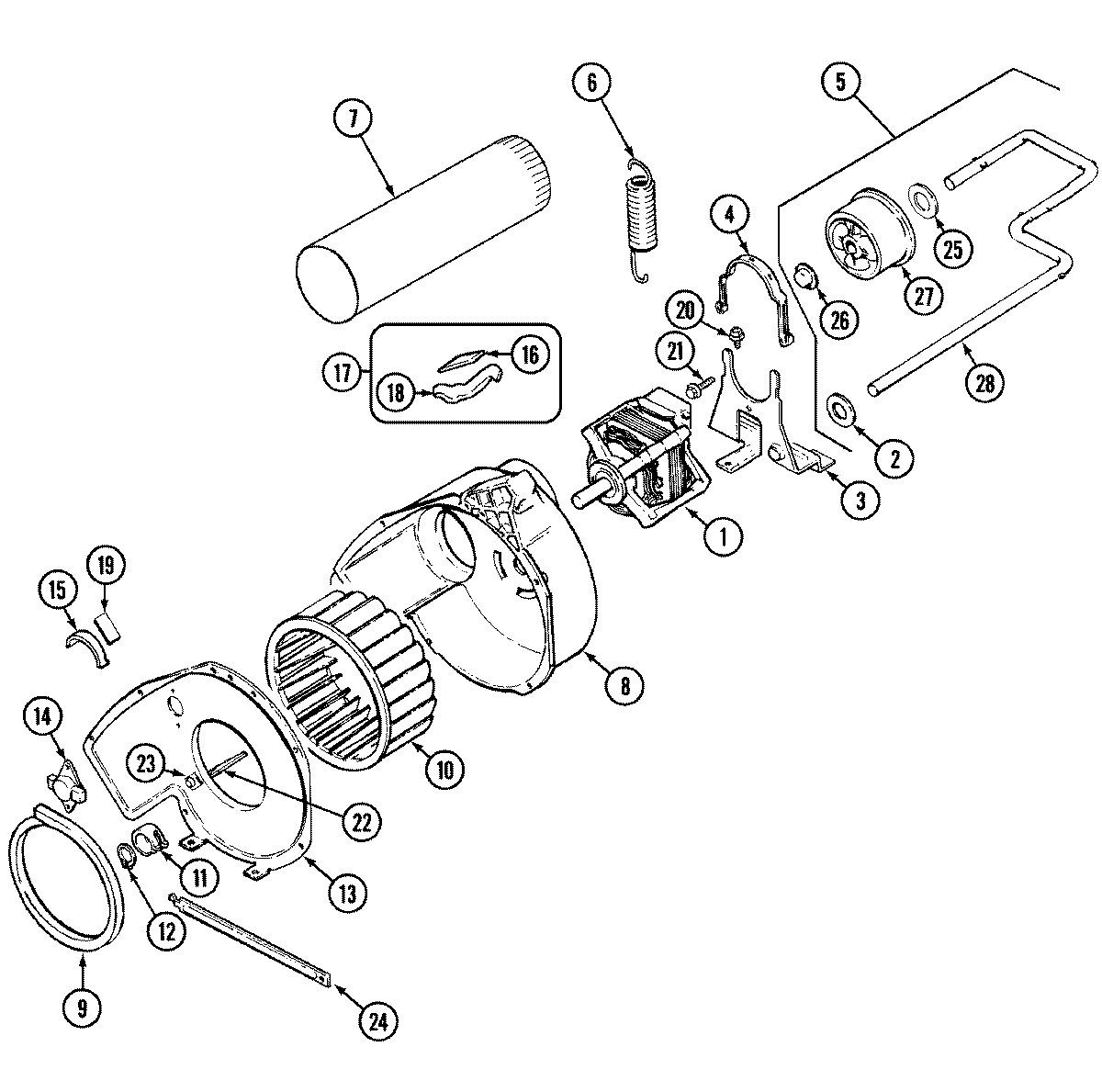

PYE4558AYW 06 – MOTOR & DRIVE

Products

Position	Product
1	W10410996 Whirlpool Dryer Drive Motor
1	WP31001535 Whirlpool Pulley Motor
3	MAY 53-1932
4	WP660658 Whirlpool Clamp
6	31001465 Whirlpool Idler Spring
7	MAY 53-0134
8	MAY 53-1801
9	12001324 Whirlpool Collector Duct
10	WHEEL
11	MAY 25-7823
12	MAY 25-7855
13	SCREW, INLET DUCT ----S
13	MAY 53-1934
14	THERMOSTAT
14	MAY 25-2134
15	WP31001470 Whirlpool Glide Assembly
17	LA-1006 Whirlpool Dryer Right Hand Glide Kit
18	WP31001469 Whirlpool Glide Assembly
19	WP31001356 Whirlpool Glide Pad
20	MAY 25-7963
21	MAY 25-7733
22	MAY 53-1026
23	MAY 25-3457
24	MAY 53-1625
25	MAY 25-7815
26	MAY 25-7957
27	WP31001344 Whirlpool Idler Pulley
28	WP53-2287 Whirlpool Idler Assembly
