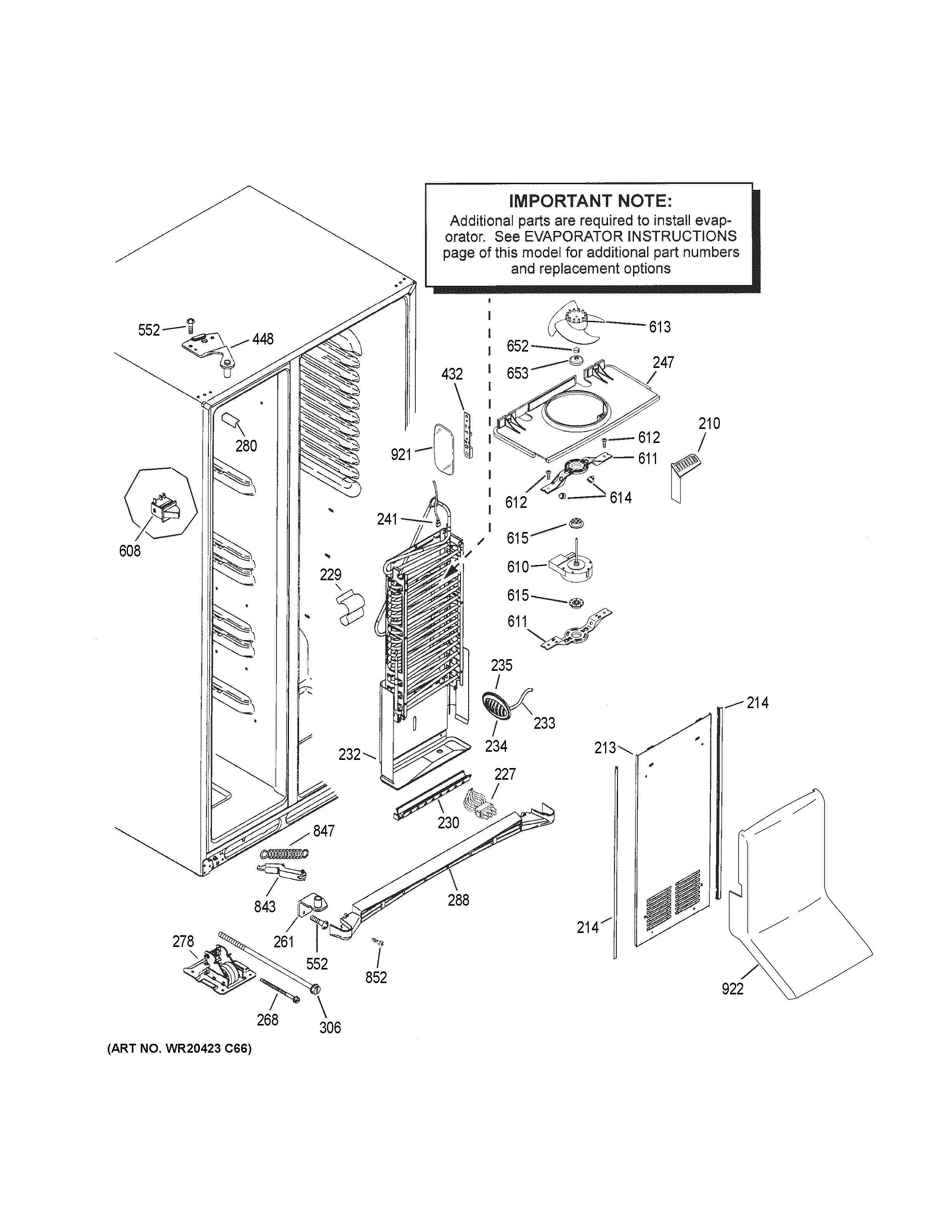

PZS22MMKGHES FREEZER SECTION

PZS22MMKGHES FREEZER SECTION

Written by

in

PZS22MMKGHES FREEZER SECTION

Products

PositionProduct
210WR74X10216 GE Refrigerator Plenum Extension
213WR17X13088 GE Front Evaporator Cover
214WR14X10153 GE Refrigerator Gasket Evaporator Cover
227WR23X25920 GE Refrigerator Harness AC Intermedia
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
247WR17X12642 GE Refrigerator Orifice Fan Assembly
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X13791 GE Refrigerator Corner Cap
288WR74X10270 GE Refrigerator Base Grille
306WR02X12271 GE Refrigerator Mobility Screw
432WR55X26671 REFRIGERATOR LED LIGHT BOARD
448WR13X20430 GE Refrigerator Top Hinge & Pin Assembly
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
608WR23X25635 GE Refrigerator Light Switch
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843LEVER ASM FZ
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
921WR17X12871 GE Refrigerator LED Cover
922TOWER AIR FZ LOWER
